Honeywell HF680 User Manual

80 HF680 Series User Guide

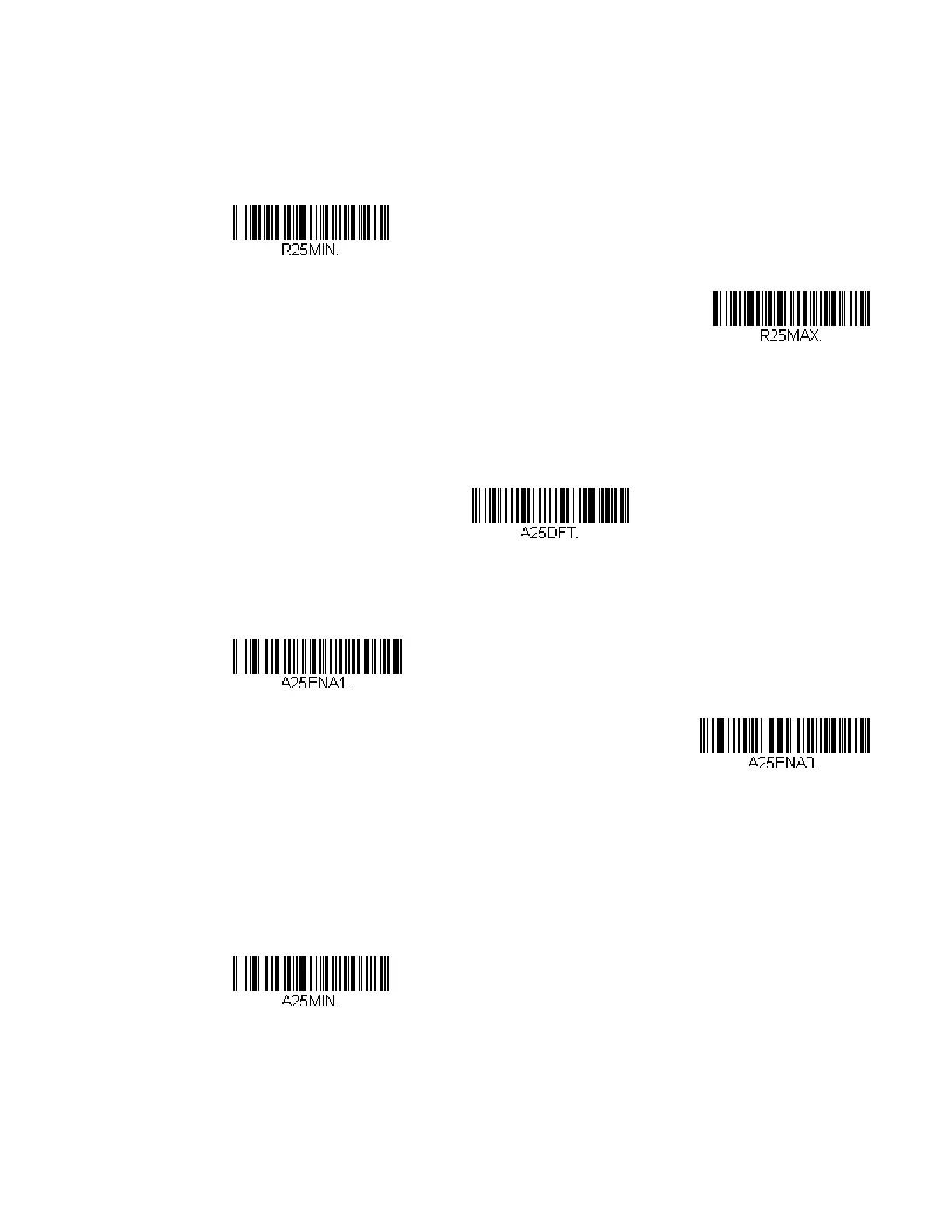

Straight 2 of 5 Industrial Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 68) for additional information. Minimum and Maximum lengths
= 1-48. Minimum Default = 4, Maximum Default = 48.
Straight 2 of 5 IATA (two-bar start/stop)
<Default All Straight 2 of 5 IATA Settings>
Straight 2 of 5 IATA On/Off
Straight 2 of 5 IATA Message Length
Scan the barcodes below to change the message length. Refer to Message Length
Description (page 68) for additional information. Minimum and Maximum lengths
= 1-48. Minimum Default = 4, Maximum Default = 48.
Minimum Message Length
Maximum Message Length
On
* Off
Minimum Message Length

Honeywell HF680 Specifications

General

Scan Pattern	Area Image (1280 x 800 pixel array)
Humidity	0% to 95% relative humidity, non-condensing
Standby Power	0.45 W (90 mA @ 5 VDC)
Light Levels	0 to 100, 000 lux
Decode Capability	Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Interface	USB, RS232, Keyboard Wedge
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Drop	Designed to withstand 1.5 m (5 ft) drops
Input Voltage	4.0 V DC to 5.5 V DC
