158 HF680 Series User Guide
Inspect Cords and Connectors
Inspect the interface cable and connector for wear or other signs of damage. A
badly worn cable or damaged connector may interfere with scanner operation.
Contact your distributor for information about cable replacement. Cable
replacement instructions are on page 158.
Replace Cables
The standard interface cable is attached to the scanner with a 10-pin modular
connector. When properly seated, the connector is held in the scanner’s handle by
a flexible retention tab. The interface cable is designed to be field replaceable.
• Order replacement cables from Honeywell or from an authorized distributor.
• When ordering a replacement cable, specify the cable part number of the
original interface cable.
Replace an Interface Cable
1. Turn the power to the host system OFF.
2. Disconnect the scanner’s cable from the terminal or computer.

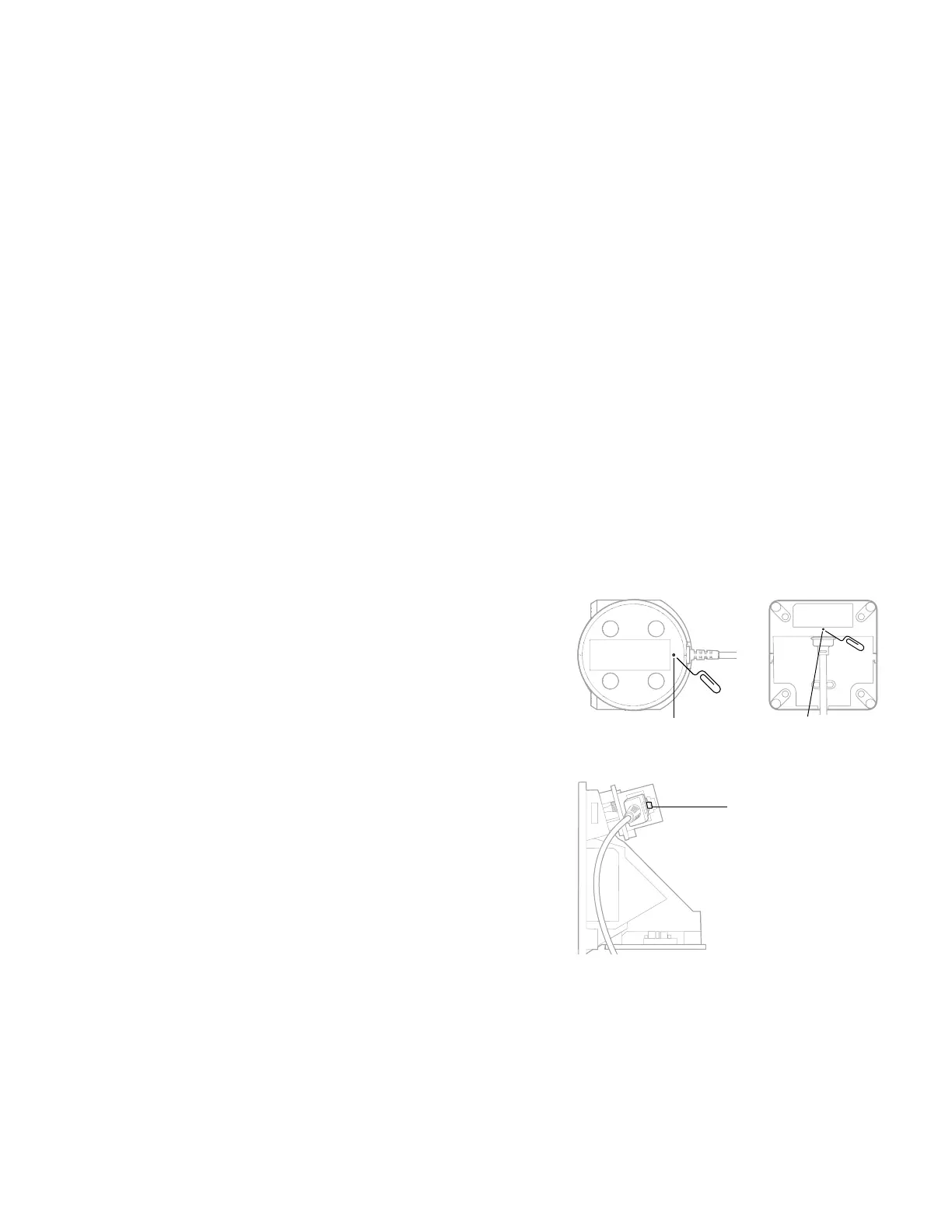

3. Release the cable connector:
HF680 and HF680E:
a. Locate the small hole on the back of
the scanner. This is the cable
release.
b. Straighten one end of a paper clip.
c. Insert the end of the paper clip into
the small hole and press in. This
depresses the retention tab,
releasing the connector. Pull the
connector out while maintaining
pressure on the paper clip, then
remove the paper clip.
HF680M: depress the retention tab to
release the connector, then pull the
connector out.
4. Replace with the new cable.
Insert the connector into the opening
and press firmly. The connector is
keyed to go in only one way, and will click into place.
Cable Release
HF680
HF680E
HF680M
Retention Tab
Cable Release
