Honeywell HF680 User Manual

HF680 Series User Guide 3
3. Verify the scanner operation by scanning a barcode from the Sample Symbols
in the back of this manual.
The unit defaults to a USB PC Keyboard. Refer to page 8 for other USB terminal
settings.
For additional USB programming and technical information, refer to “USB
Application Note,” available at www.honeywellaidc.com.
Connect with RS232 Serial Port
1. Turn off power to the terminal/computer.
2. Connect the appropriate interface cable to the device.
Note: For the scanner to work properly, you must have the correct cable for your type of
terminal/computer.

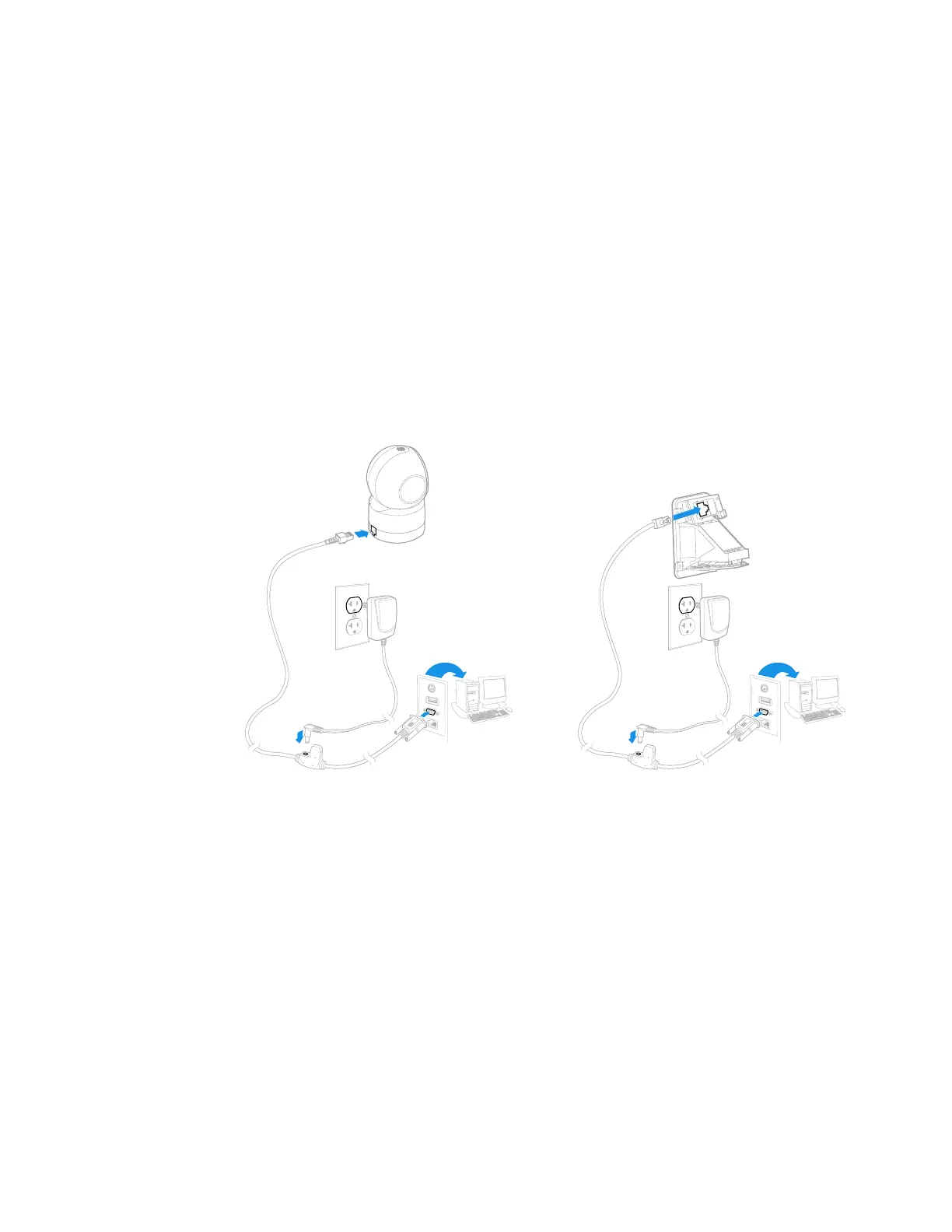

HF680 - RS232 Serial Port Connection: HF680M - RS232 Serial Port Connection:

Honeywell HF680 Specifications

General

Scan Pattern	Area Image (1280 x 800 pixel array)
Humidity	0% to 95% relative humidity, non-condensing
Standby Power	0.45 W (90 mA @ 5 VDC)
Light Levels	0 to 100, 000 lux
Decode Capability	Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Interface	USB, RS232, Keyboard Wedge
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-40°F to 158°F (-40°C to 70°C)
Drop	Designed to withstand 1.5 m (5 ft) drops
Input Voltage	4.0 V DC to 5.5 V DC
