Description
UsermanualforHONR100gaspressureregulatorwithHONP095NGpilot  18


Size Class A
inch
(mm)
B
inch
(mm)
C
inch
(mm)
L
inch
(mm)
Weight*
lbs(kg)
1"
(DN 25)
300
12.21
(310)
9.57
(243)
3.19
(81)
8.50
(216)
60
(27)
1"
(DN 25)
600
60
(27)
2"
(DN 50)
300
16.93
(430)
11.22
(285)
4.33
(110)
11.50
(292)
135
(61)
2"
(DN 50)
600
137
(62)
3"
(DN 80)
300
20.04
(509)
13.78
(350)
4.88
(124)
14.02
(356)
247
(112)
3"
(DN 80)
600
249
(113)
4"
(DN 100)
300
25.16
(639)
16.69
(424)
6.65
(169)
17.01
(432)
408
(185)
4"
(DN 100)
600
428
(194)
6"
(DN 150)
300
36.10
(917)
24.80
(630)
9.57
(243)
22.01
(559)
1100
(499)
6"
(DN 150)
600
1127
(511)
8"
(DN 200)
300
39.69
(1008)
24.80
(630)
10.35
(263)
25.98
(660)
1420
(644)
8"
(DN 200)
600
1486
(674)
*TheHON P095NGpilotusedinthisexampleweighs:17.6 lbs(8 kg).


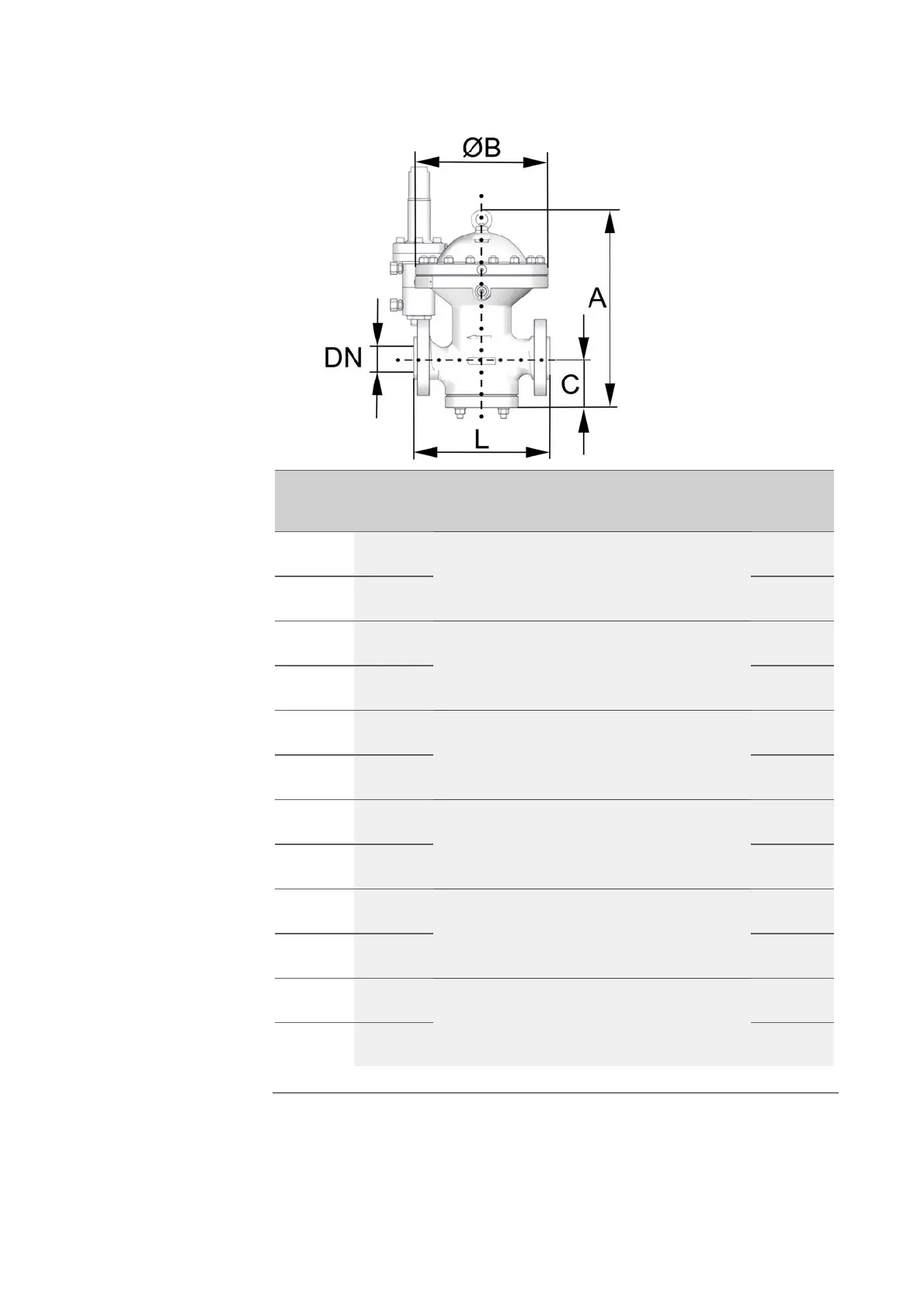

HON R100NGdimensions
andweightswhenusing
HON P095NGpilotasan
example
