LS10143-001SK-E Control Panel Installation
4-12
4. Attach the annunciator and door assembly to backbox as shown in Figure 4-14 using the supplied screws.

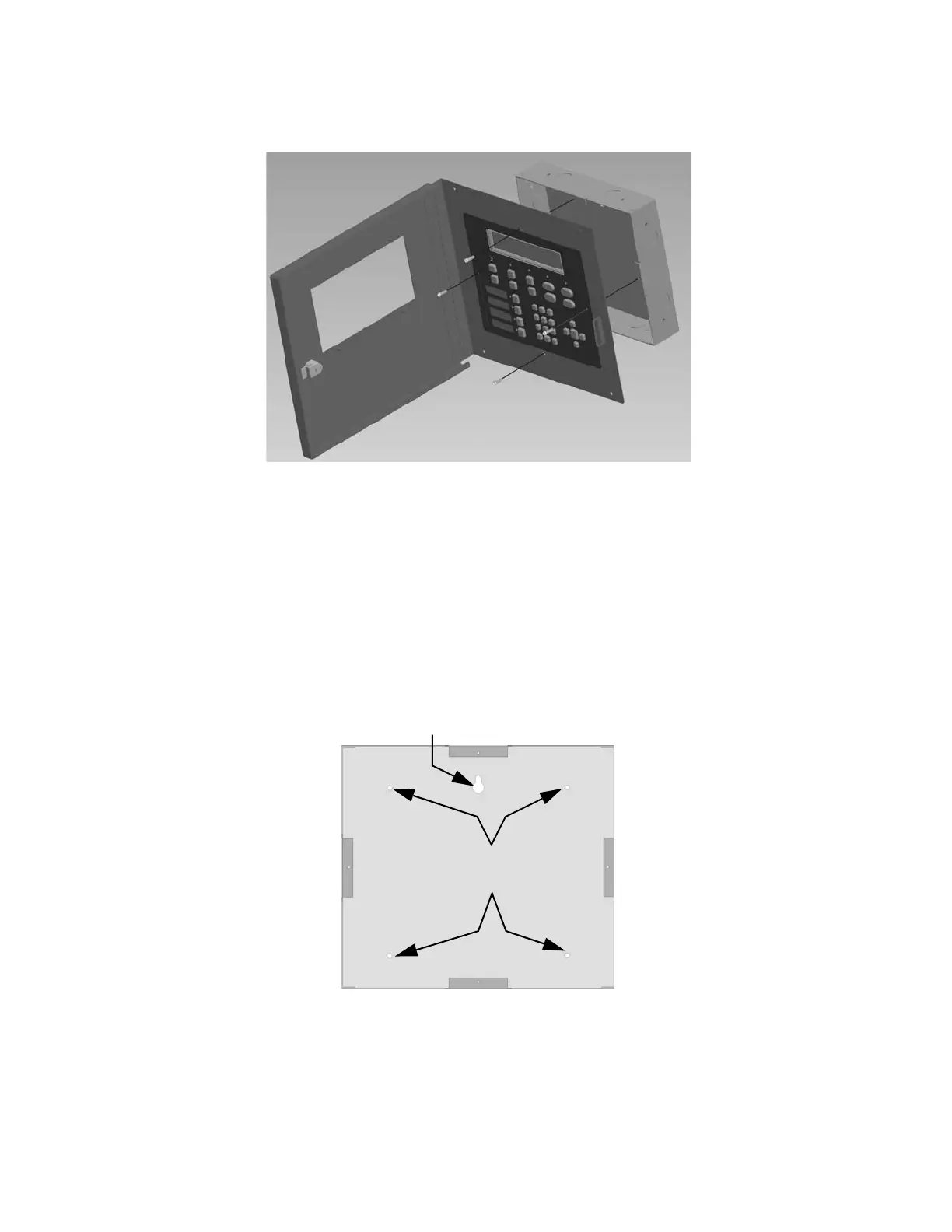

Figure 4-14 Attaching Annunciator / Door Assembly to Backbox
4.5.1.2 Surface Mounting
The Model RA-100TR red trim ring and RA-2000GRAYTR gray trim ring kits are available for use when
surface mounting the RA-2000.
1. Remove the desired knock out. See Figure 4-13.
2. To properly mount the backbox, insert a single screw into the key shaped mounting hole. Do not tighten all
the way. See Figure 4-15.
Place a level on top of the backbox, with the backbox level insert the rest of the mounting screws
.
Figure 4-15 Backbox Surface Mount Holes
3. Run wires to the control panel.
key shaped
mounting hole
backbox
mounting holes
