LS10143-001SK-E Control Panel Installation
4-20
4. Attach the annunciator/ door assembly to backbox as shown in Figure 4-14 using the supplied screws.

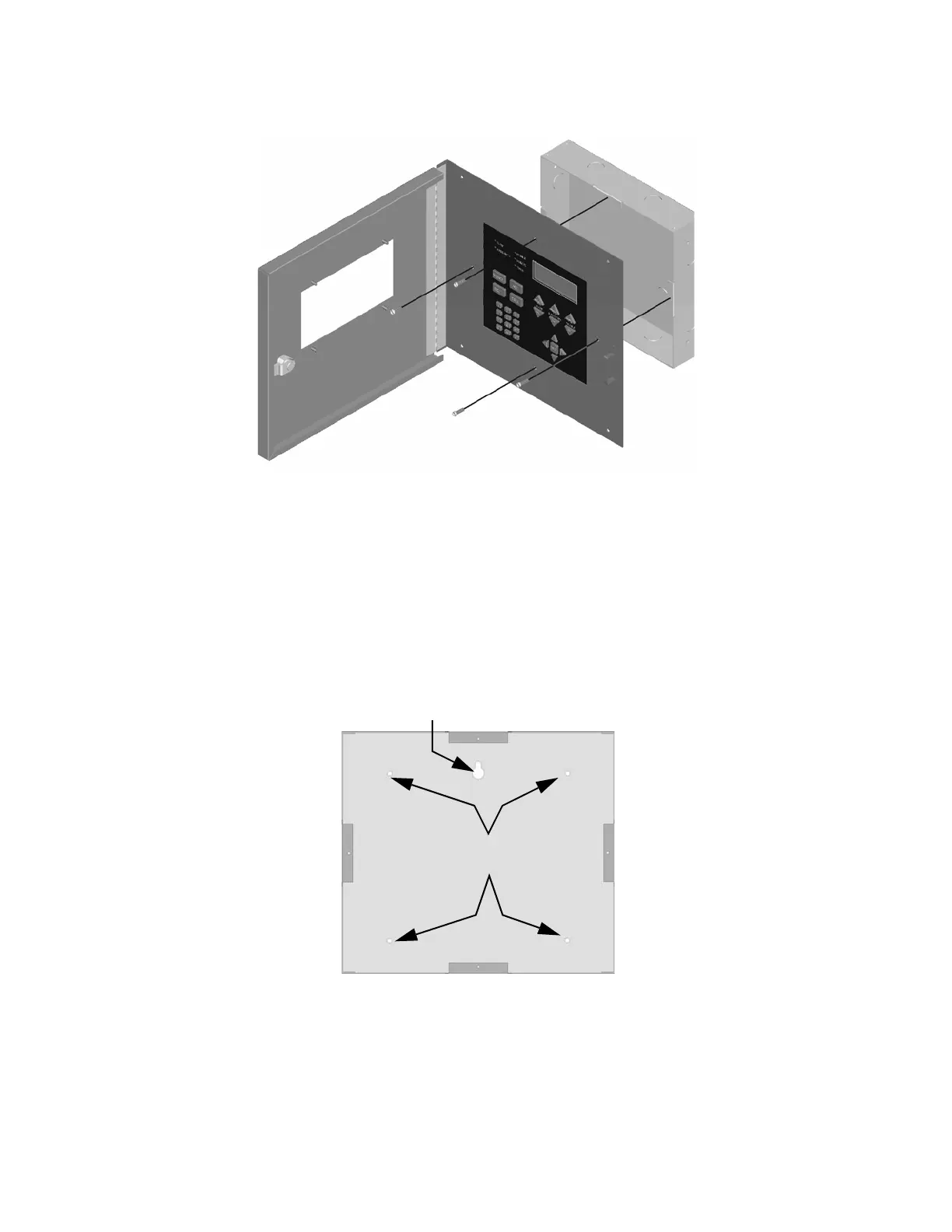

Figure 4-27 Attaching Annunciator/Door Assembly to Backbox
4.7.1.2 Surface Mounting
The Model RA-100TR trim ring kit is available for use when surface mounting.
1. Remove the desired knock out. See Figure 4-26.
2. To properly mount the backbox, insert a single screw into the key shaped mounting hole. Do not tighten all
the way. See Figure 4-28.
Place a level on top of the backbox, with the backbox level insert the rest of the mounting screws.
Figure 4-28 Backbox Surface Mount Holes
3. Run wires to the control panel.
Key Shaped
Mounting Hole
Backbox
mounting holes
