Appendix 9 : Using the e7w CBL32 Registry Viewer/Editor

Use the rEG parameter to view or modify CBL32 Registry Group 9 Thermo/HVAC and Registry Group 7:X:Y input/output in

the HVAC Partner device (i.e. X47) to the e7w.

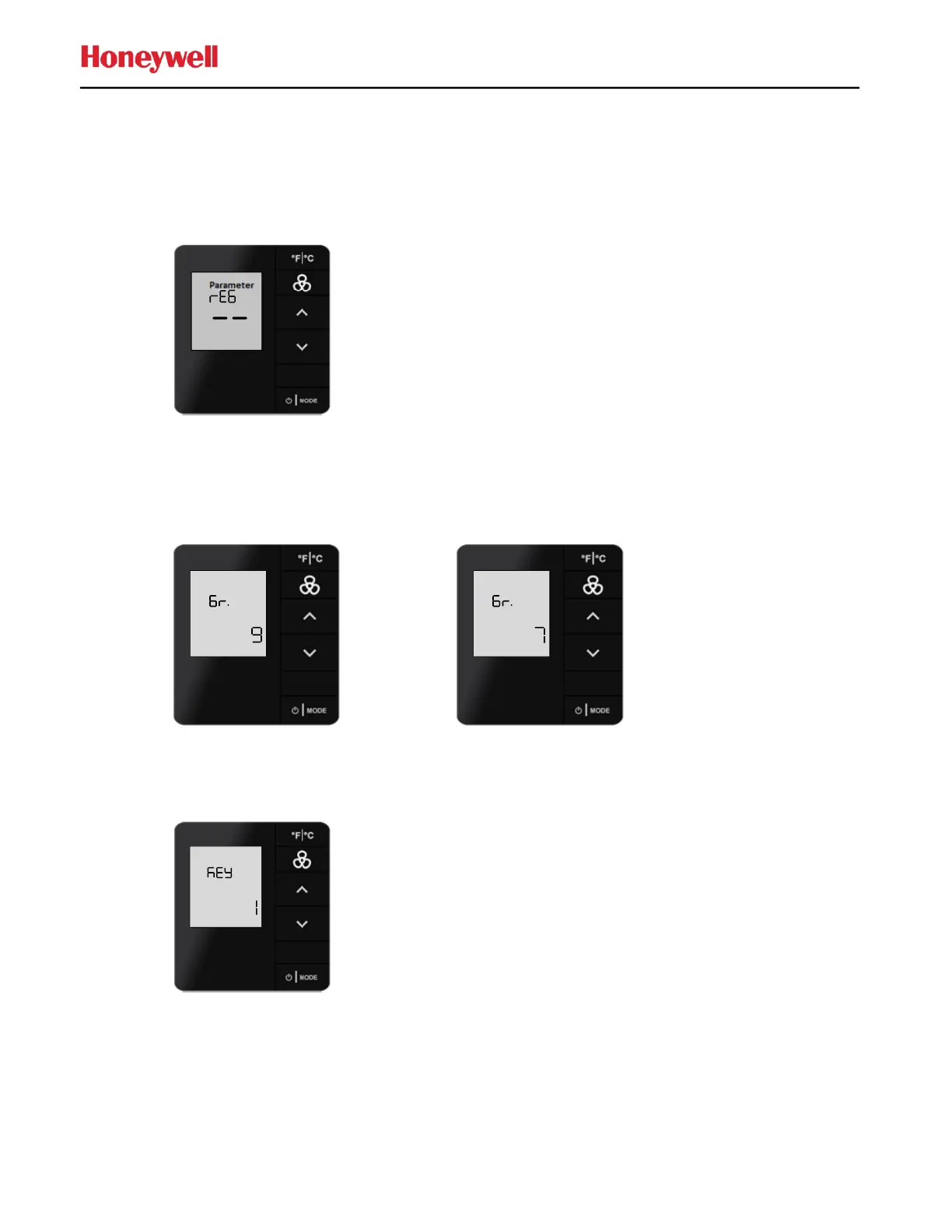

1. Enter SERVICE MODE

2. Use the UP/DOWN arrow buttons to select rEG

3. Press MODE. This action displays Gr (Group) value.

4. Use the UP/DOWN arrow buttons to change the Gr value to the required CBL32 Group.

For example, Group 9 for Thermostat 9: X registries, or Group 7 for 7: X Input/Output registry’s.

5. Press the MODE button. This action displays KEY value (This is the Registry Key value).

6. Use the UP/DOWN arrow buttons to change the KEY value to the required CBL32 Key.

For example, 9:1 - Group 9: Key 1 Occupancy or 7:3 - Group 7: Key 3 Light Output

Table of Contents1
E7W Smart Wall Plate (SWP) Related Issues3
- The E7W Display Shows SWP and You Can't Use the E7W3
- The E7W in a Guestroom Failed , You Have no Replacement or Spare E7W's , and You Want to Replace It with an E7W from a Different Room until You Can Obtain a New E7W5
- The E7W in a Guestroom Failed and You Want to Replace It with a New out of the Box E7W6
- Rebooting the E7W Back to Factory Default Settings7
E7W Display Related Issues8
- E7W Display Just Shows a Single Temperature Value with no Fan Speed or A/C Mode8
- The E7W Displays 2 Dashes ( - - ) and When You Try to Use the E7W There Is Only Rid , Pan and Rf Options Available8
- E7W Display Is Blank8
E7W Battery Related Issues9
- A Battery Symbol Has Appeared in the Lower Right Corner of the E7W Display in One or more Rooms9
- Occurred in IC3 or IC510
- I Replaced the Batteries in the E7W, but There Is Still a Low Battery Indication for the Room in IC3/IC510
E7W Temperature Control Related Issues12
- The E7W Is Not Controlling Room Temperature or Fan Speed12
- You Cannot Change the E7W Displayed Target Temperature, Fan Speed or HVAC Mode and a Warning Triangle Symbol Is Displayed16
- Using the E7W to Read the Status of the HVAC Controller's 5 Output Relays17
E7W Occupancy Detection Issues19
- A Room with an E7W Installed Is Constantly Reporting the Room Is Occupied in IC3/IC5 Even Though no Guest Has Been in the Room19
E7W Door Test Is Failing20
E7W PIR Motion Sensor Test Is Failing21
I am Not Able to Ping One or more Room Devices from the E7W Png (Ping) Menu22
- You Can't Ping any Room Devices from the E7W22
- You Can't Ping One or more Devices but Can Ping some Devices22
The E7W WAN (Wide Area Network) Test Is Failing24
There Is a Demanding or Important Guest that Wants to be Able to Set Room Target Temperature to a Higher or Lower Value than What Is Currently Selectable on the E7W25
Appendix 1: Setting the Room ID, PAN ID and RF Channel into the E7W During Initialization26
- Setting the Room ID During Initialization26
- Setting the PAN ID During Initialization27
- Setting the RF Channel During Initialization28
Appendix 2: Reading or Setting the Room ID, PAN ID and RF Channel into the E7W after It Has Been Initialized29
- RID - Setting E7W Room ID (Rld)29
- PAN - Setting E7W Pan ID (Pan)31
- RF - Setting E7W RF Channel (Rf)31
Appendix 3: Using the E7W Ping Feature31
Appendix 4: Using the E7W Process Image Viewer34
Appendix 5: Setting the E7W "PA" Partner Address36
Appendix 6: Using the E7W Bau (Battery Level) Parameter37
Appendix 7: Using the E7W WAN Test38
Appendix 8 : Using the E7W PING Test39
Appendix 9 : Using the E7W CBL32 Registry Viewer/Editor41
Appendix 10: Using the E7W Door Test45
Appendix 11: Adjusting the E7W PIR Motion Sensor Sensitivity47
