Appendix 11: Adjusting the e7w PIR Motion Sensor Sensitivity

Use the PFt parameter to adjust the sensitivity of the e7w built in PIR motion sensor.

1. Enter SERVICE MODE

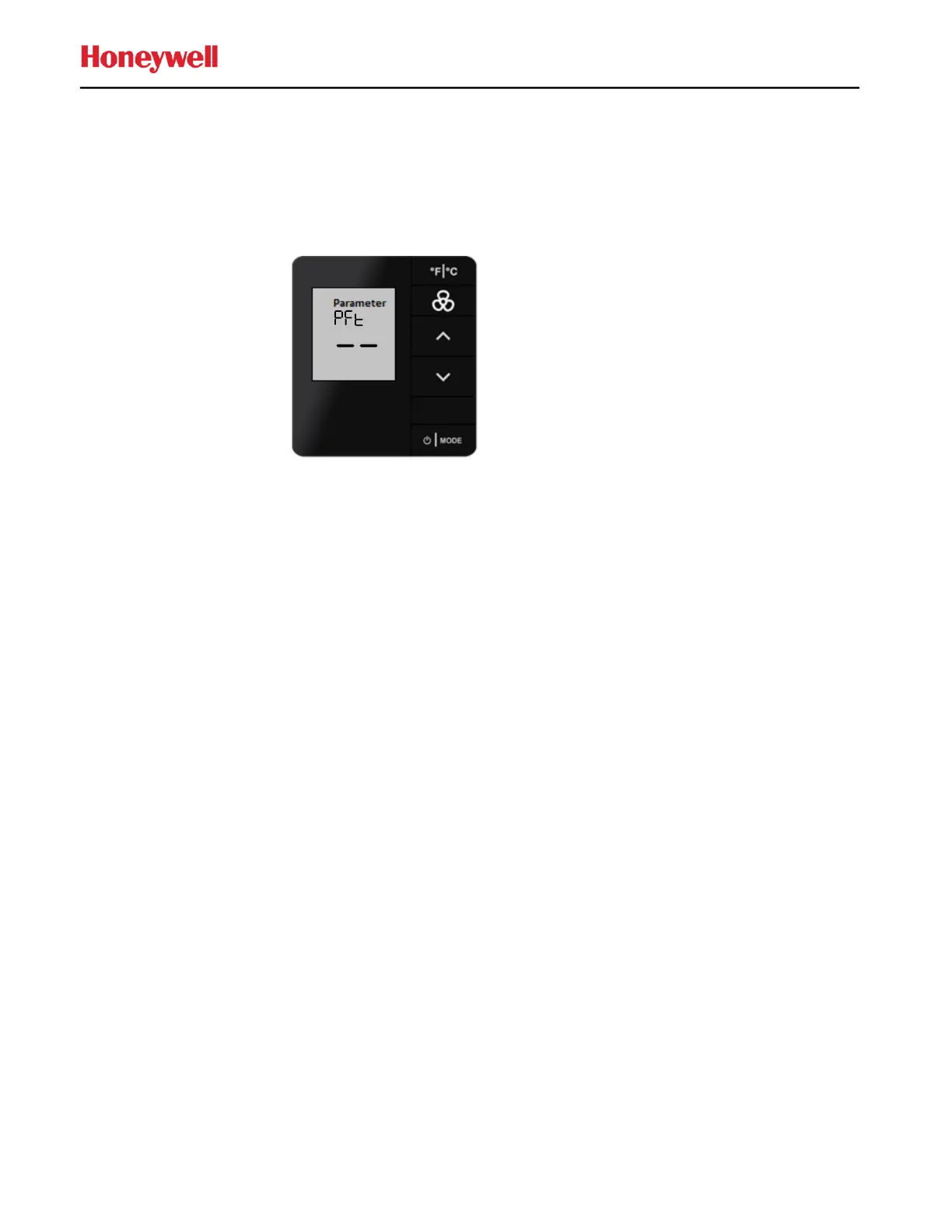

2. Press UP/DOWN arrow buttons to select PFt

3. Press MODE to view the value. The value can between 1 and 4.

1 - Disable PIR filter and apply no filtering to the signal from the PIR sensor.

2 - Report detected motion only after 2 PIR sensor detections occur.

3 - Report detected motion only after 3 PIR sensor detections occur.

4 - Report detected motion only after 5 PIR sensor detections occur.

Use the Up / Down arrow buttons to select the desired value.

4. Press the FAN button to store the change. The e7w will beep

5. Press the FC button to exit SERVICE MODE
