MA-2000
18 M-167.1-MA2000-EN / 06.2022
6 SYSTEM COMPONENTS
MA-2000 is equipped with:
PSU board AW80PP1 to connect the main.
Front board AW80FR0 that include LCD display 7" / 17,78 cm and the slot “Buttery Buffer RTC”.
Main connection board AW80US0 that includes connectors to front board and batteries.
System Setting Battery Backup
Place the battery model CR 1632 (3 V) included with panel on the CPU board AW80FR1 in the slot “Buttery Buffer
RTC” as shown in the figure. This battery is used as auxiliary backup for the real time clock circuit.
At the start-
up of the system, it is necessary to program the date and time (for more details refer to
commissioning manual M-167.2-SERIE-MA-xx).

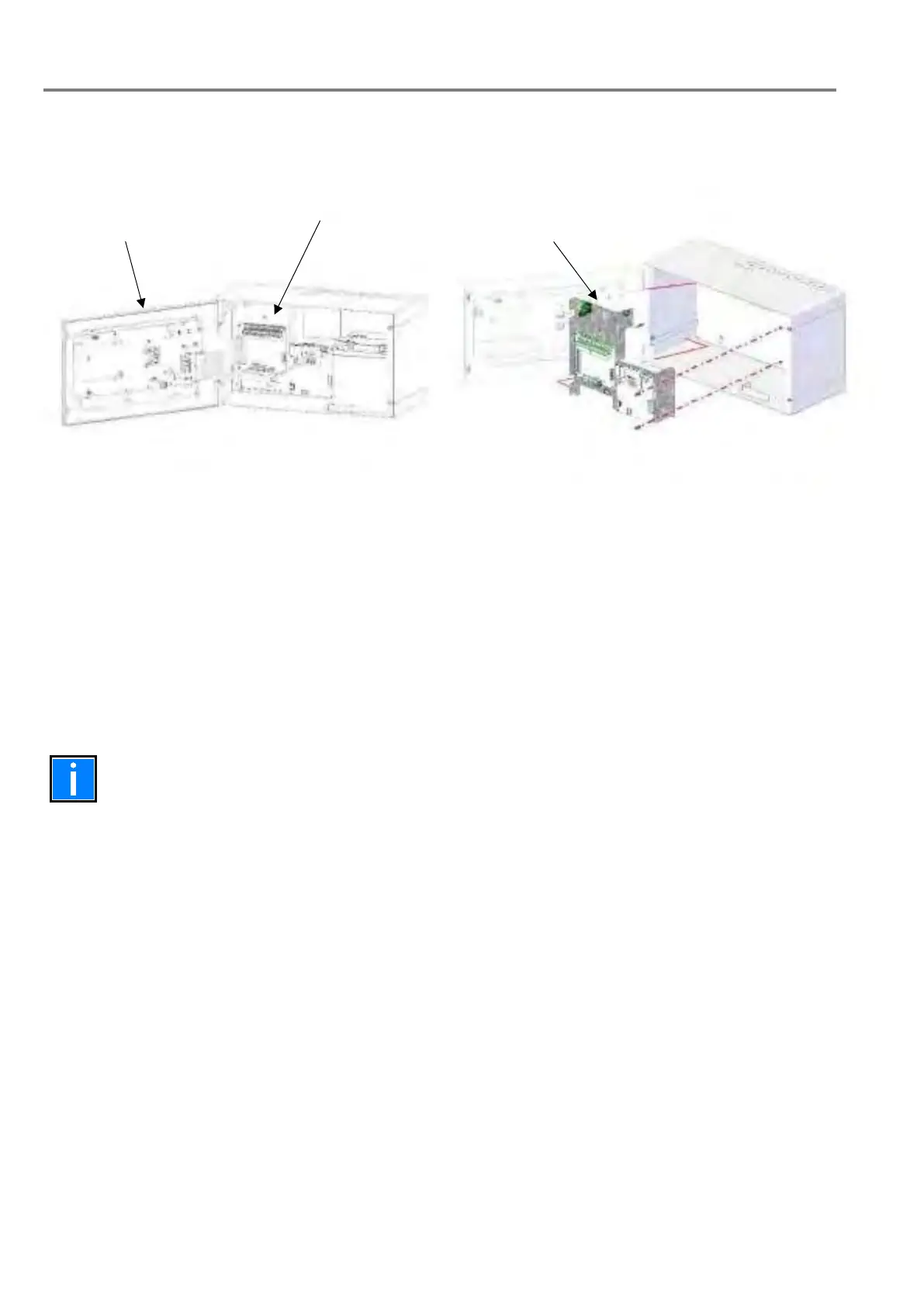

AW80FR0
AW80PP1
AW80US0
