Honeywell MA-2000 User Manual

MA-2000
M-167.1-MA2000-EN / 06.2022 19

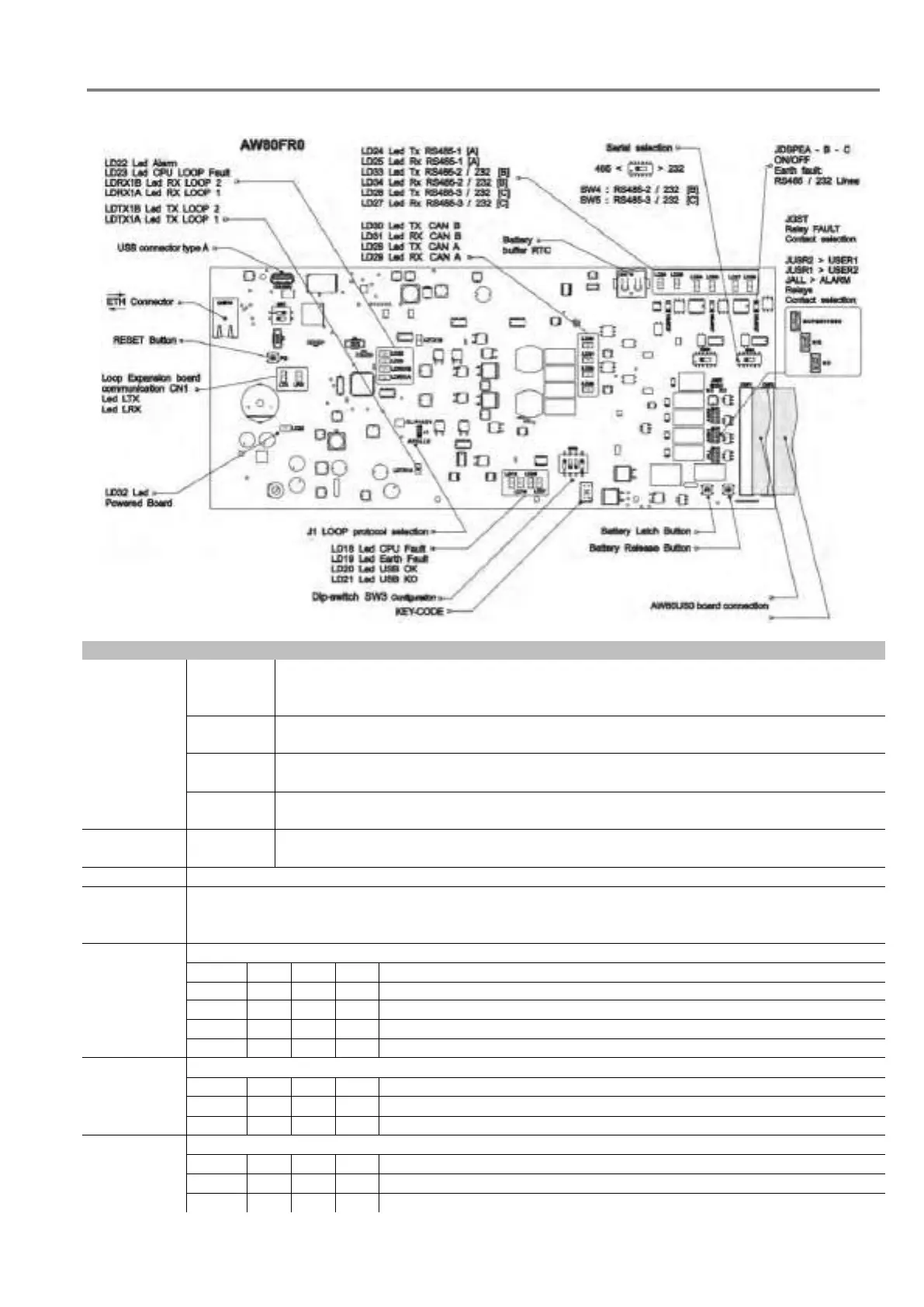

6.1 MA-2000 CPU Board
Board Setup
Earth
Dispersion
JDSPE
Jumper housed on AW80Usx. Removing the JDSPE jumper causes the control panel
to ignore a ground fault on the control panel circuits, loop lines, and isolated CanBus
lines.
JDSPEA
Removing the JDSPEA jumper causes the control unit to ignore an RS485-1 ground
fault (isolated).
JDSPEB
Removing the JDSPEB jumper causes the control unit to ignore a RS485/RS232 -2
ground fault (isolated).
JDSPEC
Removing the JDSPEB jumper causes the control unit to ignore a RS485/RS232 -3
ground fault (isolated).
Clip / HON
Protocol
J1 Clip: Set J1 to position 2-3 HON: Set J1 to position 1-2
Fault Relay
Possibility of NO/NC contact selection through JGST
Relay Alarm,
User1 and
User2
Possibility of selection for each relay: potential-free contact NO/NC or as controlled output with
47 KΩ, 5 % balance or diode termination, via JALL, JUSR1, JUSR2
DIP SW3
Firmware Update
1
2
3
4
OFF
OFF
OFF
OFF
Normal Operating setting
ON
OFF OFF OFF
Copy the configuration in the USB memory key
ON
OFF OFF
ON
Restore factory configuration
ON
ON
ON
ON
from USB memory key loads configuration previously prepared by PK SW Tool
DIP SW4
Configuration Serial Port 3
1
2
3
4
ON
ON
OFF OFF
Serial Port 3 type RS232
OFF OFF
ON
ON
Serial Port 3 type RS485
DIP SW5
Configuration Serial Port 2
1
2
3
4
ON
ON
OFF OFF
Serial Port 2 type RS232
OFF OFF
ON
ON
Serial Port 2 type RS485
