11.3 MA-2000-0x Flat Cables Set (SKU 5000.00.005)
Preparation
Be sure to follow the instructions 1 – 8 under "Preparation" in chapter 11.1!
1. Unplug all flat cable + from the board .
2. If necessary, the battery probe can be replaced at the same time.
Unplug the old probe from the connector and plug on the new probe see chapter 11.1.
Reinstallation

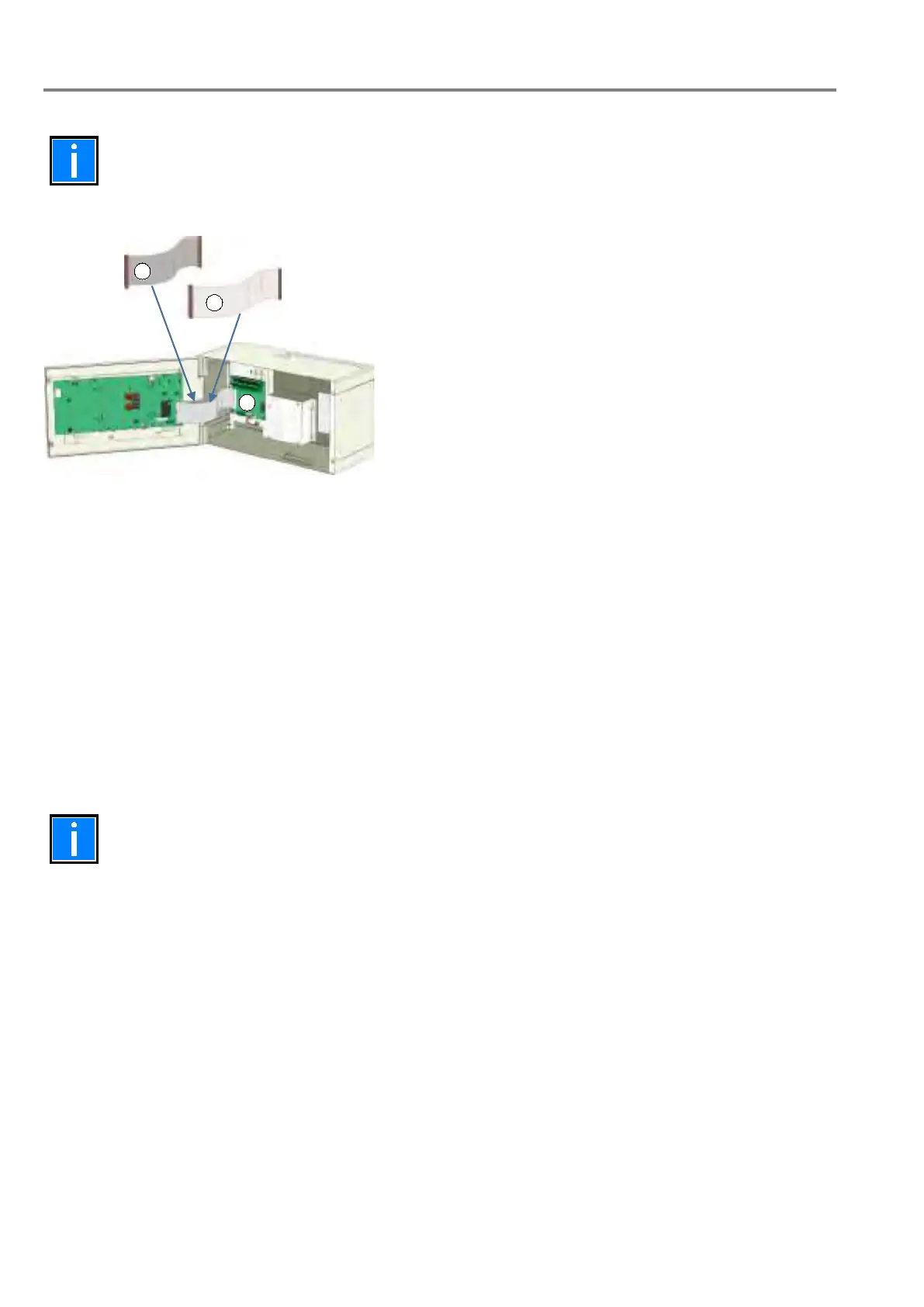

3. Replace the existing flat cables with the new flat cables.
4. Follow the instructions in this chapter in reverse order, then follow the preparation instructions in chapter
11.1 in reverse order to step 4.
5. Turn on the switch from the electrical cabinet to connect the main power to the panel.
6. Plug the battery cables to the batteries and close the front panel door with the 2 screws see chapter 11.1.
Recommissioning
After completing the recommissioning, perform a complete function test of the system!
