Honeywell miniMAX User Manual

Rev. 1.0 6 900.0688
9-Dec-05
3.1 CONNECTING THE DEVICES, CONTINUED

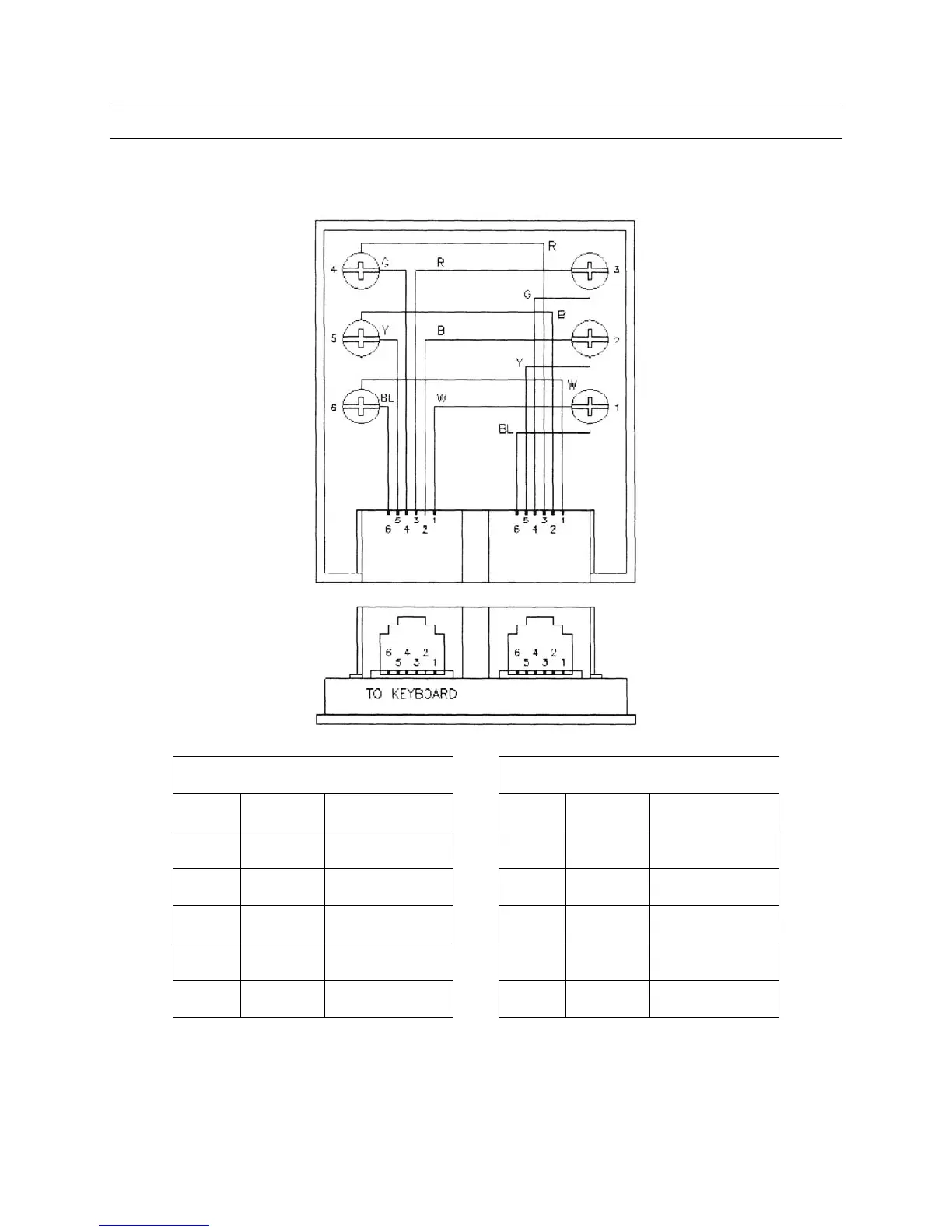

RJ11 TWO-WAY JUNCTION BOX
Drawing MG10075
TO HMXAT200
Keyboard RJ11 Connector HMXAT200 RJ11 Connector
Pin 1 White 12V Pin 1 White Power Ground
Pin 2 Black NC Pin 2 Black TX
Pin 3 Red TX Pin 3 Red Signal Ground
Pin 4 Green Signal Ground Pin 4 Green RX
Pin 5 Yellow RX Pin 5 Yellow NC
Pin 6 Blue Power Ground Pin 6 Blue 12V
