Rev. 1.0 7 900.0688
9-Dec-05

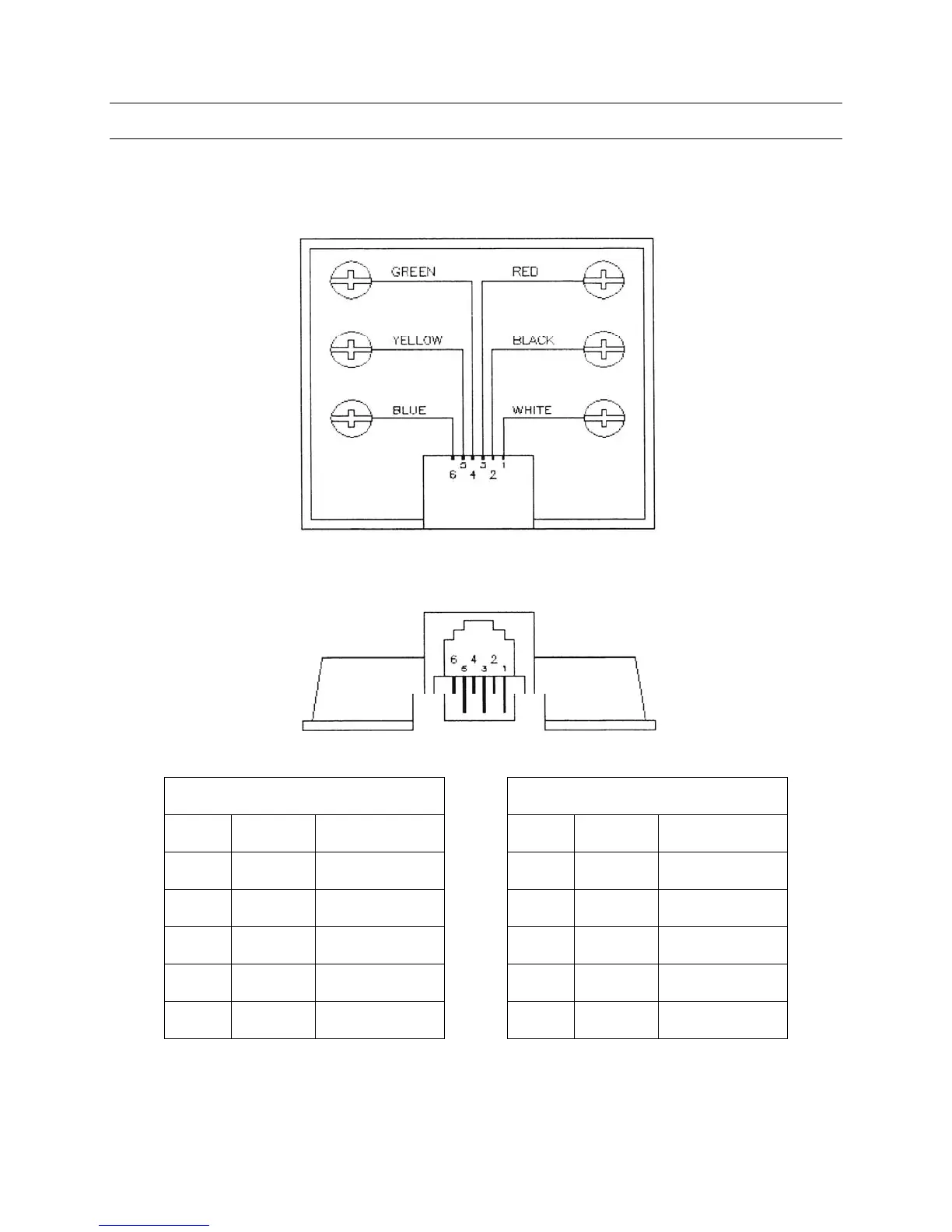

3.1 CONNECTING THE DEVICES, CONTINUED
RJ12 TERMINAL BOX
PIN CONNECTIONS
Drawing MG10023
RJ12 D15
Pin 1 White 12V Pin 8 12V
Pin 2 Black NC NC
Pin 3 Red TX Pin 3 TX
Pin 4 Green Signal Ground Pin 5 Signal Ground
Pin 5 Yellow RX Pin 2 RX
Pin 6 Blue Power Ground Pin 15 Power Ground
