ID3000 Series Installation & Commissioning Manual
Commissioning
44997-274-000-6, Issue 6
September 2009
7 Commissioning
7.1 Introduction
To bring the panel into an operational state ready for
configuration, follow the steps detailed below. Information
on how to configure the panel is given in the ID3000
Series Panel Configuration Manual (ref. 997-506-XXX).
The ID3000 Series panels provide comprehensive fault
monitoring and diagnostic routines which will prove very
useful during commissioning of the system. The
diagnostic messages, which are displayed on the LCD,
are listed in Appendix 1.
The following must be remembered about FAULT
conditions when commissioning the ID3000 Series
control panels.
Faults can result from:
a. A configuration mismatch between the installation
design and panel set up, or
b. External conditions, such as the proximity of a strong
RFI source, having an adverse affect on the panel, or
c. The failure of a panel module, such as the PSU or
Processor PCB.
Appendix 1 provides guidance to assist you in identifying
faults that fall into the categories described above.
7.2 Preliminary Checks
Before initial power connection, check that:
1 All circuit boards are correctly fitted.
2 All internal wiring connectors are properly mated.
3 The loop wiring and external output circuits have NOT,
at this stage, been connected.
4 Output circuits 3 and 4 are configured as relays if so
required.

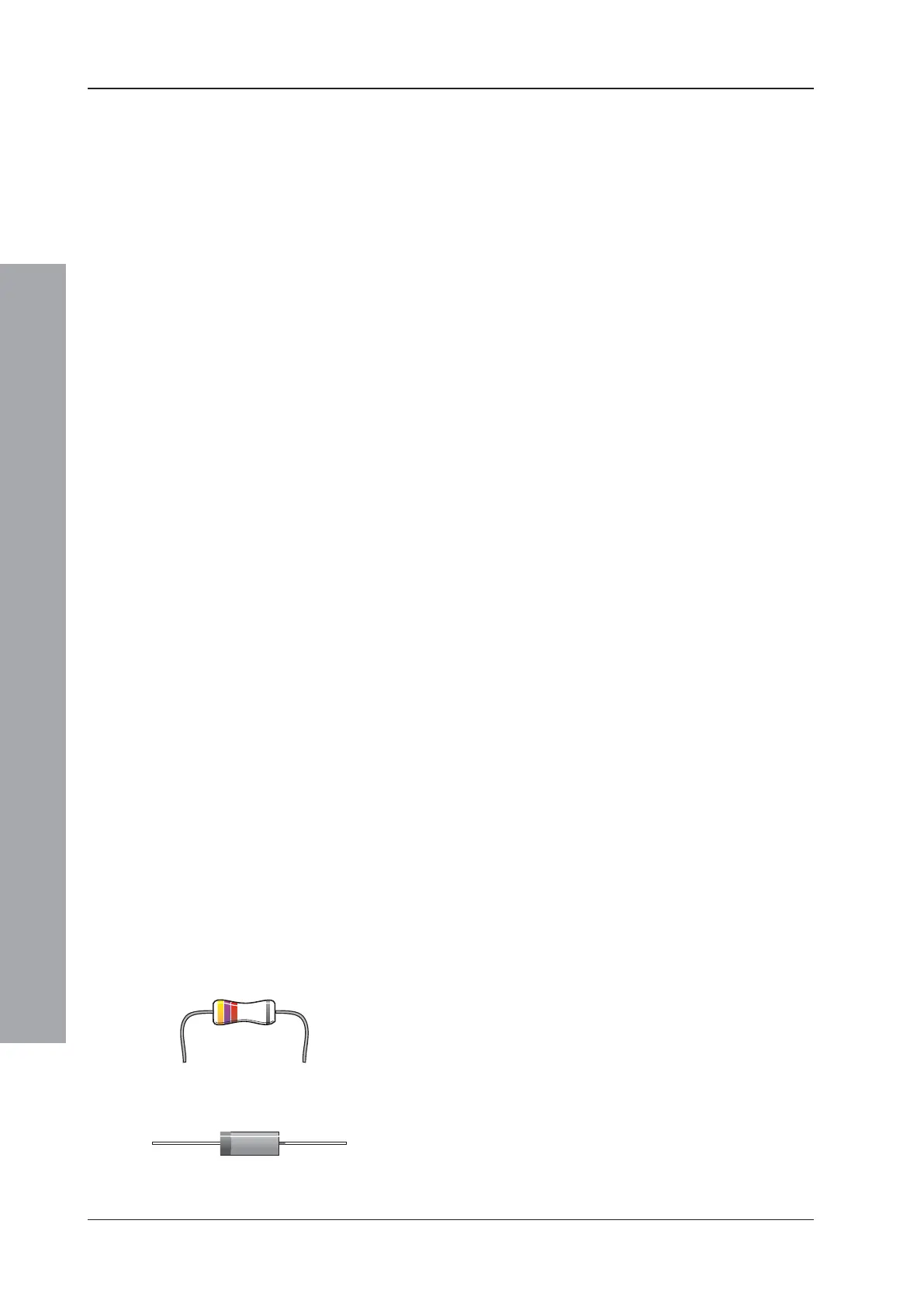

5 The appropriate end-of-line devices are connected
to the sounder outputs. For backwards compatibility,
the default is set (jumper link fitted to JP11 on the
left-hand edge of the Base PCB) for 4k7 resistor end-
of-line devices. However, if the requirements of EN54-
13 (this requires the ability to monitor for partial-open
and partial-short circuit faults) these resistors are to
be replaced by diode end-of-line devices*. To change
the panel default from resistor to diode the link needs
to be removed from JP11.
* A diode is provided for each sounder circuit should
this option be required.
