ID3000/ID2000 Fire Panel Configuration Tool Manual
Control Matrix
4 - 31 997-291, Version 3.05
November 2010
INPUT OUTPUT DELAY
Any Zone All Sounders Sounder Delay
30s (Extendable)
Any Zone All Sounders Sounder Delay
10 minutes
Example Sounder Delay (Extendable)
In this example, if EXTEND DELAY (ID3000) or
ACCEPT (ID2000) is not pressed within 30 seconds
the sounders operate after that time. If EXTEND
DELAY/ACCEPT is operated within 30 seconds, the
sounders operate after 10 minutes. Both rules are
cancelled by SILENCE SOUNDERS or RESET.
Note: Any Sounder or Sounder/Relay circuits
that are configured as Remote Fire
Outputs will not be delayed; the Day
Mode function (Section 2.9) must be
used to delay Remote Fire Outputs.

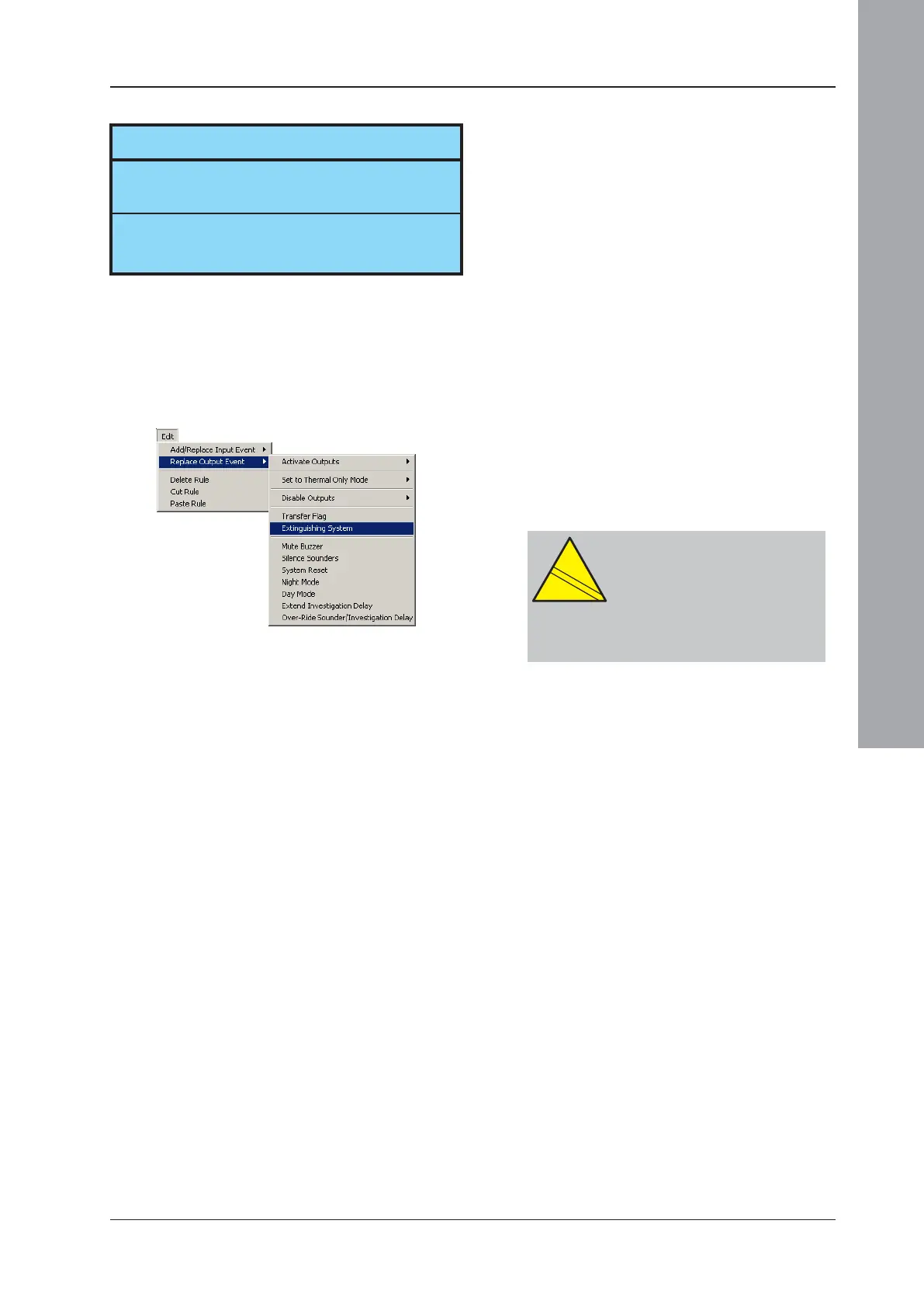

Extinguishing System
The available options depend upon whether
the Input is Alarm or Non-Fire Activation -
see the following pages for further information.
CAUTION:
This product is not compliant
with EN 12094-1.
EN
12094-1
!
Fire extinguishing installations in
Europe are required to be certified as
compliant to this standard.
To Next Page
