ID3000/ID2000 Fire Panel Configuration Tool Manual
Loop Devices
3 - 5 997-291, Version 3.05
November 2010
3.2 Edit Device
Detailed information is given for sensors. For
modules, most of the parameters are edited
in the same manner as for sensors, therefore
only the differences are described.
3.2.1 Sensors

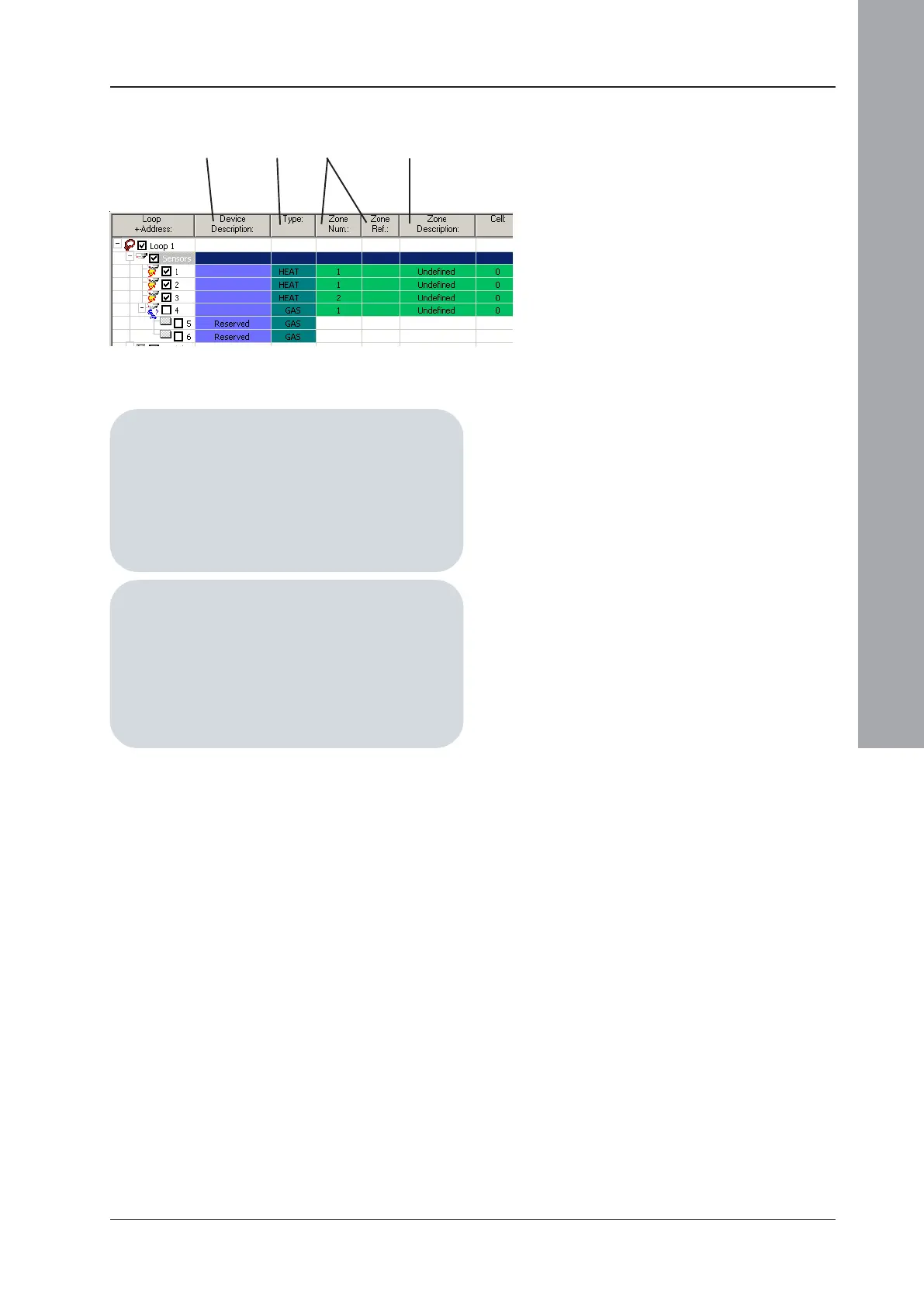

1 Device Description. Enter the device text
if required (ID3000 maximum 32 characters,
ID2000 maximum 40 characters).
2 Type. From the drop down list, select the
required device.
3 Zone Number. Enter the required number
(the range depends upon the Panel and Zone
types selected on the Specification Tab
[Section 2.1]). For network zones, enter the
device Reference Number (see opposite).
4 Zone Description (ID3000 only). Enter the
zone text (maximum 32 characters). This
text is automatically displayed on the Edit
Local Zone Descriptions window
(Section 1.5.9); subsequent edits on that
window are automatically reflected here.
NETWORK ZONES - DEVICES
VdS only: Max. of 10 MCPs or 32 other
devices per zone. MCPs cannot be mixed
with other device types. Devices are given a
reference number within the zone, range 1-10
(MCPs) or 1-32 (other device types).
Standard only: Max. of 99 devices per zone,
each with a reference number in range 1-99.
1234
GAS SENSOR INTERFACES IIG1 & IIG4
IIG1 requires three consecutive sensor loop
addresses; the lowest is type GAS and the others
are reserved. Depending upon configuration of
the device itself, IIG4 requires up to four
consecutive type GAS sensors to be inserted,
each using three consecutive addresses.
