ID3000/ID2000 Fire Panel Configuration Tool Manual
Control Matrix
4 - 1 997-291, Version 3.05
November 2010
4 Control Matrix Configuration
4.1 Introduction
The Control Matrix defines which outputs
activate in response to a defined event (e.g.
alarm) at specified inputs. This is also known
as Control-by-Event (CBE).

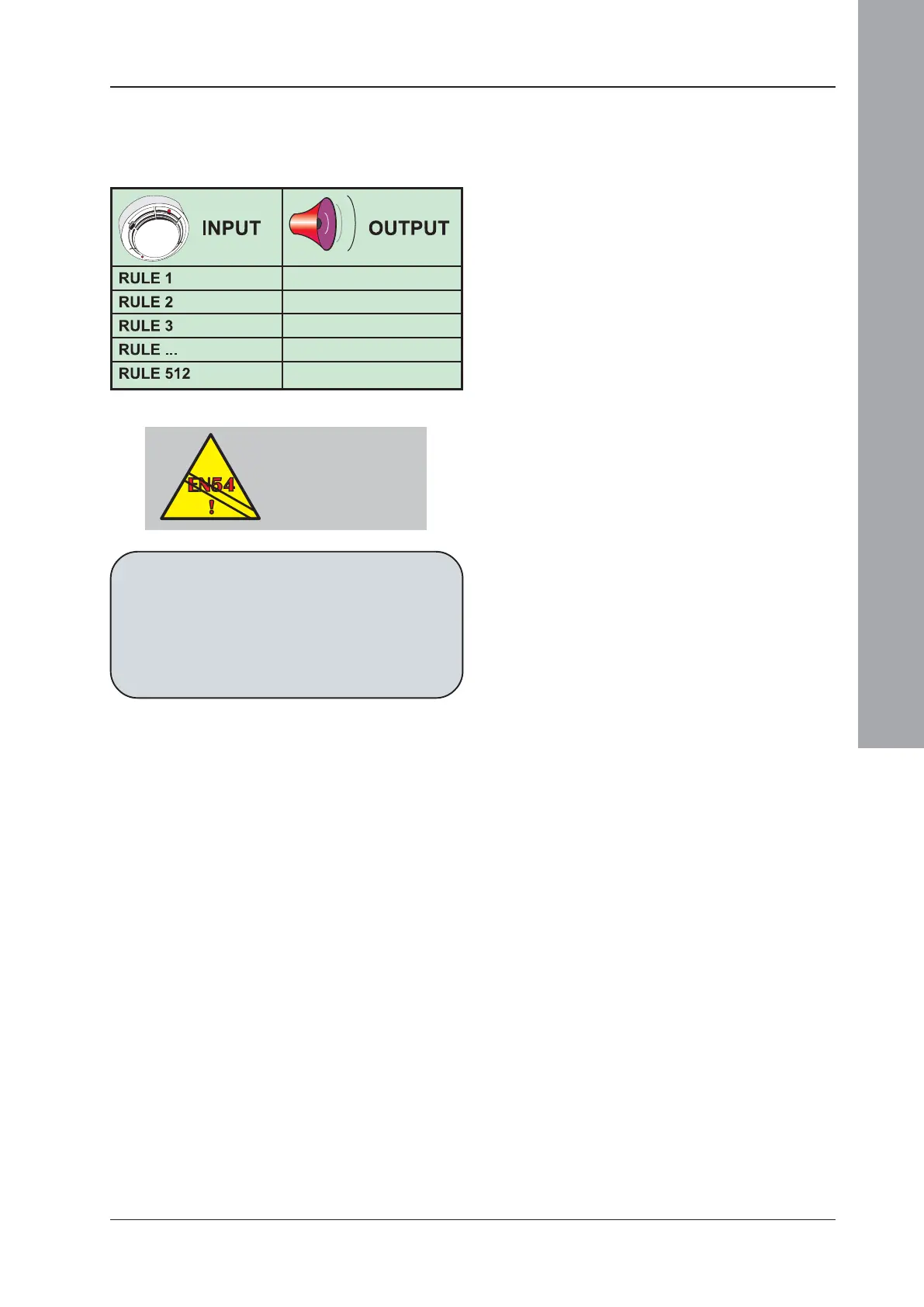

The Control Matrix can have up to 512 entries
(Rules). Each Rule consists of an input event
statement and an output event statement.
4.1.1 EN54 Requirements
To ensure compliance with the requirements of
EN54, each panel is factory-configured with two
default Rules. These may not be appropriate
for your installation. However, if you delete either
or both defaults it is then your responsibility to
ensure that the installation remains
EN54-compliant.
It is your
responsibility to
ensure compliance
with EN54-2.
Default Rules are:
INPUT: Any Zone
OUTPUT: All Zones, Bell
INPUT: EVACUATE pushbutton
OUTPUT: All Zones, Bell
