ID3000/ID2000 Fire Panel Configuration Tool Manual
Network
6 - 14 997-291, Version 3.05
November 2010

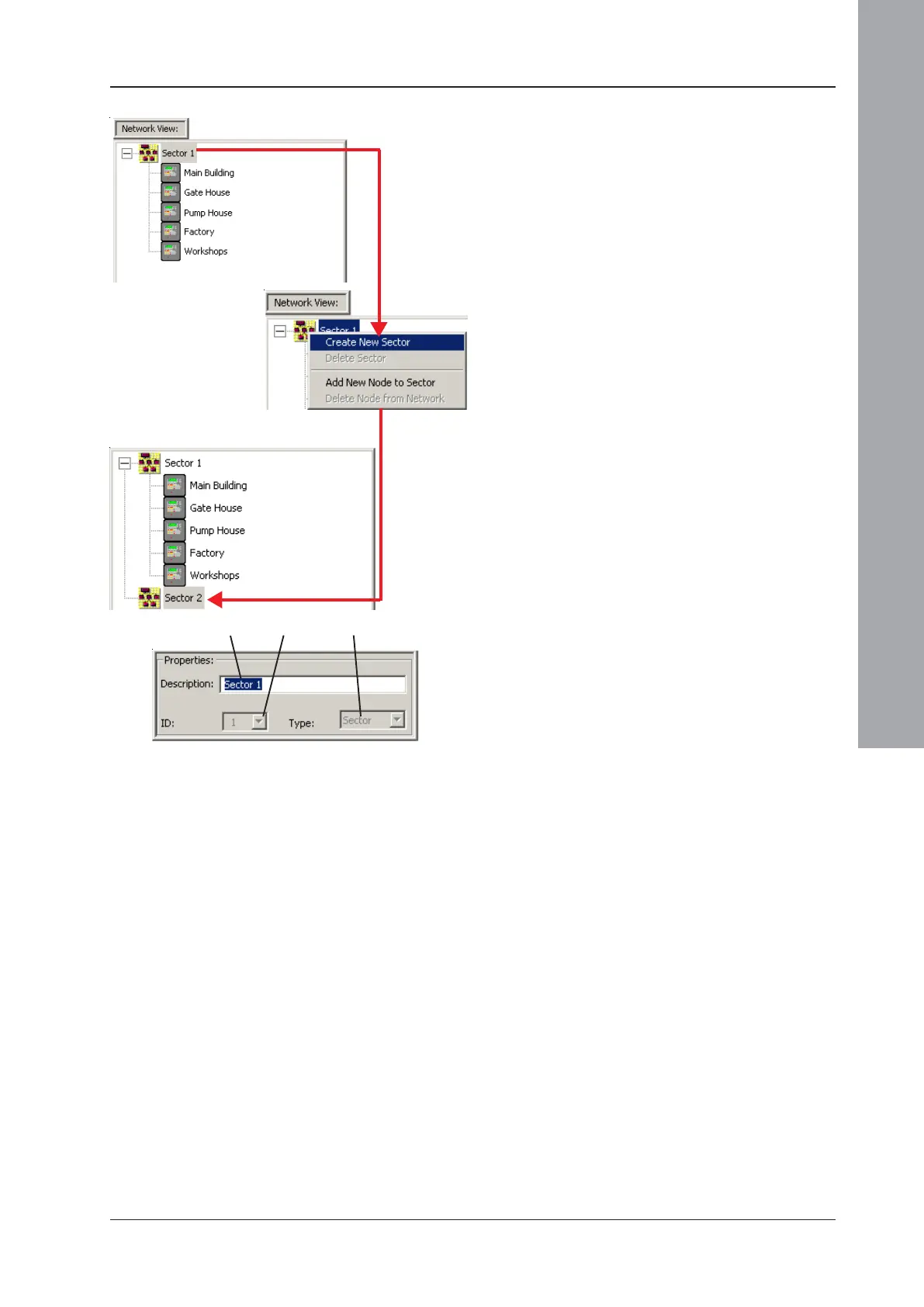

Network View
Initially, all panels and repeaters are allocated
to sector 1, but this can easily be changed.
3 To add another sector right-click anywhere on
the ‘Sector 1’ line and select the ‘Create New
Sector’ option. The newly-created sector is
added to the bottom of the network tree. All
the relevant information about the new sector
is displayed in the Properties box below. The
new sector will take the next available ID
number, in this example ‘2’ with the ‘Type’
identified as ‘Sector’ in the Properties box -
this is greyed out as it cannot be changed.
However, the sector name and ID number may
be edited as follows:
a. To change the sector description, highlight the
default text and type a new name for the sector
(a maximum of 32 characters is permissable).
b. To change the sector ID, use the spin button
to select another ID from the drop-down list
- only unused ID numbers will be shown (a
maximum of 63 sectors are permissable).
Moving a Node
To move a node from one sector to another just
simply select the node (panel or repeater) and
‘drag and drop’ it to the desired sector.
3b 33a
