20 www.honeywell.com
PW-6000 Installation
System Configuration via Web Interface
4.4 Network Settings
Click the Network link on the navigation bar to display the Network Settings screen
where you can select the appropriate option button for dynamic or static IP address
configuration:

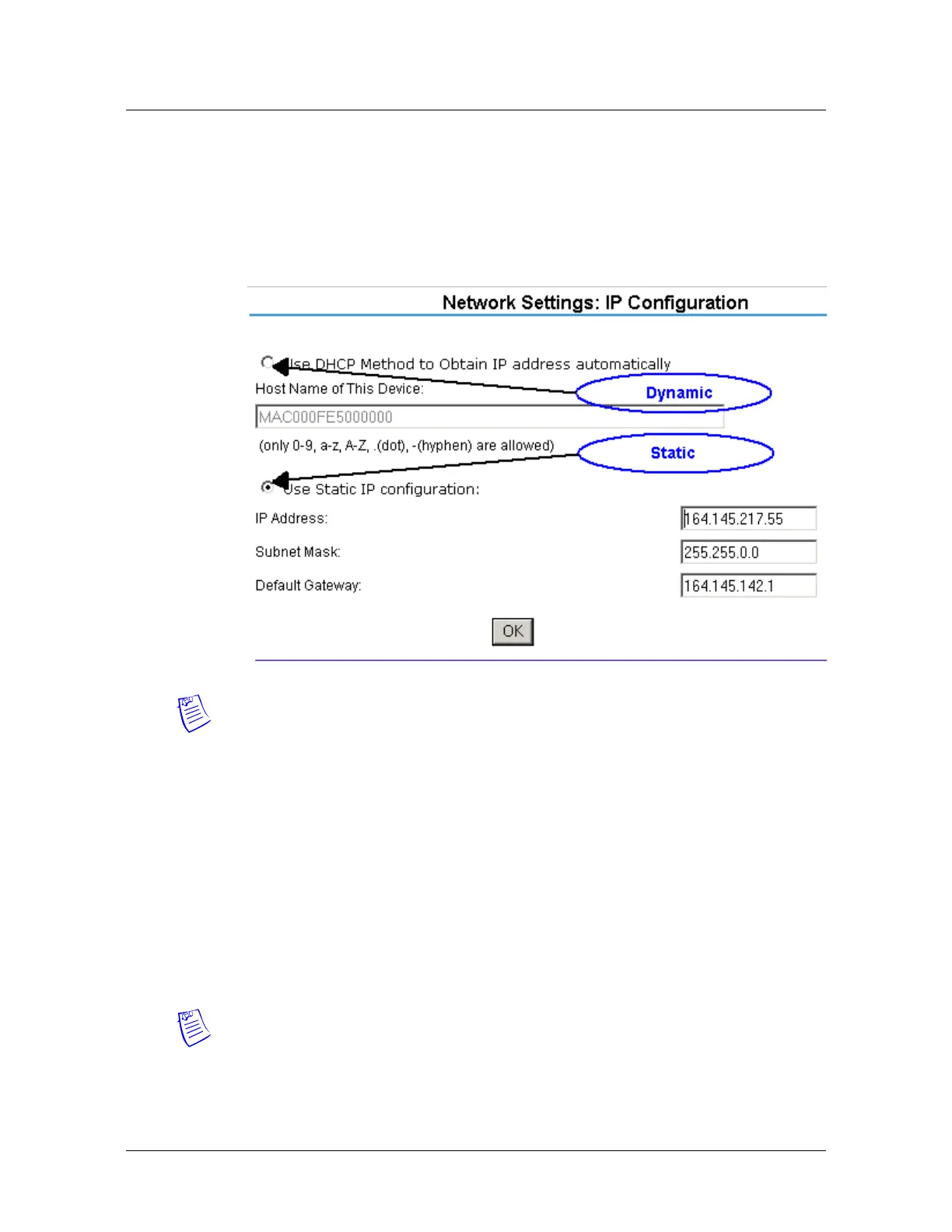

Figure 7: PW-6000 Web Server Network Settings Screen
Notes:
• The Host Name of This Device field contains the Media Access Control
(MAC) address of the PW-6000 controller board.
• The IP address configuration is same as using the Lantronix Ethernet board on
a PW-5000. The users can select the Dynamic IP option button and reserve an
IP address for the MAC address, or they can select the other option button and
assign a Static IP address as well.
4.4.1 Dynamic IP Configuration Method
1. Click the Dynamic IP option button to select the Dynamic Host Configuration
Protocol (DHCP) method to obtain IP address automatically.
2. Click OK.
Note: The Pro-Watch communicates with the PW-6000 panel using an IP address. If
you must use the Dynamic IP option because of your network policies or
configuration, you must reserve an IP address at the DHCP server for the MAC (Media
Access Control) address in the PW-6000 panel. The MAC address is a unique
identifier attached to network adapters. Each time the PW-6000 panel requests an IP
address, the DHCP server will assign the address that was reserved for it.
