PW-6000 Installation
System Configuration via Web Interface
PW-6000 (PW6K1IC) Installation and Configuration Guide, Document 800-00005V3 25
3. For the Alternate Host Port, make the following selections:
a. Connection Type. If you choose to configure an alternate host port, and
if you have selected Serial-RS232 for the primary host port, select IP
Server from the drop-down list for the alternate host port.
b. Data Security. Select one of the following values from the drop-down
list: None, Password/no AES, Password/AES.
c. Select a Baud Rate from the drop-down list.
d. Select a Flow Control from the drop-down list.
4. Click OK.
4.6 Device Information
Click the Device Info link on the navigation bar to display the read-only Access
Control Device Hardware Information screen:

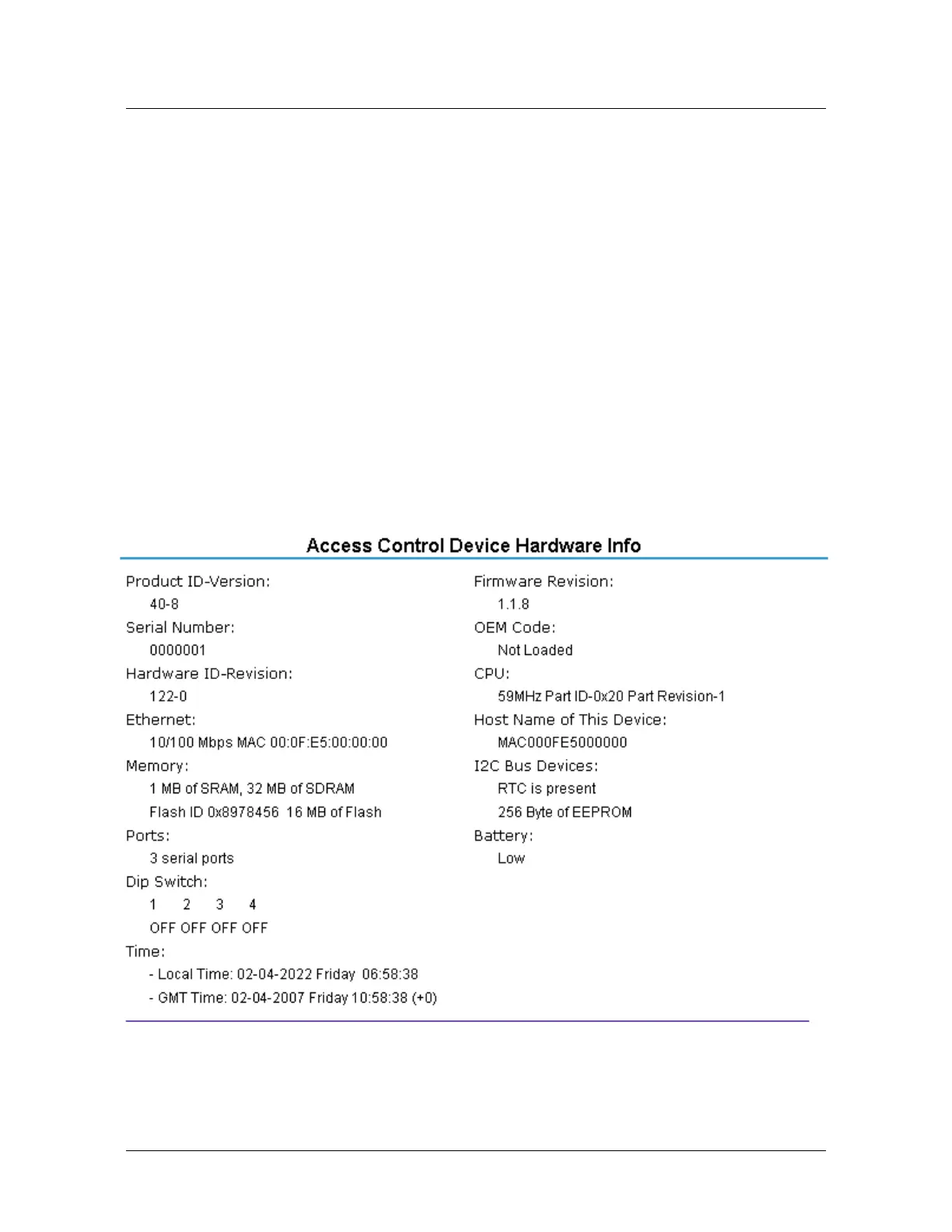

Figure 11: PW-6000 Web Server Device HW Info Screen
