PW-6000 Installation
System Configuration via Web Interface
4.5.3 Serial-RS232, Serial-RS485, Serial-Modem, or Serial-CoBox
Connection Types

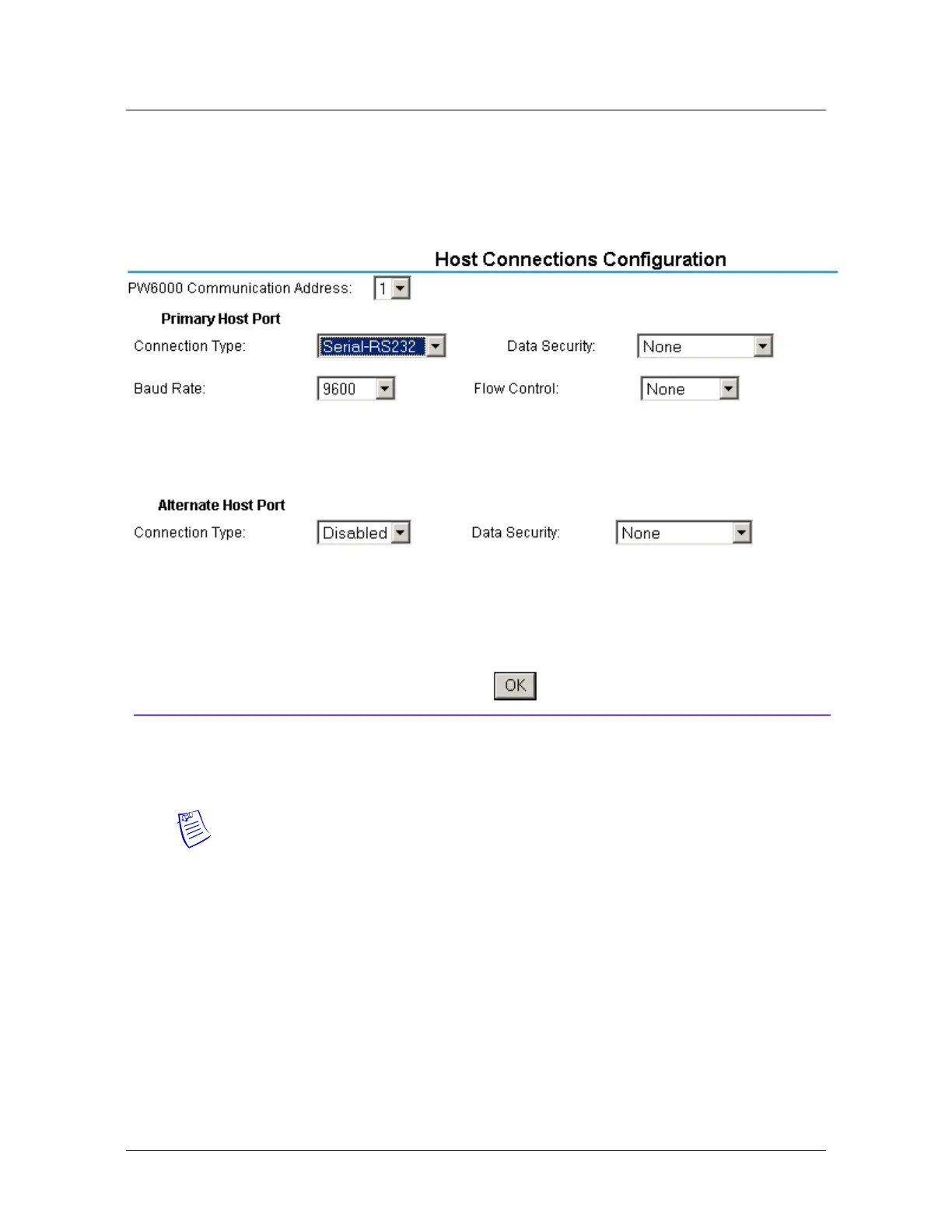

Figure 10: PW-6000 Host Port Configuration with Serial RS-232 Connection
1. From the PW6000 Communication Address drop-down list, select one of the
eight (0 to 7) available communication addresses for the PW-6000 board.
Note: In the previous panels, this selection was made through setting the virtual
DIP switches.
2. For the Primary Host Port, make the following selections:
a. Connection Type. From the drop-down list, select Serial-RS232. Select
one of the following as appropriate: Serial-RS232, Serial-RS495,
Serial-Modem, Serial-CoBox.
b. Data Security. Select one of the following values from the drop-down
list: None, Password/no AES, Password/AES.
c. Select a Baud Rate from the drop-down list.
d. Select a Flow Control from the drop-down list.
