Honeywell ScanPal 5100 User Manual

3 - 2

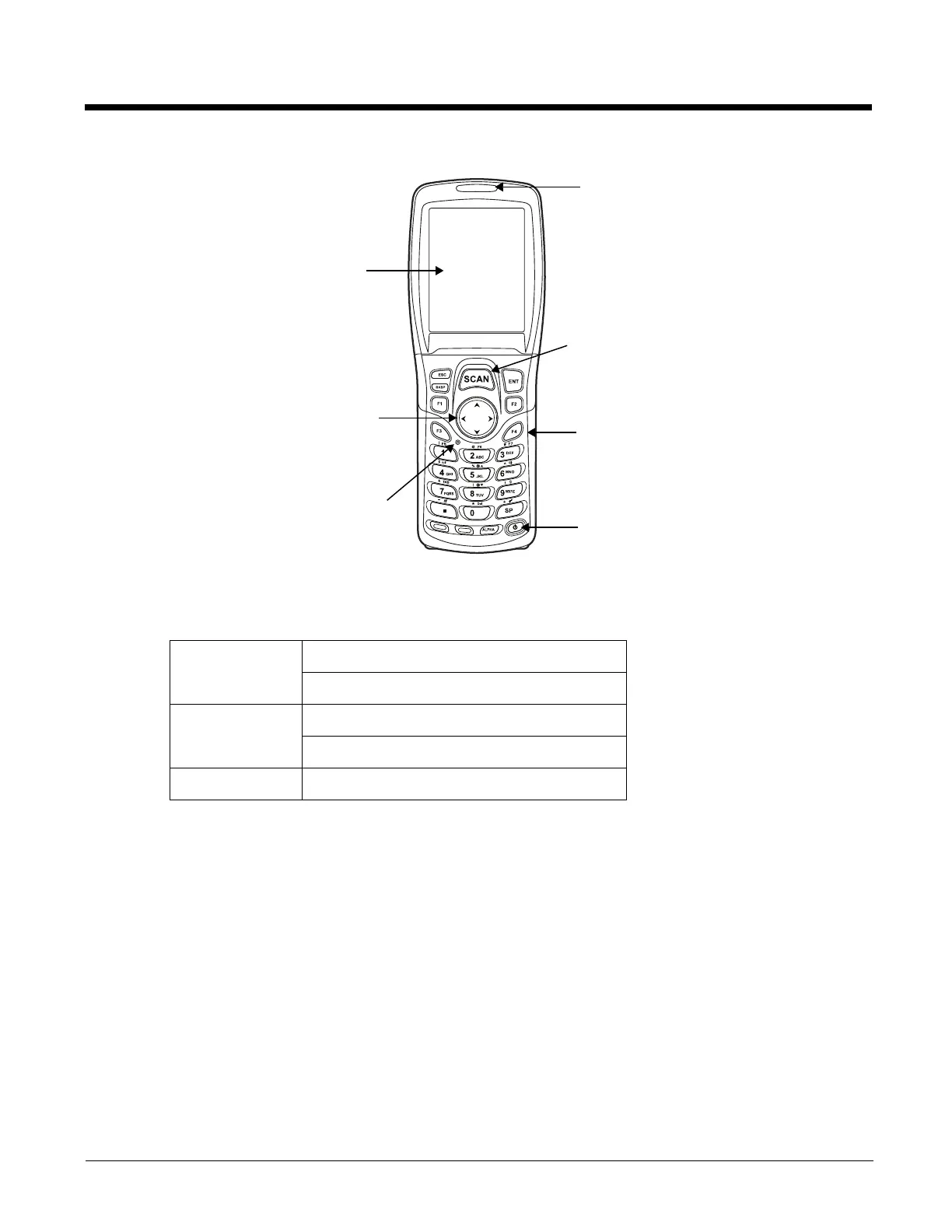

Front Panel Features
Scan/Decode LED
The LED is user-programmable.
Keypad
A 28-key numeric keypad is included on the unit.
Screen Display
The display is a LCD (Liquid Crystal Display). The 2.4” (1/4) QVGA (Quarter Video Graphic
Array) is transmissive active matrix color and backlit. The resolution is 240 x 320; see Display
Backlight on page 3-3.
Touch Screen Display (optional)
The display is a LCD (Liquid Crystal Display) with a 4-wire analog resistive touch screen. The
2.4” (1/4) QVGA (Quarter Video Graphic Array) is transmissive active matrix color and backlit.
The resolution is 240 x 320; see Display Backlight on page 3-3.
Red Scanned bar code is not decoded
Main battery is charging
Green Scanned bar code is successfully decoded
Main battery charging has completed
Blue or Red Soft or hard reset
LED
Display (screen
protector
installed at the
factory)
Keypad
(28-key
numeric)
Navigation
keys
Scan key
Power key
Software
Reset key

Honeywell ScanPal 5100 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.128 GB
Internal memory	0.064 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	PXA 300
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows CE 5.0
Wi-Fi standards	802.11b, 802.11g
Bluetooth version	2.0+EDR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3300 mAh
Battery life (max)	8 h
Product color	Black, Grey
International Protection (IP) code	IP54
Keypad number of keys	28

Weight and Dimensions

Depth	57 mm
Width	157 mm
Height	41 mm
Weight	231 g
