Honeywell ScanPal 5100 User Manual

3 - 8

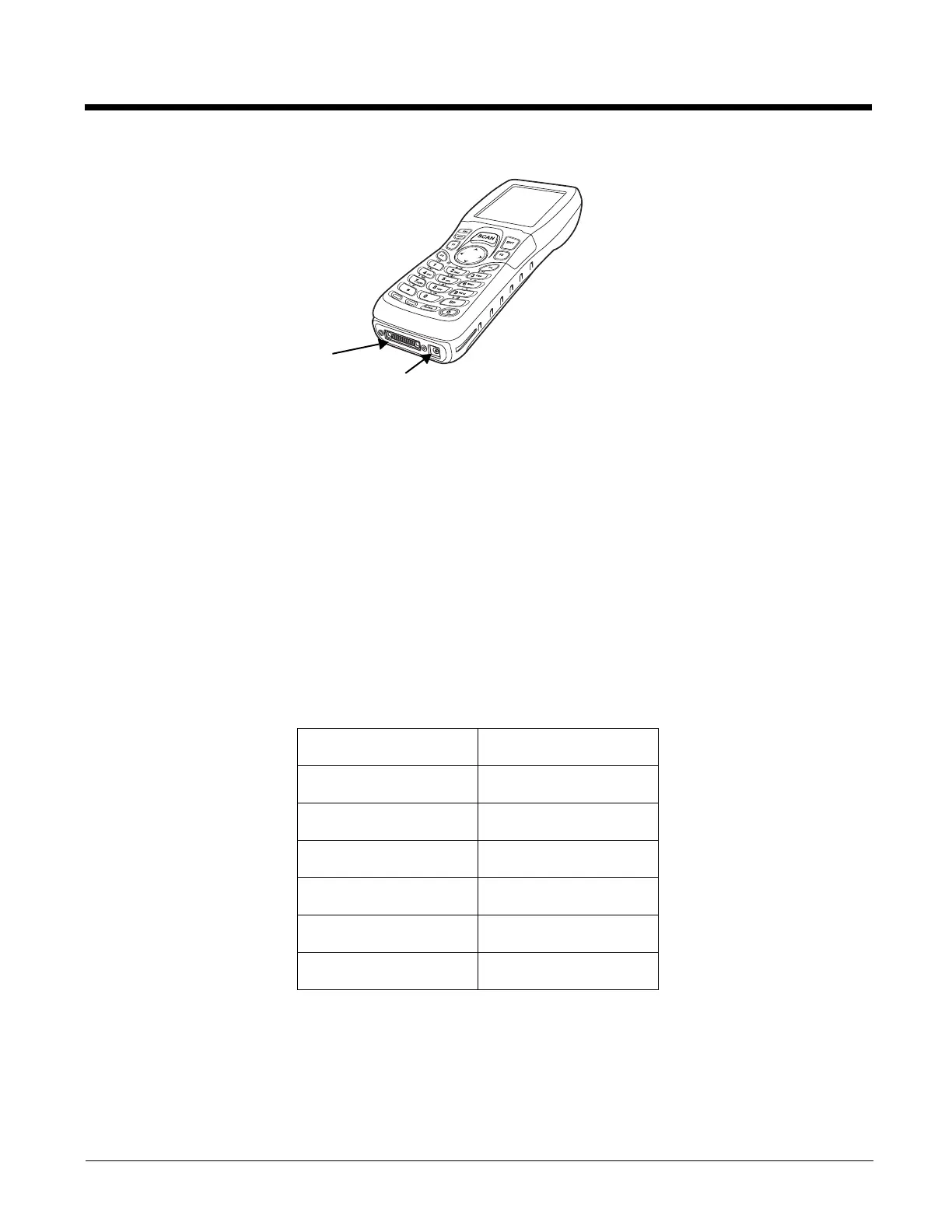

Bottom Panel Features
DC Power Jack
The DC power jack receives external power from the ScanPal 5100 power cable that is
included with the terminal. When connected to the ScanPal 5100 power cable, the terminal is
powered and the main battery pack is charging.
I/O Connector
The I/O mechanical connector is designed to work exclusively with ScanPal 5100 peripherals
and cables. This connector powers the terminal, charges the main battery, and facilitates
communication. This connector supports full speed USB 1.1 communication (up to 12 Mbps)
and RS-232 communications with a maximum speed of 115Kbps and seven baud rate
settings.
Through this connector, you can communicate with a host workstation via Microsoft
ActiveSync; see Connecting and Synchronizing the Terminal and Workstation on page 7-2.
The I/O connector supports the following signals:
Note: Signals referenced are for a DTE device.
ScanPal 5100 Peripherals/Accessories
The following items are sold separately and enhance your ScanPal 5100’s capabilities.
DC IN Clear To Send
Transmitted Data Received Data
Request To Send GND
USB Host +5V RS-232 Shutdown
USB Host D+ USB Client D+
USB Host D- USB Client D-
USB Host Detect USB Client +5V
DC Power Jack
I/O Connector

Honeywell ScanPal 5100 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.128 GB
Internal memory	0.064 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	PXA 300
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows CE 5.0
Wi-Fi standards	802.11b, 802.11g
Bluetooth version	2.0+EDR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3300 mAh
Battery life (max)	8 h
Product color	Black, Grey
International Protection (IP) code	IP54
Keypad number of keys	28

Weight and Dimensions

Depth	57 mm
Width	157 mm
Height	41 mm
Weight	231 g
