Honeywell ScanPal 5100 User Manual

3 - 7

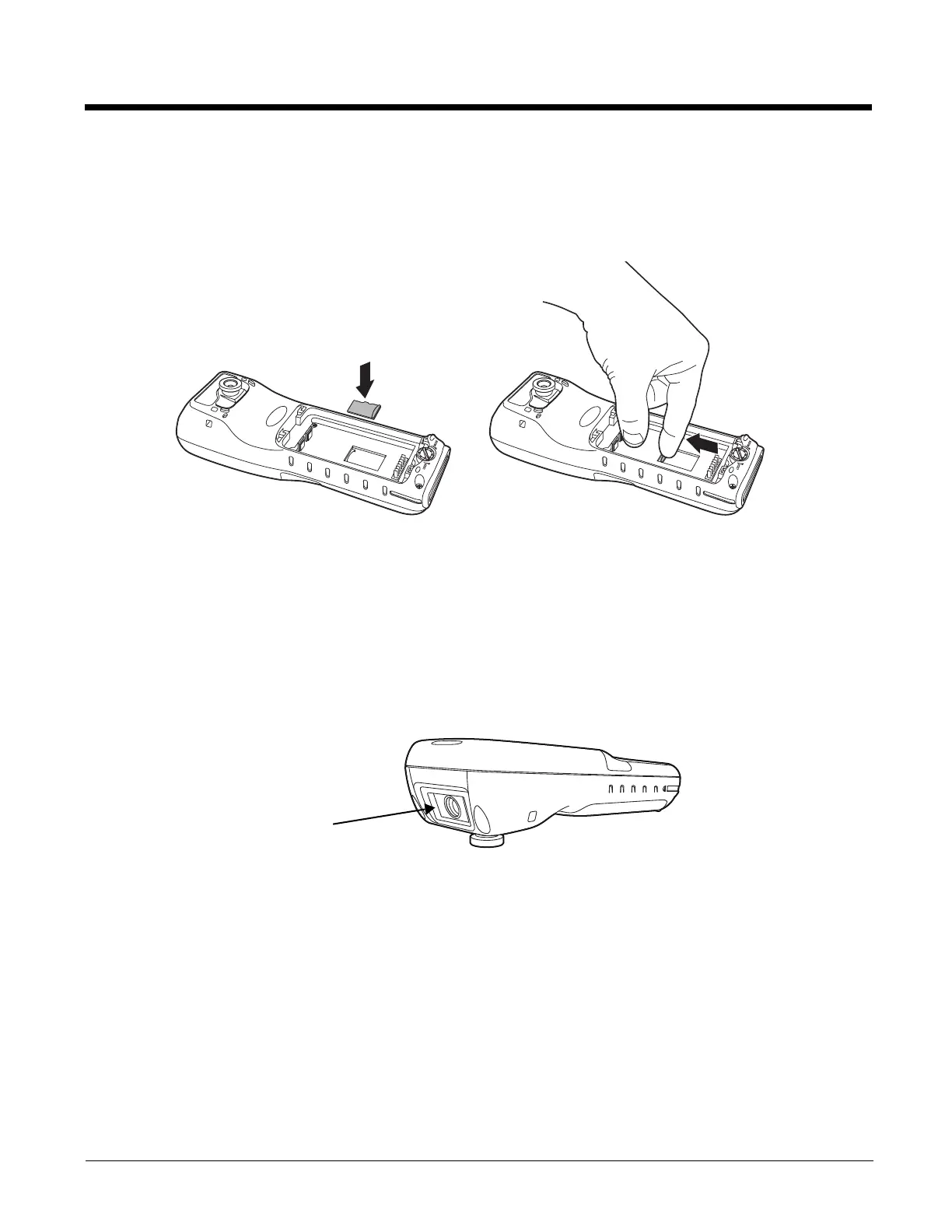

To install an SD card
1. Press the Power key to put the terminal in Suspend Mode; see Suspend Mode on page 3-13.
2. Remove the battery.
3. Insert the SD card with the label facing upward.
Note: To remove an installed SD card while the battery door cover is open, tap on the edge lightly to unlock the card;
the card will pop out just enough for you to grab its edge and pull it out.
4. Replace the battery and battery door cover.
5. Tap the Power key to resume operation.
6. To verify that the operating system recognizes the new memory card, open Windows Explorer and
navigate to My Device\Storage Card.
Top Panel Features
Laser Engine Window
If you terminal is equipped with a 4813 laser engine, the angled engine reads and decodes 1D
bar code symbologies. For more information, see Using the Laser Engine on page 5-1.
Image Engine Window
If you terminal is equipped with a 5300SR image engine, the angled engine reads and decodes
most popular bar code symbologies and takes images like a digital camera. For more
information, see Using the Image Engine on page 6-1.
Engine Window
(with engine)

Honeywell ScanPal 5100 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.128 GB
Internal memory	0.064 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	PXA 300
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows CE 5.0
Wi-Fi standards	802.11b, 802.11g
Bluetooth version	2.0+EDR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3300 mAh
Battery life (max)	8 h
Product color	Black, Grey
International Protection (IP) code	IP54
Keypad number of keys	28

Weight and Dimensions

Depth	57 mm
Width	157 mm
Height	41 mm
Weight	231 g
