10 - 1
10
QuadCharger Device
Overview
The QuadCharger device is a four-slot charging station that charges up to four Li-ion battery packs—both
standard capacity 2200mAh and extended capacity 3300mAh—in four hours and six hours respectively.
For more details about charging, see Battery Charging on page 10-2.
We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell
peripherals, cables, or power adapters may cause damage not covered by the warranty.
We recommend use of Honeywell Li-Ion battery packs. Use of any non-Honeywell battery may result in
damage not covered by the warranty. DO NOT attempt to charge damp/wet mobile computers or batteries. All
components must be dry before connecting to an external power source.
QuadCharger Device
Charging Slots
The charger contains four charging slots. Each slot holds one battery. When a battery is placed
in a slot, it immediately begins charging and its Status LED lights.
Status LEDs
A status LED is located at the end of each of the four battery slots. The color of the LED
indicates the charge status of the battery in the slot.
Green The battery has completed its charge cycle and is ready for use.
Red The battery is charging.
Power Supply Connector
Use this connector to attach the power supply to the charger. The universal power supply accepts input
voltages between 90–265 volts.
!
!

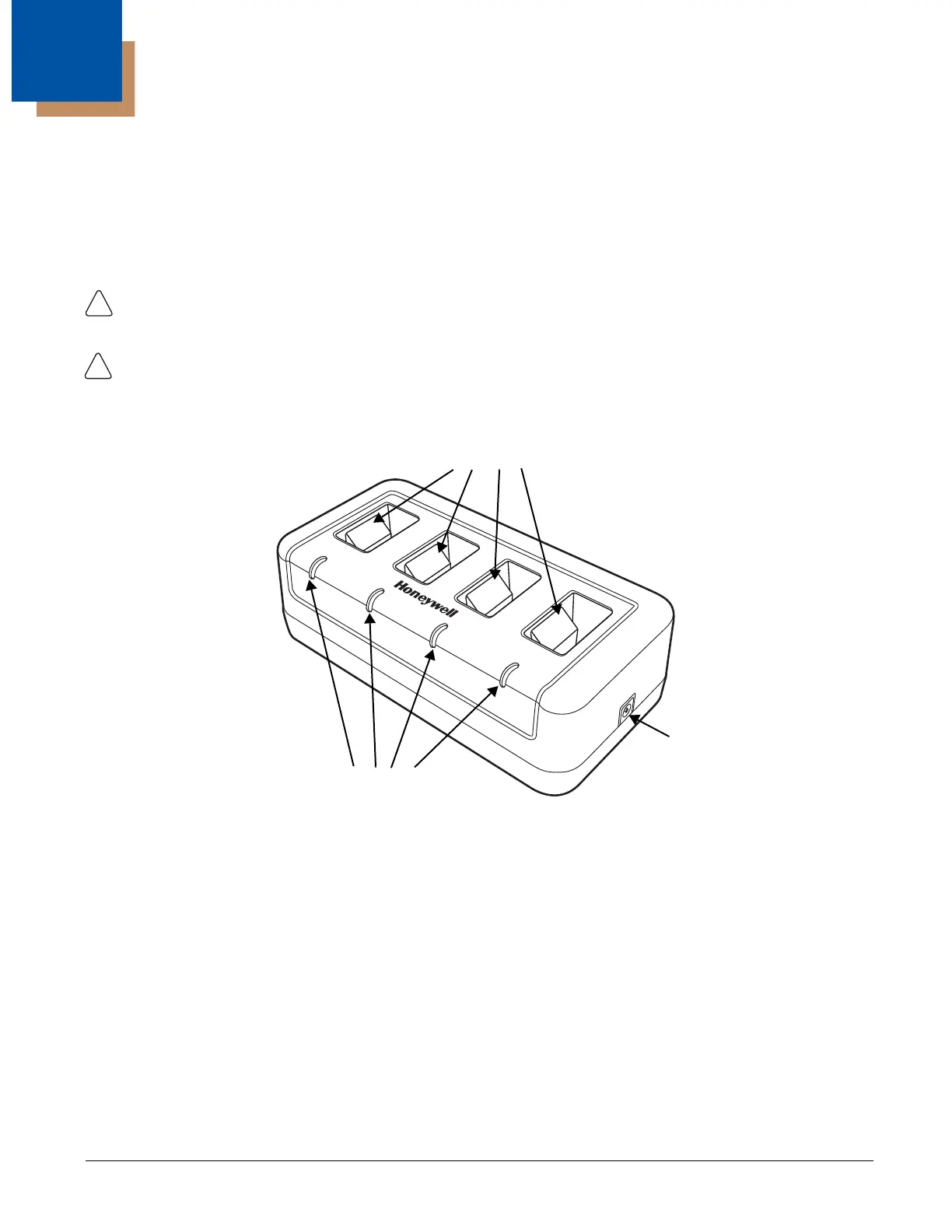

Charging Slots
Status LEDs
Power Supply Connector
