Powering the HomeBase Device
The terminal requires 5 volts DC input for communication and battery charging; the power adapter on the
power cable converts the voltage from the power source to 5 volts DC. Only power adapter cables from
Honeywell convert the voltage appropriately.
The same power cable that ships with each terminal can be used to power the base. This cable contains
a plug adapter for each geography.
1. Attach the appropriate plug adapter to the power adapter.
2. Plug the power cable into the power source.
3. Plug the connector into the DC power jack on the back panel. The base is now powered.
When a terminal is properly seated, the base powers the terminal, charges the terminal’s main battery
pack, and launches ActiveSync (see Connecting and Synchronizing the Terminal and Workstation on
page 7-2).
Honeywell recommends that you leave the base connected to its power source at all times, so that it is
always ready to use.

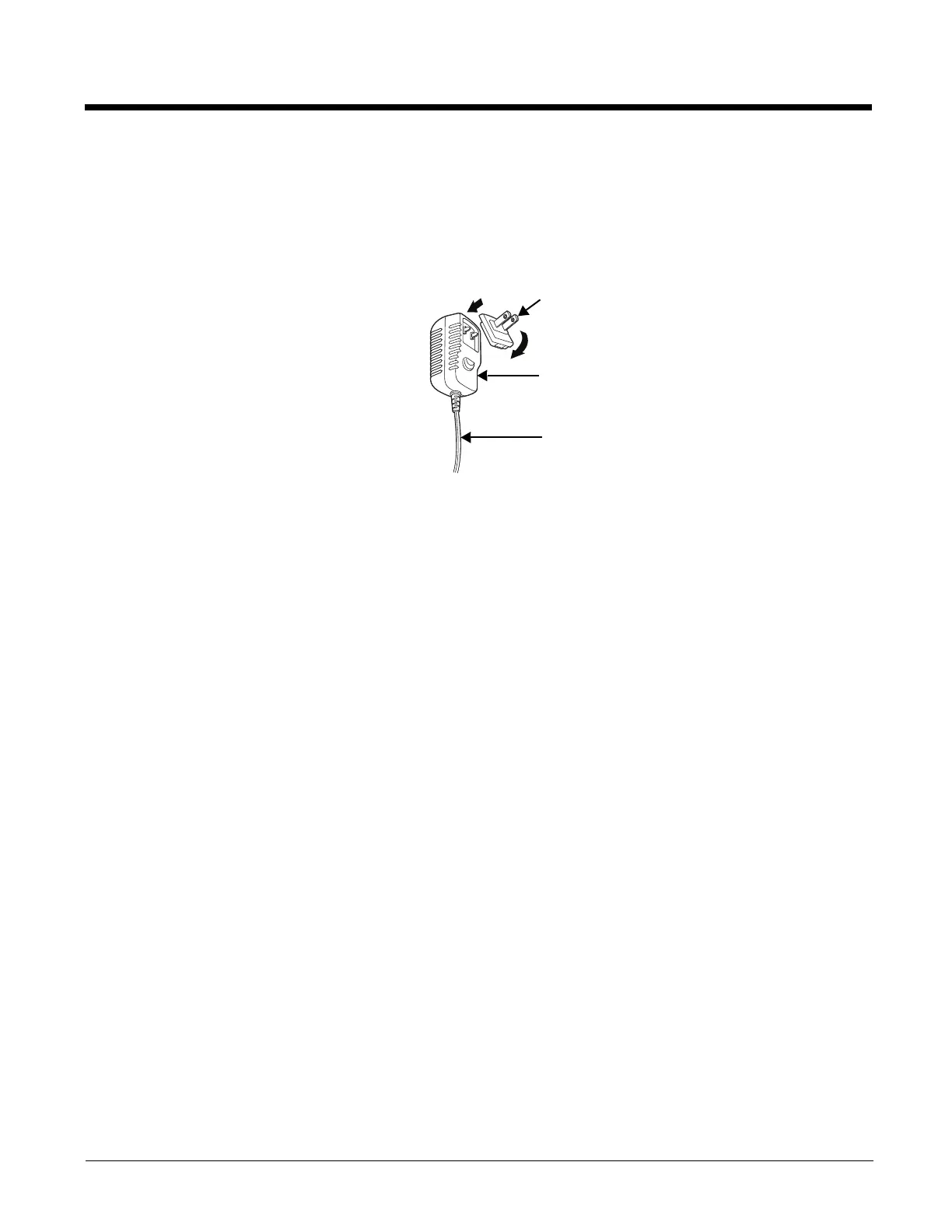

Power Adapter
Plug Adapter
Power Cable

Honeywell ScanPal 5100 Specifications

General

Display diagonal	2.4 \
Display resolution	240 x 320 pixels
Display number of colors	-
Flash memory	0.128 GB
Internal memory	0.064 GB
Internal memory type	RAM
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB
Processor family	PXA 300
Processor frequency	0.624 GHz
GPS (satellite)	No
Operating system installed	Windows CE 5.0
Wi-Fi standards	802.11b, 802.11g
Bluetooth version	2.0+EDR
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95 %
Battery capacity	3300 mAh
Battery life (max)	8 h
Product color	Black, Grey
International Protection (IP) code	IP54
Keypad number of keys	28

Weight and Dimensions

Depth	57 mm
Width	157 mm
Height	41 mm
Weight	231 g
