Solaris 7980g User Guide 181
If you aren’t sure what programming options are in your scanner, or you’ve
changed some options and want to restore the scanner to factory default settings,
first scan the Remove Custom Defaults bar code, then scan Activate Defaults.
This resets the scanner to the factory default settings.
The Menu Commands, beginning on page 187 list the factory default settings for
each of the commands (indicated by an asterisk (*) on the programming pages).

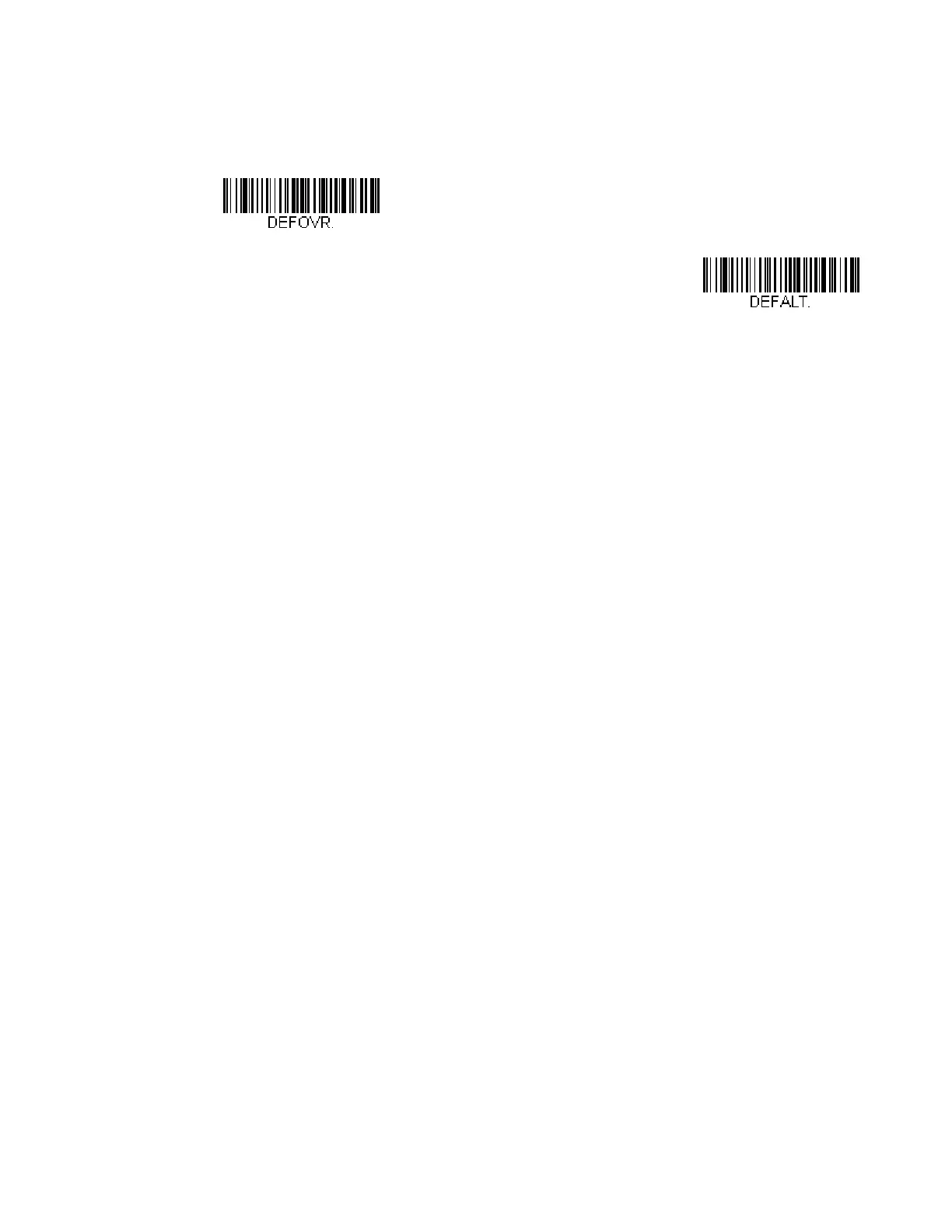

Remove Custom Defaults
Activate Defaults

Honeywell Solaris 7980g Specifications

General

Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption	400 mA
Power source type	AC
AC adapter output voltage	5 - 5.2 V
USB version	2.0
Standard interfaces	Keyboard wedge, RS-232, USB
USB 2.0 ports quantity	1
Connectivity technology	Wired
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Certification	CE, RoHS
Product color	Black
LED indicators	Status
Housing material	-
Programming function	Yes
International Protection (IP) code	IPX5
Sustainability certificates	RoHS
Type	Fixed bar code reader
Scanner type	1D/2D
Maximum scan area	0 x 190 mm
Yaw reading angle	-75 - 75 °
Pitch reading angle	-65 - 65 °
Light levels (direct sunlight)	0 - 100000 lx
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 32, Code 39, Code 93, EAN-13, EAN-8, Intelligent Mail, JAN, MSI, PLANET, POSTNET, Plessey, Telepen, Trioptic, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Codablock, Code 49, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, QR Code
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	85 mm
Width	152 mm
Height	148 mm
Weight	539 g
