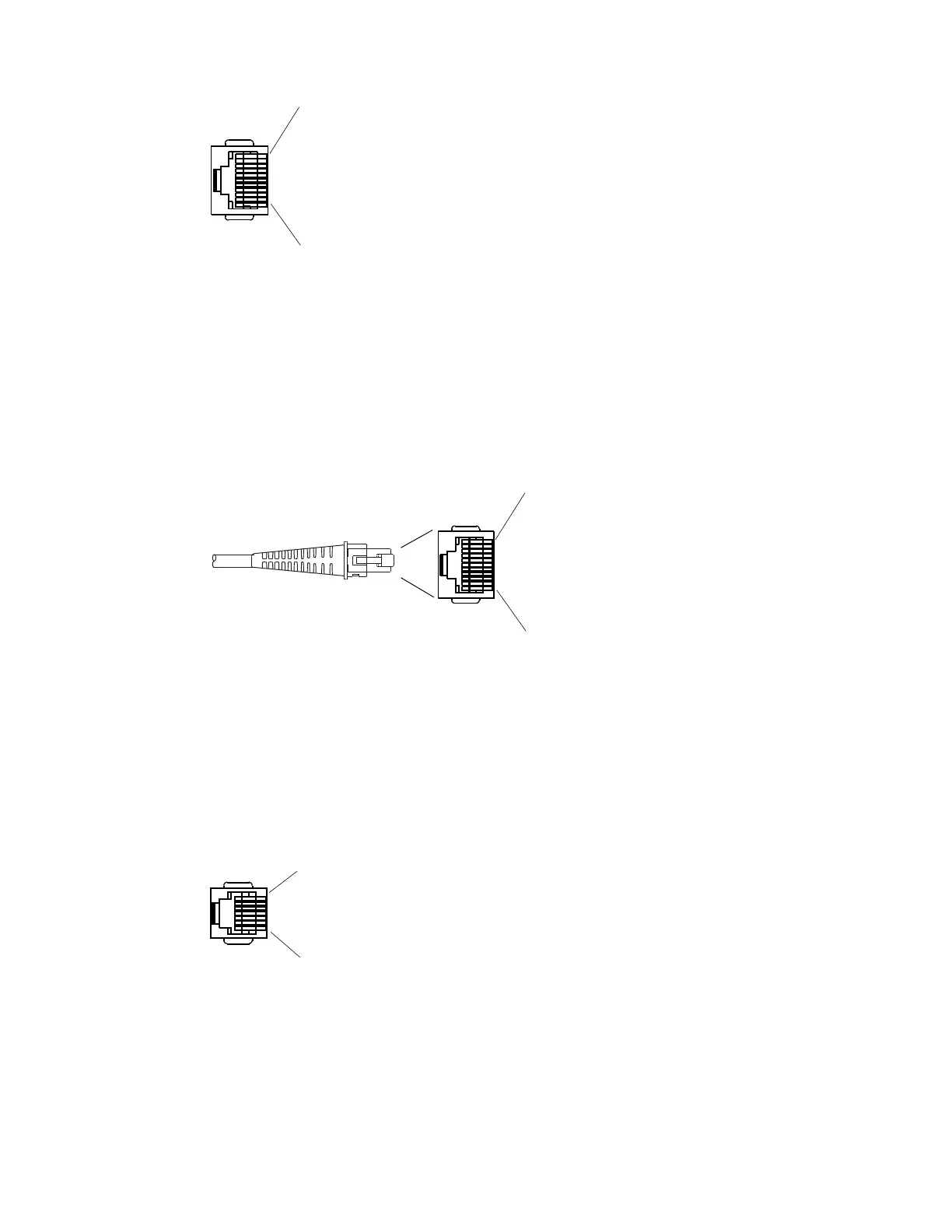

USB
10 Pin Modular Plug
EAS
6 Pin Modular Plug
1 Cable shield
2Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7 +5V power
8 Transmit Enable
9
10
1 Cable shield
2Cable select
3 Supply ground
4
5
6
7 +5V power
8
9 Data +
10 Data -
1 Supply ground
2Antenna +
3Antenna -
4 EAS GPIO out
5 EAS GPIO in
6 Cable Shield
