Revision 4.0 STT850 Series HART/DE Option User’s Manual Page 73
6.10 Manually Setting the Process Variable Range
This procedure applies to DE Transmitters operating in both DE mode and analog (current) mode.
During this procedure, the PV input will be set to 0%, which will be applied as the LRV. Further, the
PV input will be set to 100% and applied as the URV.
1. Establish the test connections shown below. Then start the MC Toolkit application to display
the DE MAIN MENU.

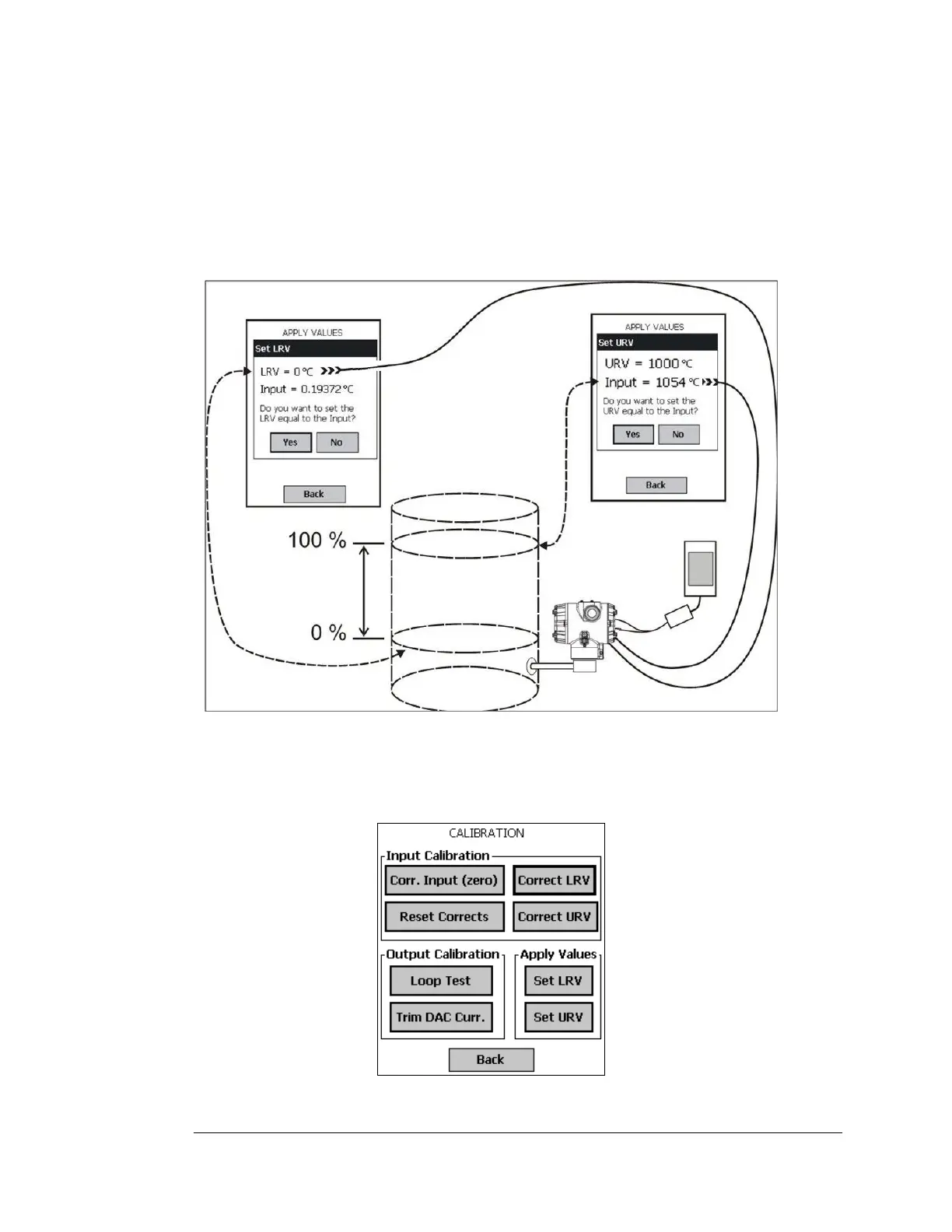

Figure 13 – Setup to Manually Set the PV LRV and URV
Select the Calibration button to display the CALIBRATION menu.
To Next Page
