Honeywell Touchpoint Plus User Manual

Servicing
MAN0996_Iss 1_02/16 Touchpoint Plus
Pt. No. 3011M5044_EN 52 User Guide
2) Switch TPPL off and isolate its power supplies.
3) Unscrew the two locking handle security screws and open the enclosure.
4) Switch the backup battery On/Off switch to Off (Fig. 50) to protect the PCB from arcing/spiking when disconnecting /
reconnecting
5) Disconnect the battery connector from the PCB.
6) Replace the battery pack with Honeywell Analytics Part No. TPPLSIBB.
7) Reconnect the battery connector to the PCB.
8) Switch the backup battery On/Off switch back to On.
9) Close the enclosure door and secure the handle with the two security screws.
10) Switch power on and restore TPPL to normal operation.
11) Touch the power icon to check battery power levels.

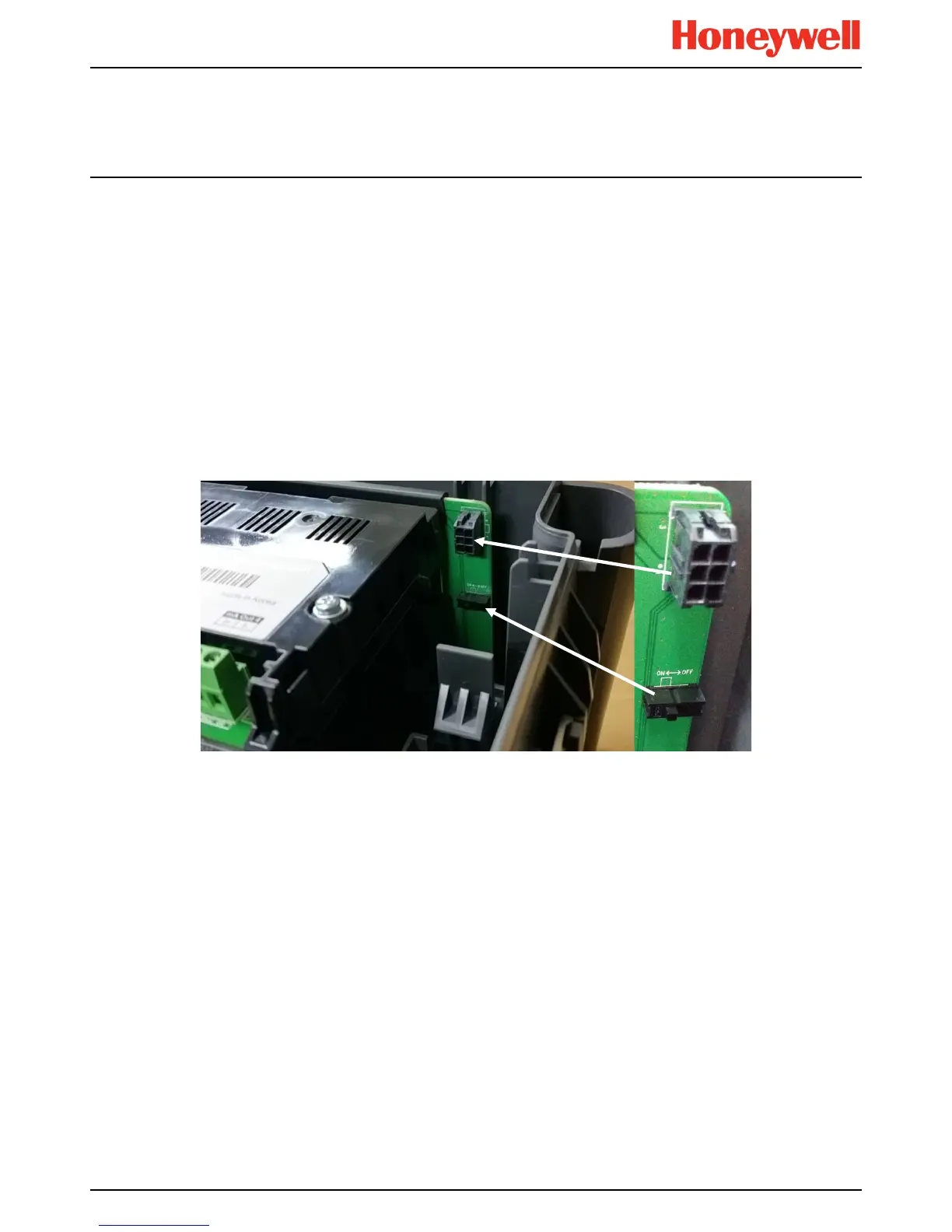

Figure 18. Battery On/Off Switch and Battery Connector
Note: Ensure that the battery On/Off switch is in the On position before closing the access door or the backup battery will
not work when it is most required.

Honeywell Touchpoint Plus Specifications

General

Mounting	Panel
Communication	Ethernet
Communication Ports	1 x Ethernet, 2 x USB
Power Supply	24 VDC
Enclosure Rating	IP65 (front)
