6.1.5 Application 1-18
Application 1–18 operates with a DOM with two amplifier channels. The first amplifier channel supplies 18
loudspeaker lines. The second channel supplies six loudspeaker lines and can be used with amplifiers 4XD125B
and 4XD250B for backup. The two other channels can be used with application 2–12, for example.

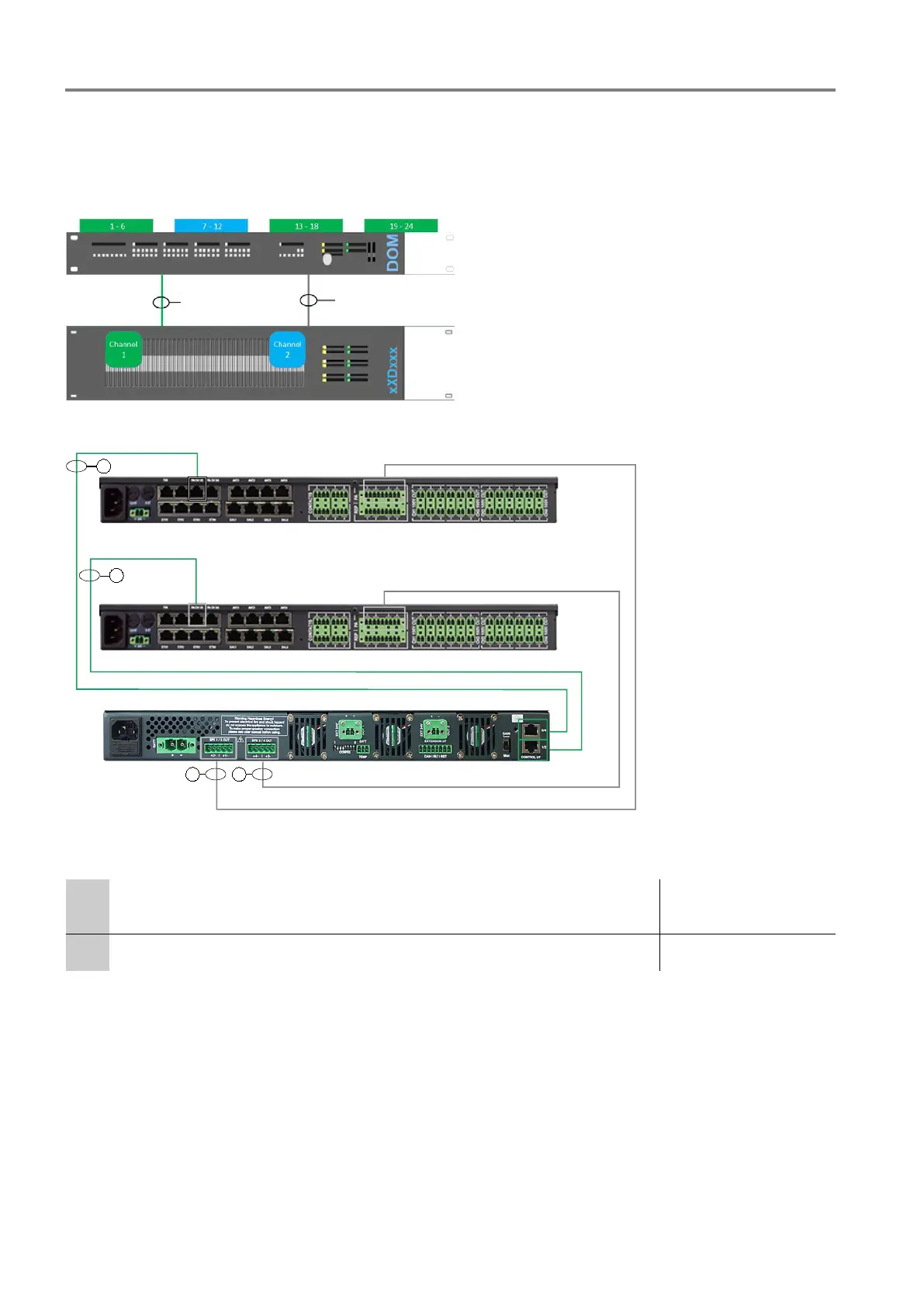

Fig. 23: Overview application 2-18
DOM 2
PA
CH 1/2 CH 3/4
DOM 1
1
1
2
2
Fig. 24: Input / output connection (Example with 4XD125B)
Input cable DOM amplifier
(0,5 m, green) audio frequency (AF), control to power amplifier (PA)
583491 or 583491A
Output cable1-18 (1 channel up to 6 or 18 lines) 583430
