6.1.7 Application 1-24 – Variant 2
Application 1–24 – variant 2, operates with four DOM, each with an amplifier channel. The amplifier channel
supplies all the loudspeaker lines of the DOM – a total of 96 zones. No backup.

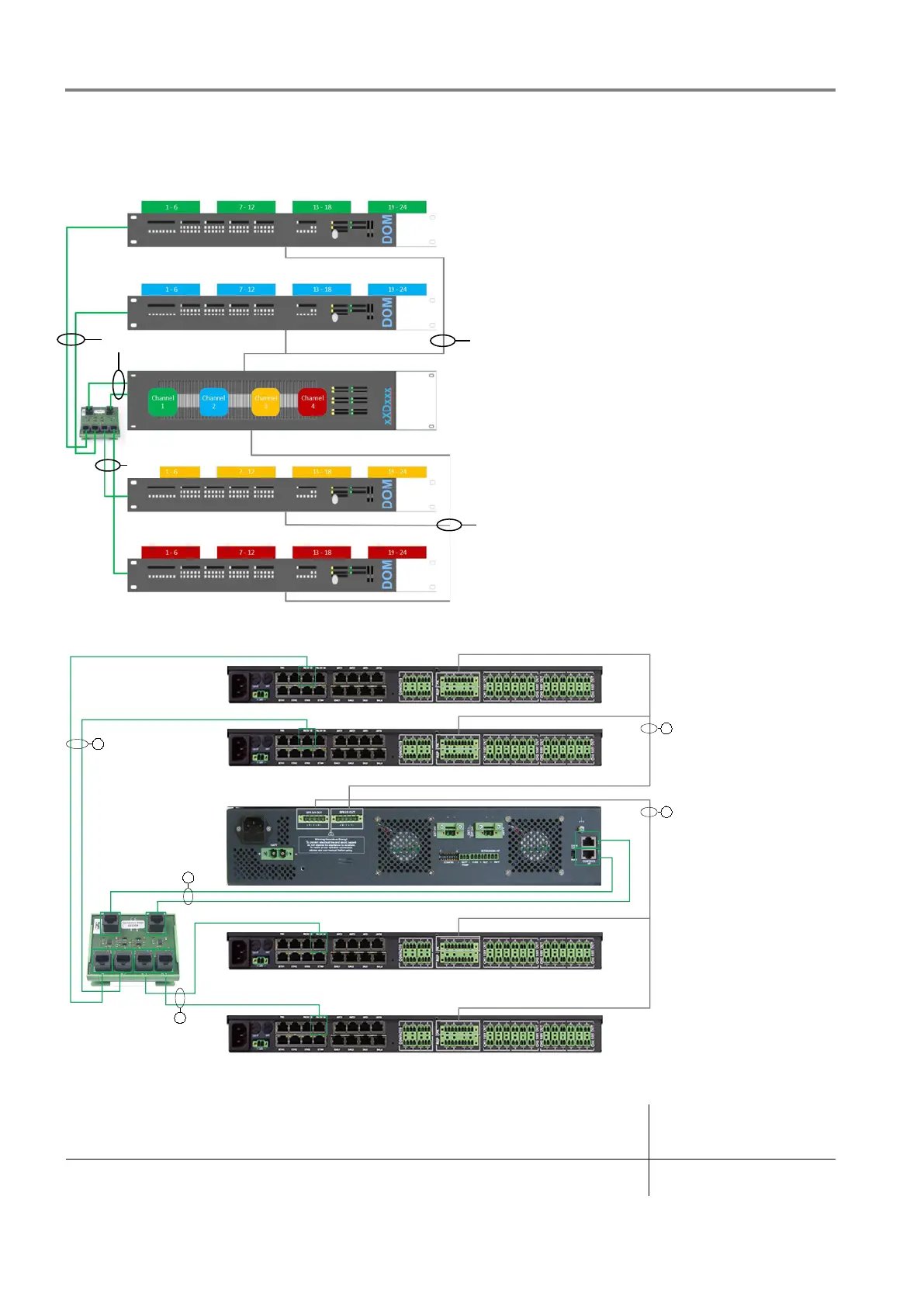

Fig. 27: Overview application 1-24 – Variant 2
PA
DOM 2
DOM 3
DOM 1
DOM 4
Connection
Board
583369
1
3
1
1
3
Fig. 28: Input / output connection

Input cable DOM amplifier
(0,5 m, green)  audio frequency (AF), control to power amplifier (PA)
583491 or 583491A

Output cable 1-24 (2 channels each up to 24 lines) 583432




