Honeywell VARIODYN D1 User Manual

Installation Instruction VARIODYN
®
D1 System
FB 798663.GB0 / 05.19 49

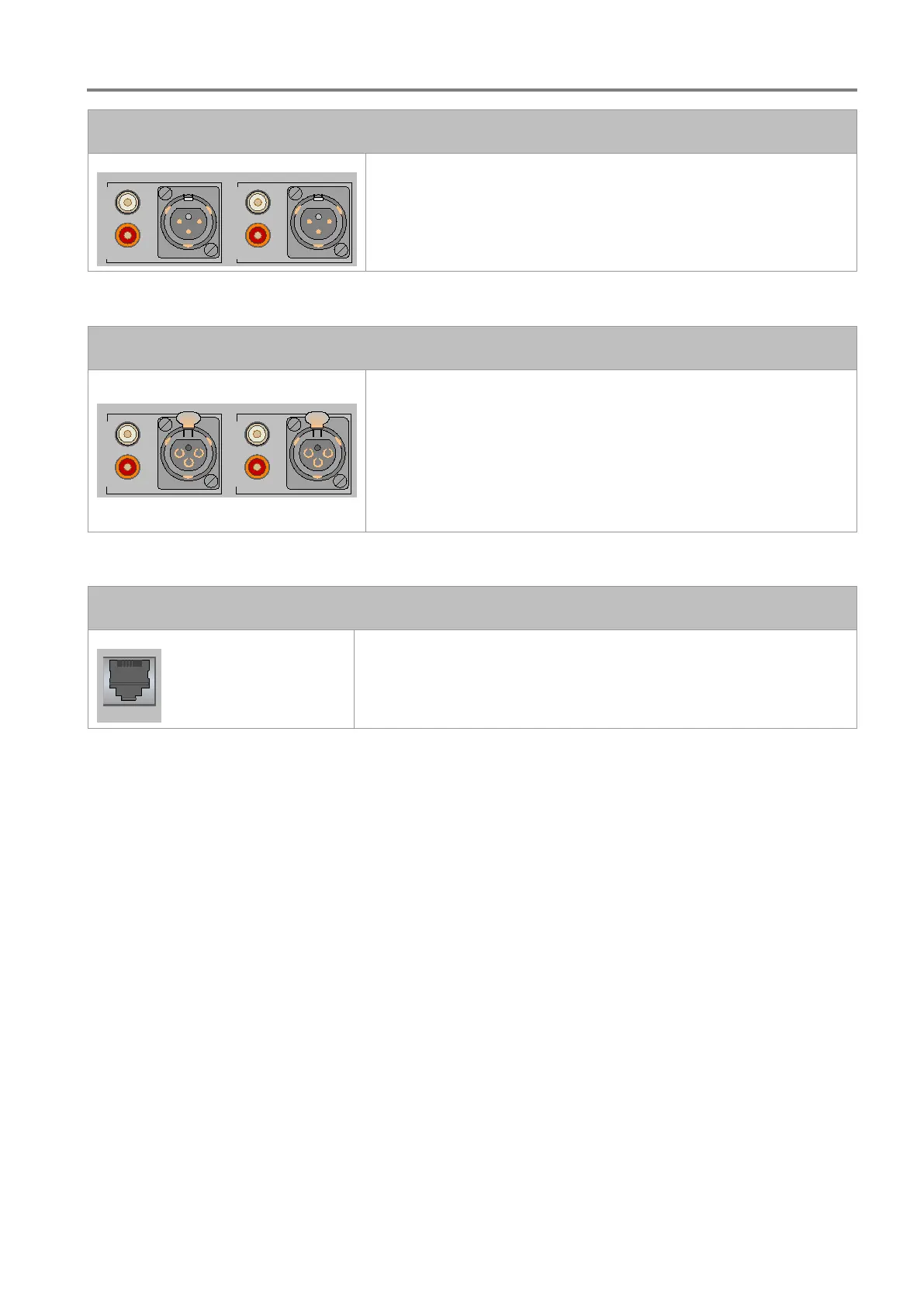

 Audio outputs
AUDIO OUTPUT 1
L
R
AUDIO OUTPUT 1
L
R
The two analogue potential-
free audio outputs are arranged
symmetrically on the XLR sockets and asymmetrically on the CINCH
sockets. The audio signal is available on the L + R CINCH sockets.
 Audio inputs
AUDIO INPUT 1
L
R
AUDIO INPUT 2
L
R
The two analogue potential-free audio inputs can be used, e.g., to
connect an external audio source (CD/MP3 player etc.) and are
arranged symmetrically on the XLR sockets and asymmetrically on the
CINCH sockets. The stereo signal is mixed into a mono signal on the
CINCH sockets.
The XLR socket and corresponding CINCH sockets cannot be used
at the same time.
 DAL
DAL
Connection of the DAL bus  Digital-Output-Module (DOM)
