6.5.2 System Communication Unit SCU (Part No. 583381.31)
12
2
1
3
4
11
6
7
9
8
5
10

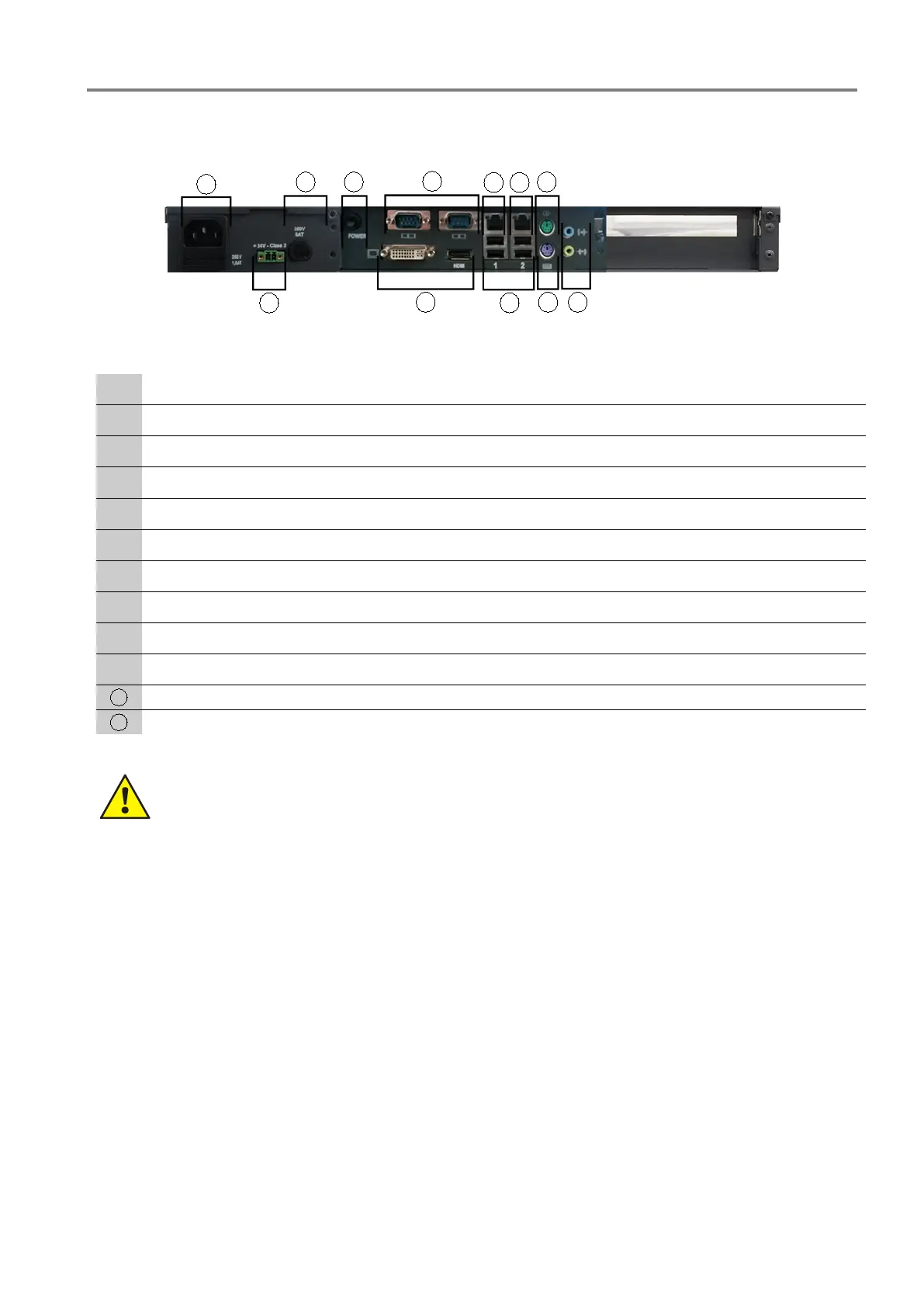

Fig. 45: Rear view SCU (Part No. 583381.31)

Device fuse 5 AT/250 V

IEC power socket 230 V AC incl. device fuse 1.6 AT

System restart button / System shutdown button (system stop)

Not used!

Not used!

Ethernet connection to DOM or service PC

Not used!

Not used!

4 x USB ports

Not used!
11
Not used!
12
24 V DC power supply (input)
Device fuses
Never repair or bridge the device fuse that is installed or replace it with anything other than the stated
type!
