CHAPTER 3: UNPACKING
63-4528-04 16

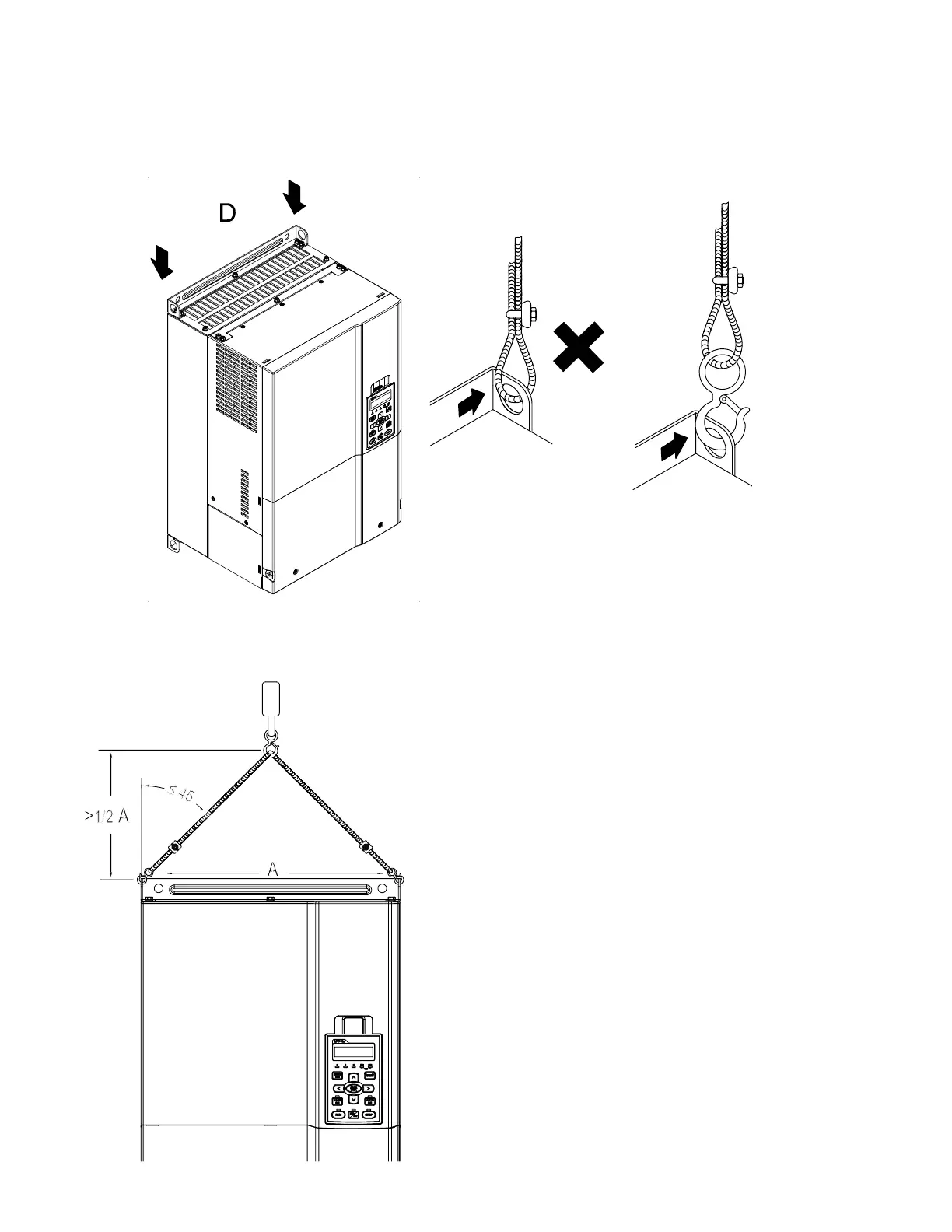

Using the lifting hook
1. The arrows show the position of lifting holes. 2. Make sure the lifting hook properly goes through the
lifting hole, as shown on the far right below.
3. Ensure that the angle between the lifting holes and lifting
device is within the specification as shown below.
M33228
M33239
