CHAPTER 12: DESCRIPTION OF PARAMETER SETTINGS
201 63-4528—04
• This parameter is used for the decel. time selection for momentary power loss.
• This function allows the VFD decelerates to stop after momentary power loss. When the momentary power loss occurs, this
function can be used for the motor to decelerate to 0 speed with deceleration stop method. When the power is on again, motor
will run again after dEb return time. (has applied on high-speed spindle)
Situation 1: Insufficient power supply due to momentary power-loss/unstable power (due to low voltage)/sudden heavy-load
Situation 2: Unexpected power off, such as momentary power loss.
2: 2nd decel. time
3: 3rd decel. time
4: 4th decel. time
5: Current decel. time
6: Auto decel. time
a
07 - 13 dEb Return Time
Factory Setting: 0.0
Settings 0.0~25.0 seconds
M33681

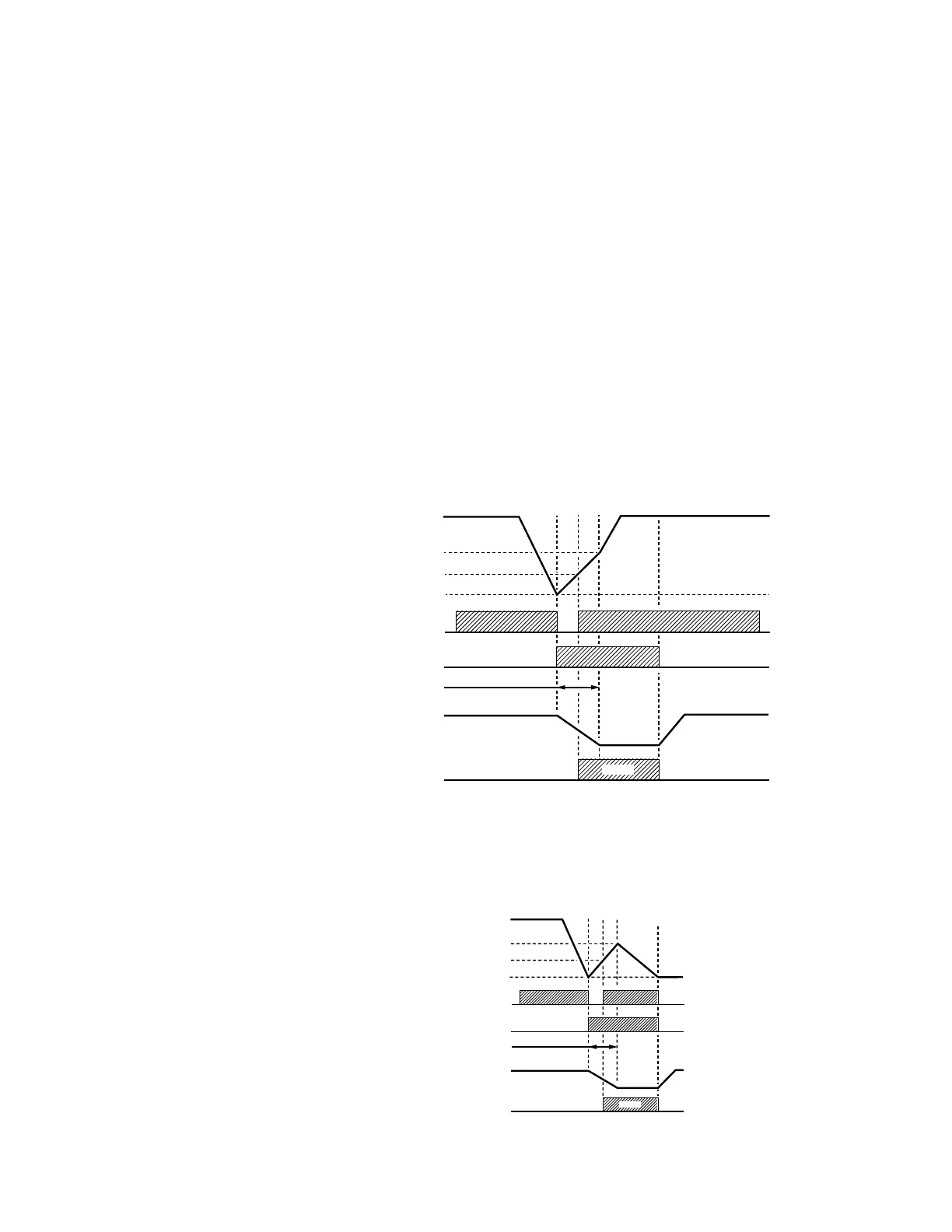

DC BUS VOLTAGE
MULTI-FUNCTION
TERMINALS NOT
NECESSARY
THE LEVEL FOR DEB RETURN TIME
(LV +30V +58V)
THE LEVEL FOR SOFT START RELAY TO BE ON
(LV +30V)
LV LEVEL
SOFT START RELAY AT POWER SIDE
DEB FUNCTION IS ACTIVATED
OUTPUT FREQUENCY
PR. 07-12 DECEL. TIME SELECTION FOR
MOMENTARY POWER LOSS
DEB RETURN TIME
NOTE: WHEN PR.07-13 IS SET TO 0, THE AC MOTOR DRIVE WILL BE
STOPPED AND WON’T RE-START AT THE POWER-ON AGAIN.
07-13
M33686
DC BUS VOLTAGE
THE LEVEL FOR DEB RETURN TIME
(LV +30V +58V)
THE LEVEL FOR SOFT START RELAY TO BE ON
(LV +30V)
LV LEVEL
SOFT START RELAY AT POWER SIDE
DEB FUNCTION IS ACTIVATED
OUTPUT FREQUENCY
PR. 07-12 DECEL. TIME SELECTION FOR
MOMENTARY POWER LOSS
DEB RETURN TIME
07 13
