Honeywell VFD CORE

CHAPTER 7: OPTIONAL COMPONENTS
63-4528—04 46

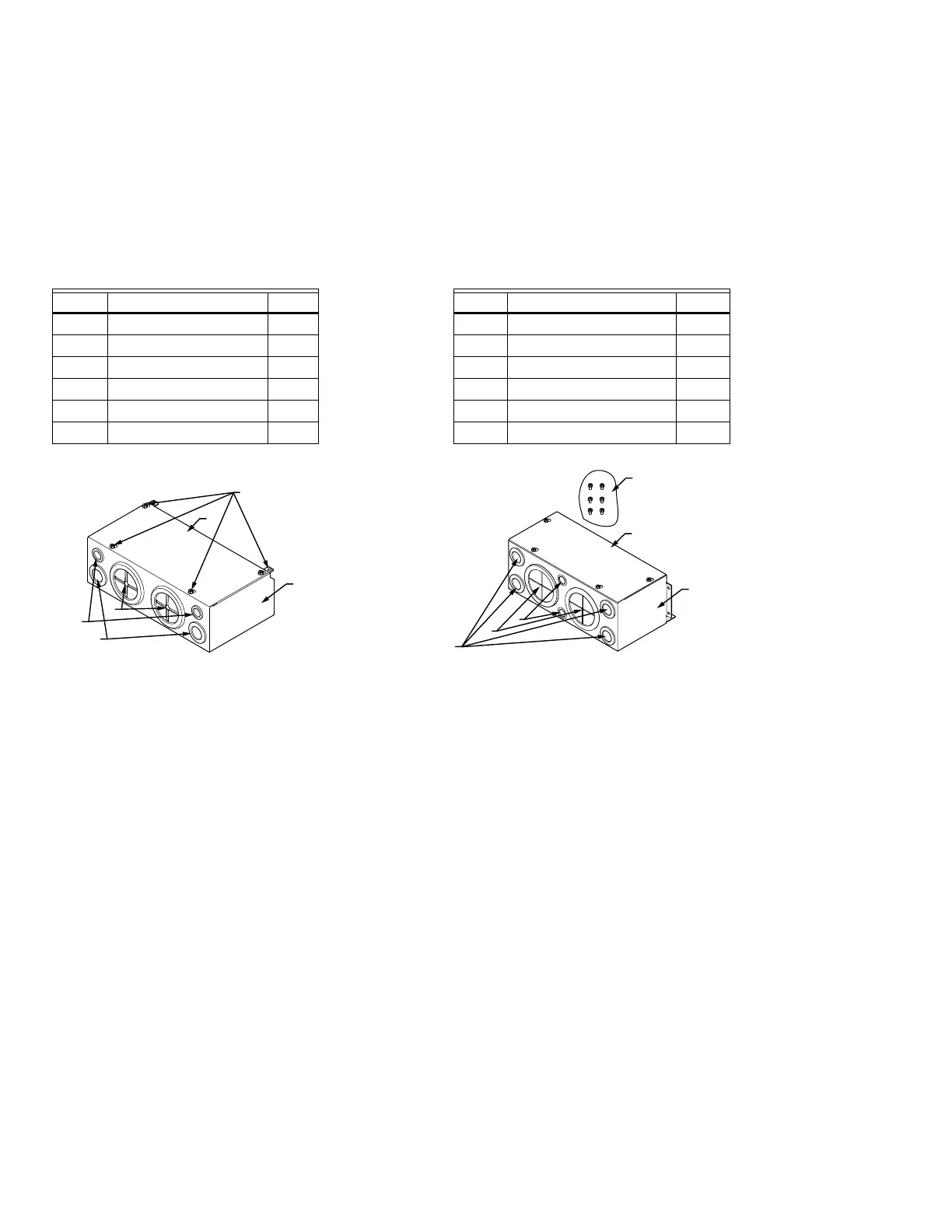

Conduit Box Kit
Frame D
208/ 230V: HCRDA0500D1000T,HCRDA0600D1000T
460V: HCRDC0600D1000T, HCRDC0750D1000T,
HCRDC1000D1000T, HCRDC1250D1000T
Frame E
208/230V: HCRDA0750E1000T, HCRDA1000E1000T,
HCRDA1250E1000T
Item Description Qty. Item Description Qty.
1 Screw M5*0.8*10L 4 1 Screw M5*0.8*10L 6
2 Rubber 28 2 2 Bushing Rubber 28 2
3 Rubber 44 2 3 Bushing Rubber 44 4
4 Rubber 88 2 4 Bushing Rubber 100 2
5 Conduit box cover 1 5 Conduit box cover 1
6 Conduit box base 1 6 Conduit box base 1
5
1
6
4
3
2
M33411
M33412
5
6
3
2
4
1
