Honeywell VFD CORE

CHAPTER 7: OPTIONAL COMPONENTS
47 63-4528—04
Installation of conduit box
Frame D

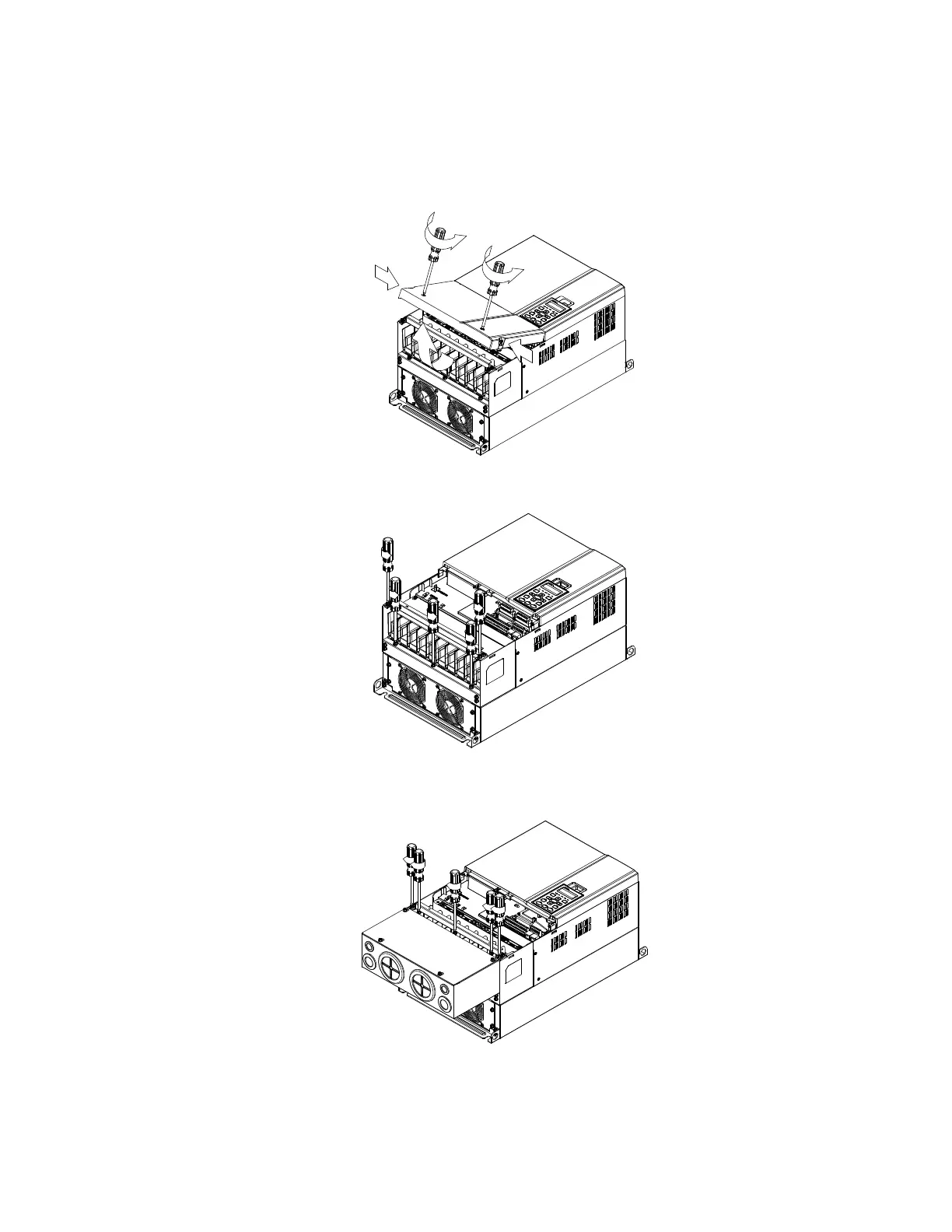

1. Loosen the cover screws and press the tabs on each side of the cover to remove the cover, as shown in the following fig-
ure. Screw torque: 10~12kg-cm (8.66~10.39Ib-in)
2. Remove the 5 screws shown in the following figure. Screw torque: 24~26kg-cm (20.8~22.6Ib-in).
3. Install the conduit box by tightening the 5 screws shown in the following figure.
Screw torque: 24~26kg-cm (20.8~22.6Ib-in).
M33332
M33333
M33334
