CHAPTER 7: OPTIONAL COMPONENTS
63-4528—04 52

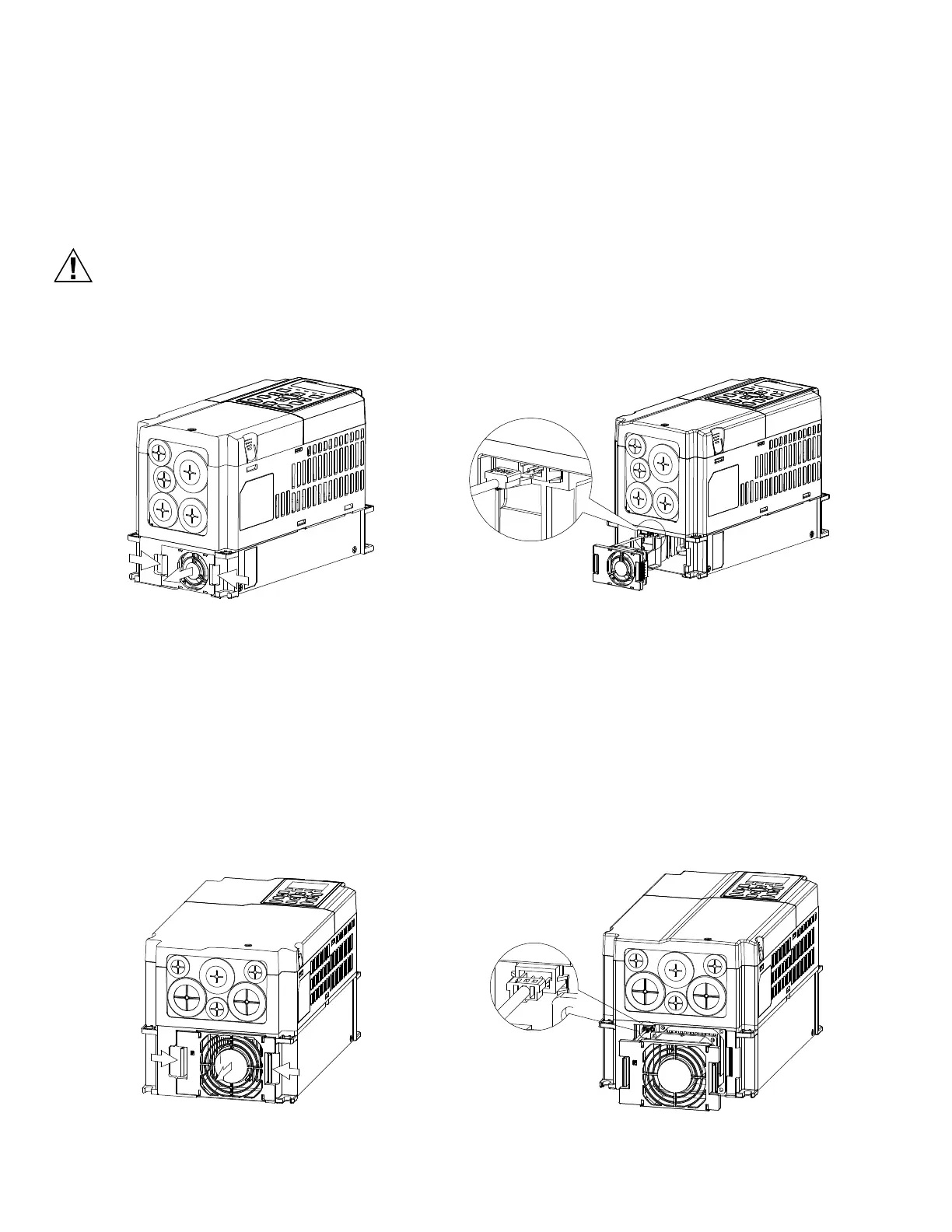

Fan Removal
Heat Sink Cooling Fan Frame A
Corresponding models:
HCRDA0030A1000T, HCRDA0050A1000T, HCRDA0075A1000T, HCRDC0050A1000T
HCRDC0075A1000T, HCRDC0100A1000T
Disconnect fan power before removing the fan.
1. As shown by the arrow signs, press the tabs on both sides
of the fan to remove it.
2. As shown by the partially enlarged image below, remove
the fan from the unit.
Heat Sink Cooling Fan Frame B
Corresponding models:
HCRDA0100B1000T, HCRDA0150B1000T, HCRDC0150B1000T
HCRDA0200B1000T, HCRDC0200B1000T, HCRDC0250B1000T
1. As shown by the arrow signs, press the tabs on both sides
of the fan to remove it.
2. As shown by the partially enlarged image below, remove
the fan from the unit.
M33351
