CHAPTER 7: OPTIONAL COMPONENTS
53 63-4528—04
Board Assembly Cooling Fan Frame B and Frame C
Corresponding models Frame B:
HCRDA0100B1000T, HCRDA0150B1000T, HCRDC0150B1000T
HCRDA0200B1000T, HCRDC0200B1000T
HCRDA0250C1000T, HCRDC0250B1000T
Corresponding models Frame C:
HCRDA0250C1000T, HCRDA0300C1000T, HCRDA0400C1000T
HCRDC0300C1000T, HCRDC0400C1000T
HCRDA0500D1000T

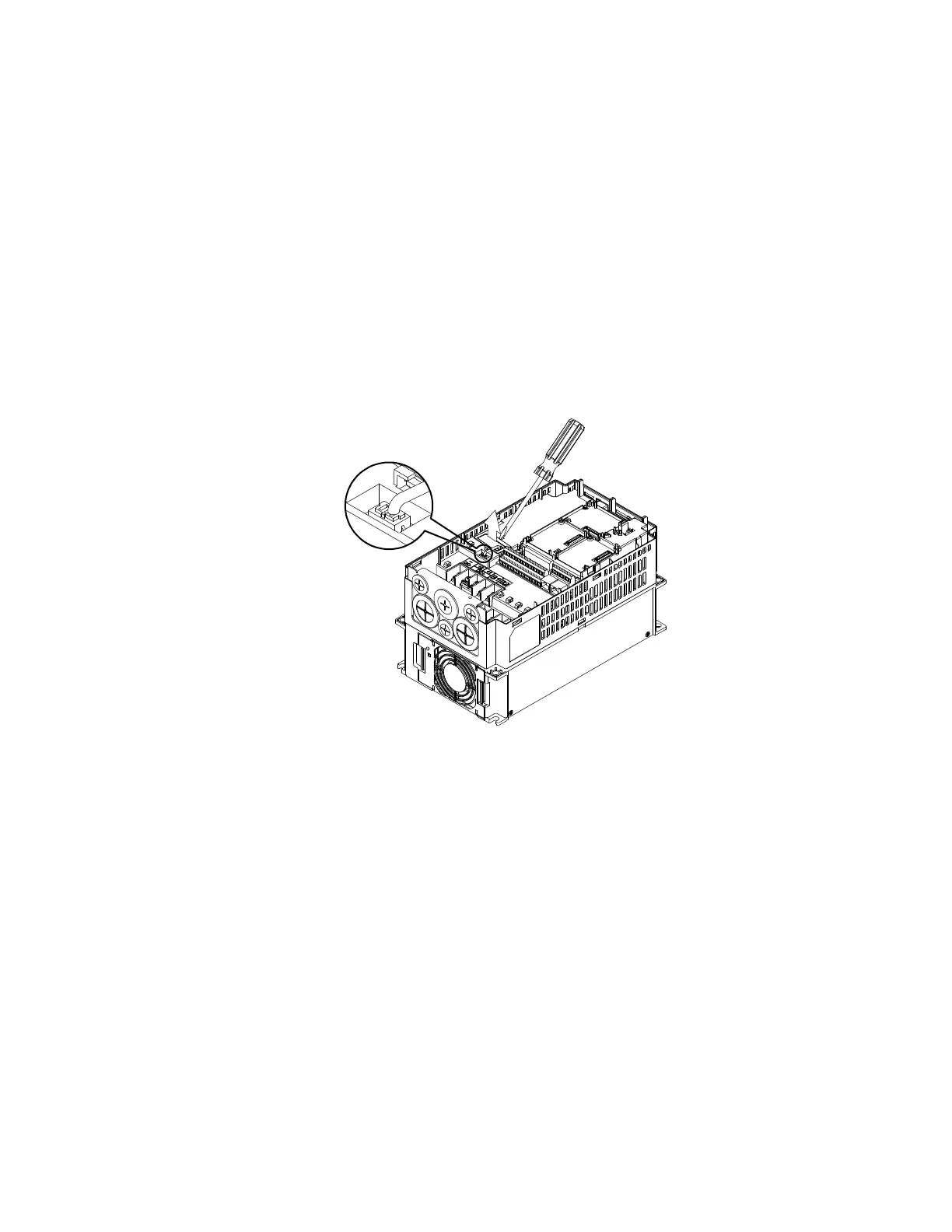

As shown by the partially enlarged image, disconnect the fan’s power, then use a screwdriver to unclench and remove the fan.
