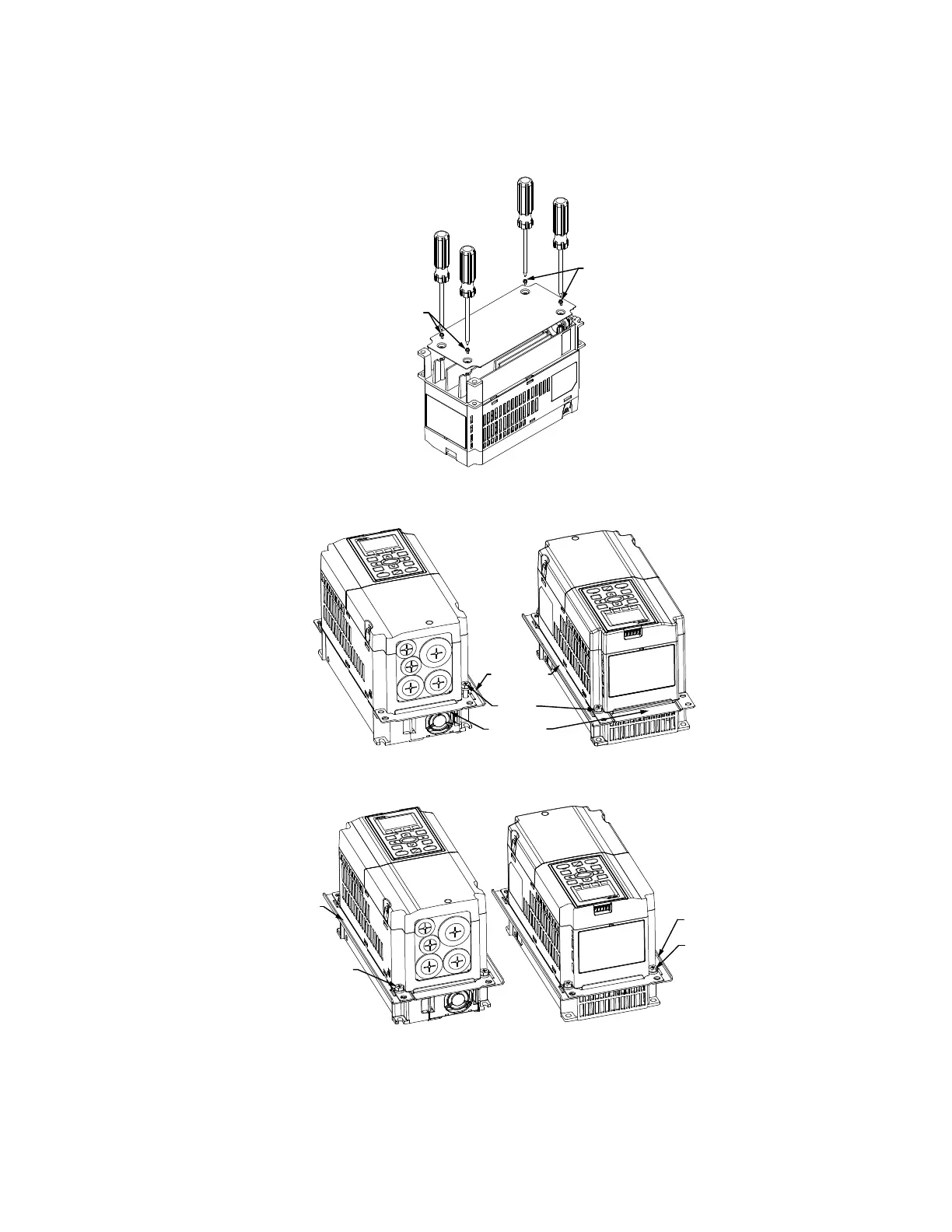

Installation of Flange Mouting Kit Type 1
1. Install mounting plate by using 4 screws (M3). Screw torque: 6~8kg-cm (5.21~6.95Ib-in).
2. Install side bracket using 2 screws on one side (M6). Screw torque:25~30kg-cm (21.7~ 26.Ib-in)』
3. Install side brackets by using screws on the other side (M6). Screw torque:25~30kg-cm (21.7~26 Ib-in)』
M33367
SCREWS
SCREWS
M33368
SIDE BRACKET
SIDE BRACKET
SCREW 2
M33369
SIDE BRACKET
SCREW 2
SIDE BRACKET
SCREW 2
