Honeywell VFD CORE

CHAPTER 7: OPTIONAL COMPONENTS
63-4528—04 56

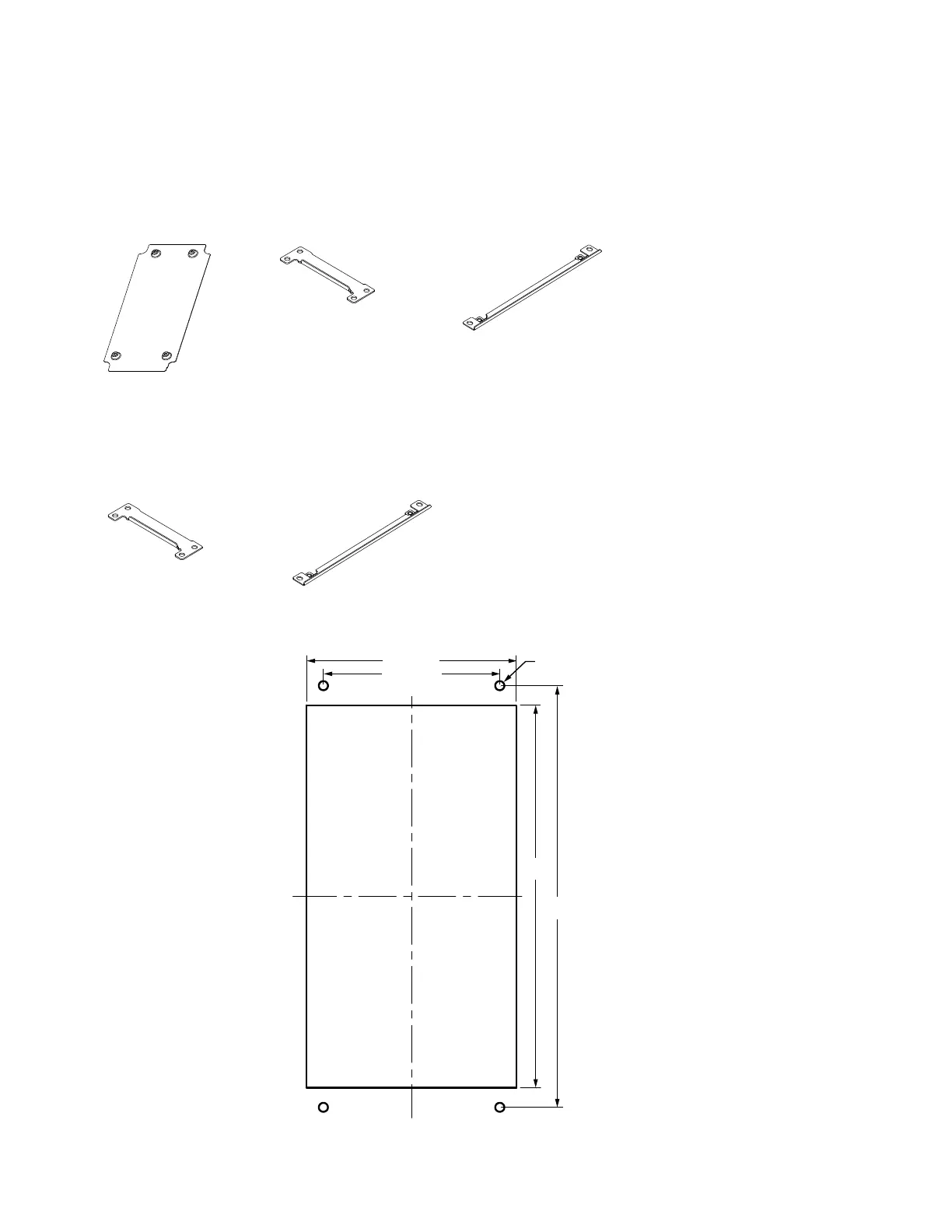

Flange Mounting Kit
Corresponding frames: Frames A ~E
Frame A
Fig. 2. Panel Cutout Diagram Frame A: Unit in in. (mm)
Flange Mounting Kit Frame A Type 1
Corresponding models: HCRDA0030A1000T; HCRDA0050A1000T; HCRDC0050A1000T
Flange Mounting Kit Frame A Type 2
Corresponding models: HCRDA0010A1000T; HCRDA0020A1000T; HCRDA0075A1000T; HCRDC0010A1000T;
HCRDC0020A1000T; HCRDC0030A1000T;HCRDC0075A1000T; HCRDC0100A1000T
M33363
M33364
M33365
Mounting Plate, 1 each
Side Bracket, 2 each
Side Bracket, 2 each
Screw 1 *4 each
M3*P 0.5; L=6mm
Screws 2*8 each
M6* 1.0; L=16mm
Side Bracket, 2 each
Side Bracket, 2 each
Screw 1 *8 each
M6*P 1.0; L=16mm
M33364
M33365
5-7/16 (138)
4-37/64 (116)
[4] M6*P1.0 OR
[4] Ø17/64 (Ø7)
10
(254)
11-1/64
(280)
M33366
