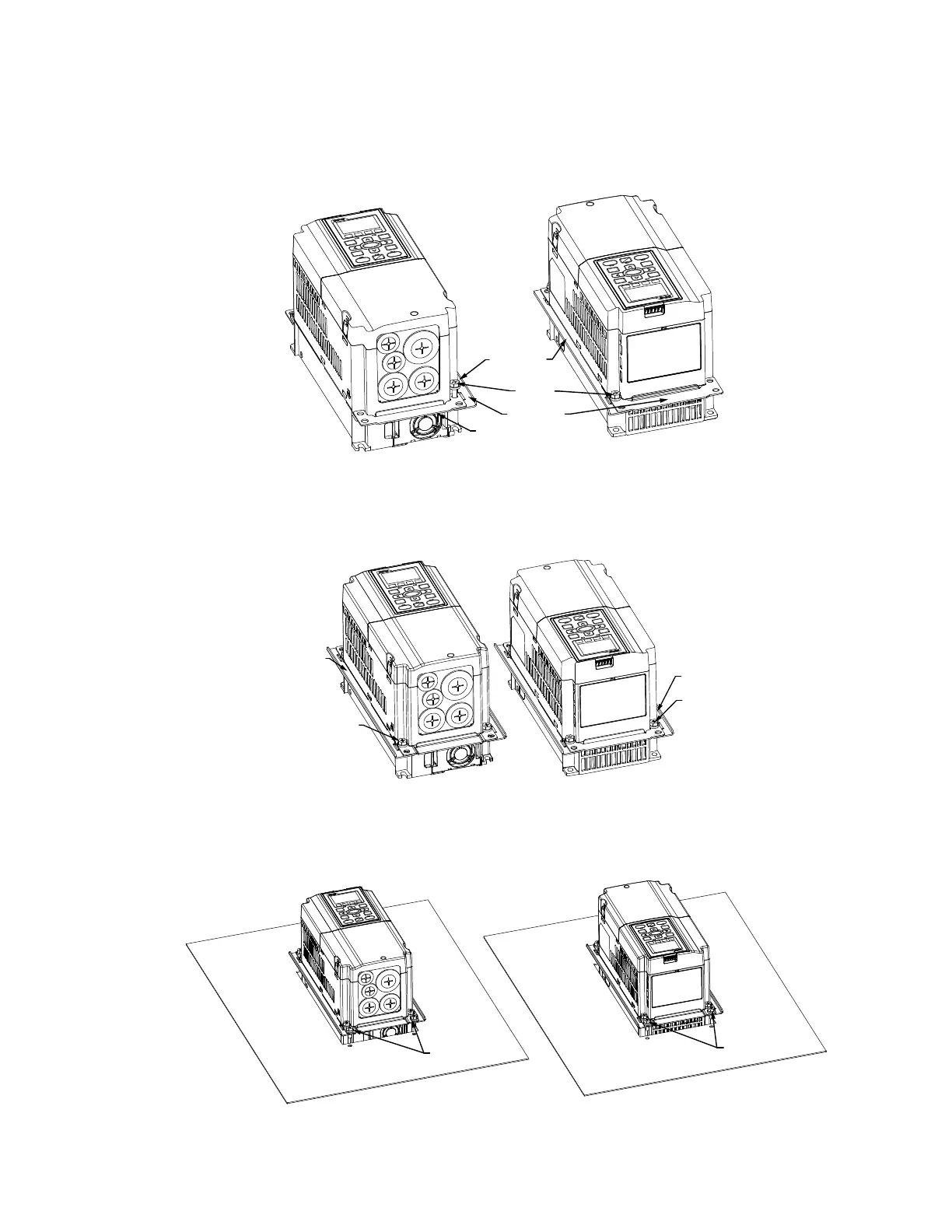

Installation of Flange Mounting Kit Type 2
1. Install mounting plate by using 4 screws (M3). Screw torque:25~30kg-cm (21.7~26Ib-in)』
(As shown in the figures below)
2. Install side bracket using 2 screws on one side (M3). Screw torque: 25~30kg-cm (21.7~26Ib-in)』
(As shown in the figures below)
3. Mount VFD on the frame, using 4 screws (M6) through the side brackets and the plate, then fasten the screws.
Screw torque: 25~30kg-cm (21.7~26 Ib-in). (As shown in the figures below)
M33371
SIDE BRACKET
SIDE BRACKET
SCREW 1
KIT 1
M33372
SIDE BRACKET
SCREW 1
SIDE BRACKET
SCREW 1
M33373
SCREW 1
SCREW 1
