Honeywell VFD CORE

CHAPTER 7: OPTIONAL COMPONENTS
63-4528—04 60
Frame B

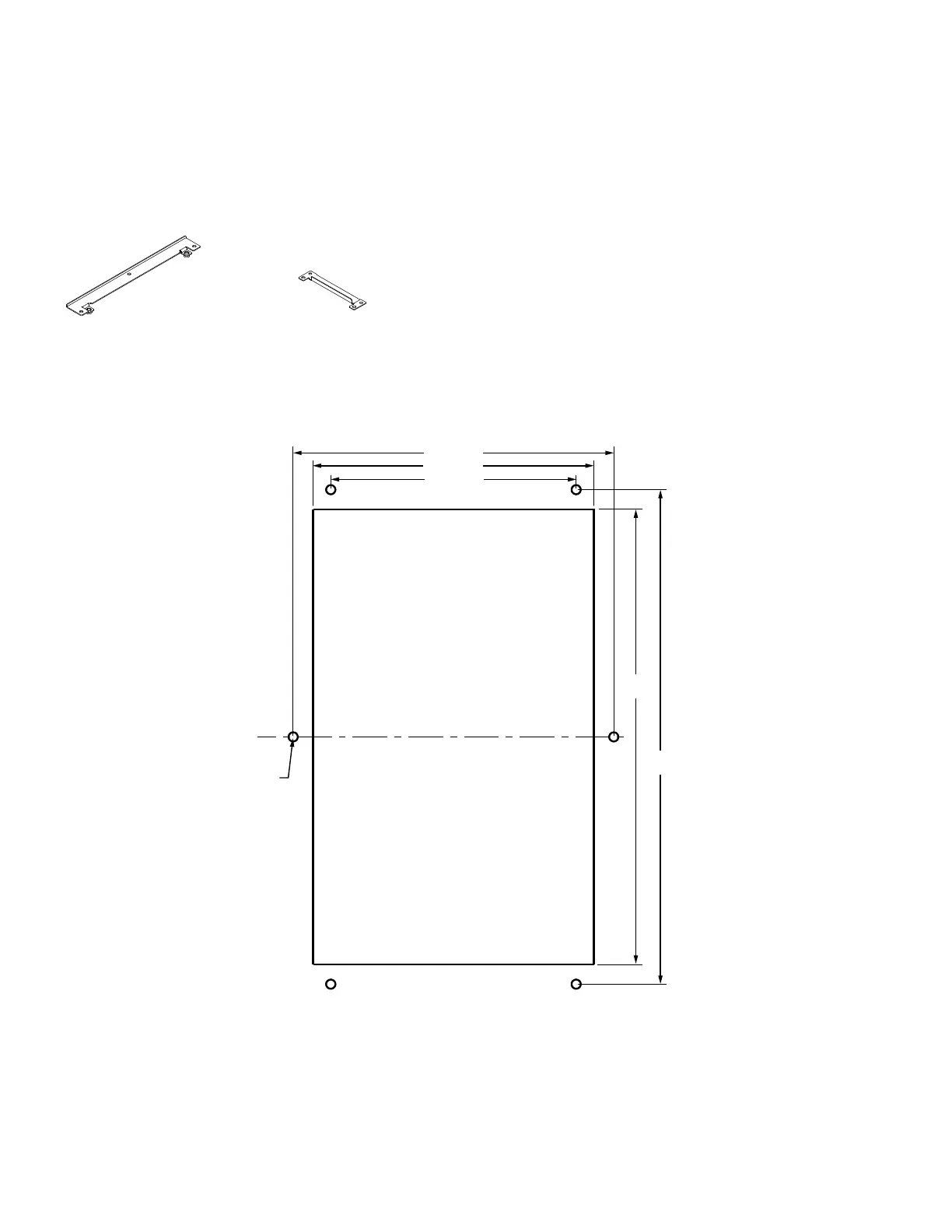

Fig. 3. Panel Cutout Diagram Frame B: Unit in in. (mm)
Flange Mounting Kit Frame B
Corresponding models: All Frame B models
M33374
M33375
Side Bracket, 2 each
Side Bracket, 2 each
Screw 1 *4 each ~ M8*P 1.25;
Screw 2*6 each ~ M6*P 1.0;
[6] M6*1.0 OR
[6] Ø17/64 (Ø7)
6-13/16 (173)
7-51/64 (198)
8-29/32 (226)
12-11/16
(322)
13-25/32
(350)
M33376
