CHAPTER 7: OPTIONAL COMPONENTS
61 63-4528—04

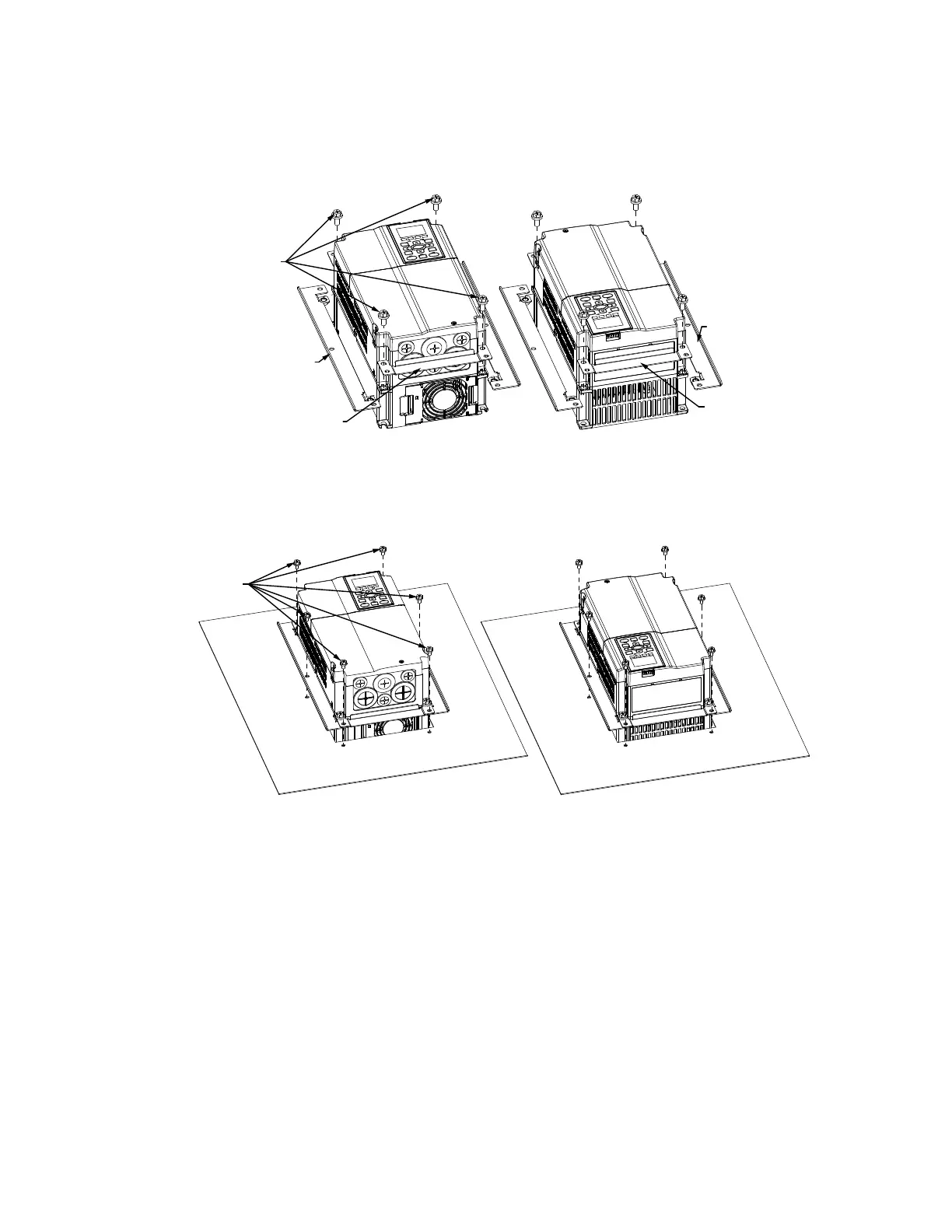

Installation of Flange Mounting Kit Frame B
1. Install side brackets using the screws provided (M8). Screw torque: 40~45kg-cm (34.7~39.0Ib-in).
(As shown in the following figure)
2. Mount VFD on the frame, using 6 screws (M6) through the side brackets and the plate, then fasten the screws.
Screw torque: 25~30kg-cm (21.7~26Ib-in). (As shown in the following figure)
M33378
SCREW 1
SIDE BRACKET
SIDE BRACKET
SIDE BRACKET
SIDE BRACKET
