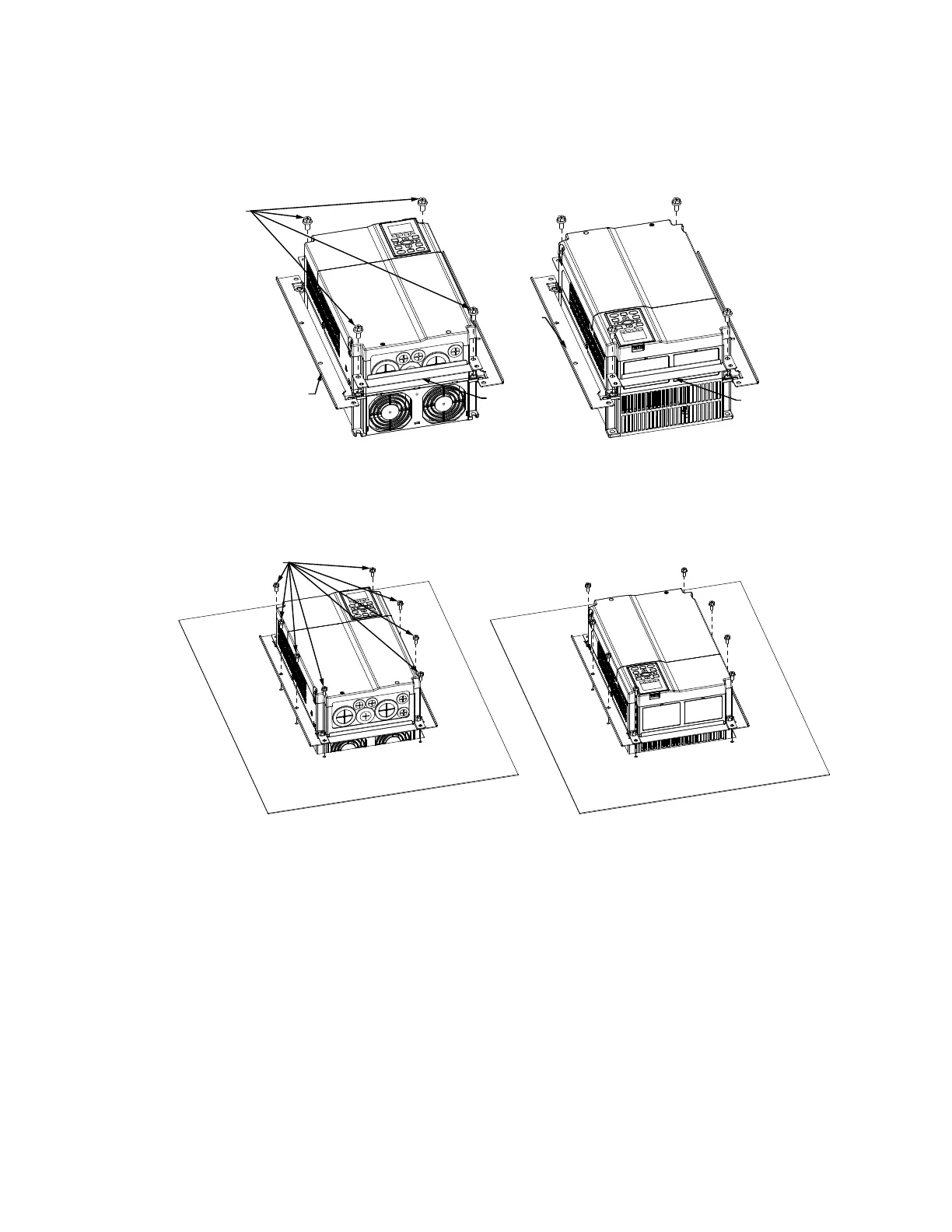

Installation of Flange Mounting Kit Frame C
1. Install side brackets by tightening 4 of the screw 1 (M8). Screw torque: 50~55kg-cm (43.4~47.7Ib-in).
(As shown in the figures below)
2. Plate installation, place 8 of the screw 2 (M6) through accessories 1 & 2 and the plate, then tighten the screws.
Screw torque: 25~30kg-cm (21.7~26.0Ib-in). (As shown in the figures below)
M33382
SCREW 1
SIDE BRACKET
SIDE BRACKET
SIDE BRACKET
SIDE BRACKET
M33383
SCREW 2
