Honeywell VFD CORE

DEVICENET COMMUNICATION CARD
79 63-4528—04

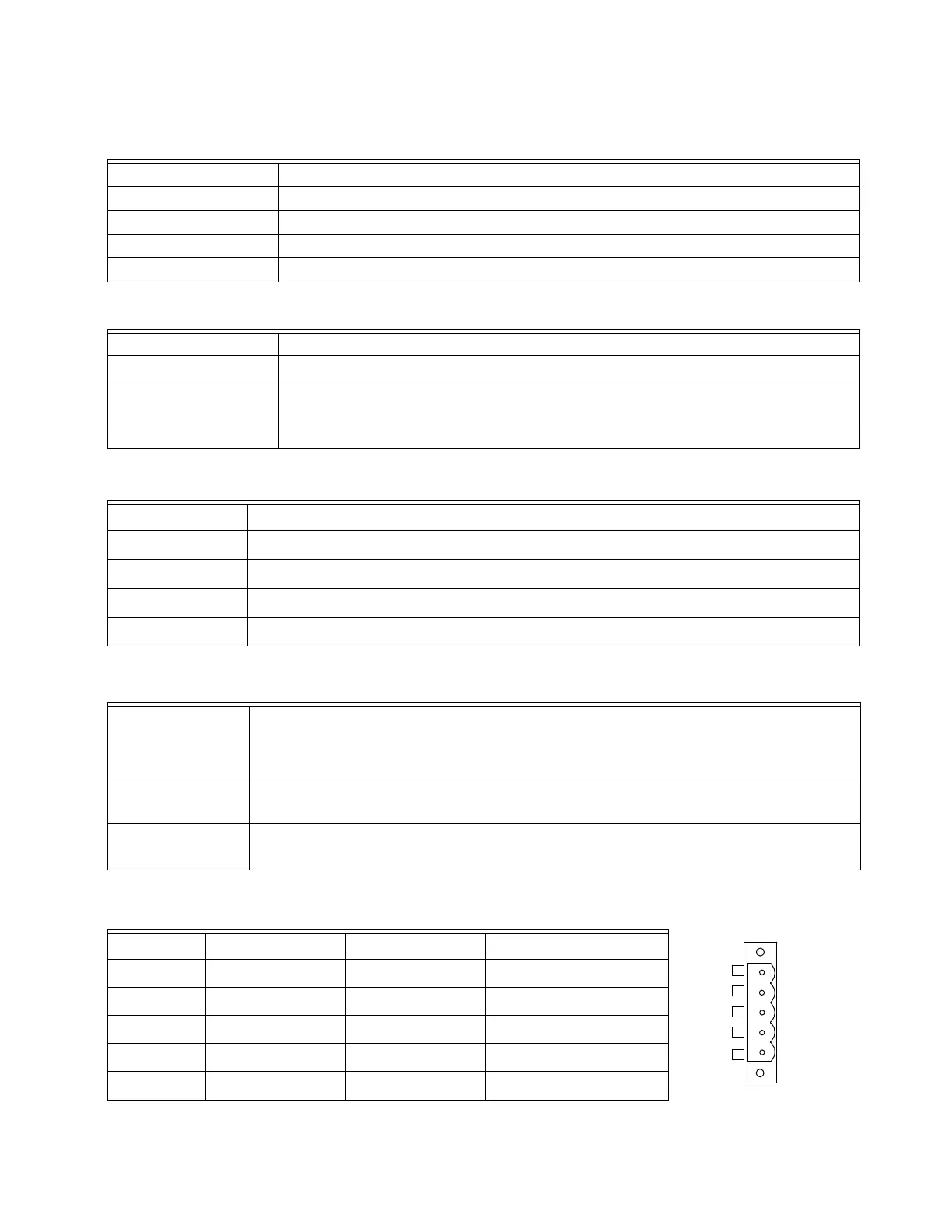

Specifications
LED Indicator & Troubleshooting
DeviceNet Connector
Interface 5-PIN open removable connector. Of 5.08mm PIN interval
Transmission method CAN
Transmission cable Shielded twisted pair cable (with 2 power cables)
Transmission speed 125kbps, 250kbps, 500kbps and extendable serial transmission speed mode
Network protocol DeviceNet protocol
VFD Connection Port
Interface 50 PIN communication terminal
Transmission method SPI communication
Terminal function
1. Communicating with VFD
2. Transmitting power supply from VFD
Communication protocol Honeywell HSSP protocol
Electrical Specifications
Power supply
5VDC (provided by VFD)
Insulation voltage 500VDC
Communication
0.85W
Power consumption 1W
Weight 23g
Environmental Specifications
Noise immunity
ESD (IEC 61800-5-1,IEC 6100-4-2)
EFT (IEC 61800-5-1,IEC 6100-4-4)
Surge Teat (IEC 61800-5-1,IEC 6100-4-5)
Conducted Susceptibility Test (IEC 61800-5-1,IEC 6100-4-6)
Operation/storage
Operation: -10ºC ~ 50ºC (temperature), 90% (humidity), pollution degree 2
Storage: -25ºC ~ 70ºC (temperature), 95% (humidity, non-condensing)
Shock/vibration
resistance
International standards: IEC61131-2, IEC68-2-6 (TEST Fc)/IEC61131-2 & IEC 68-2-27 (TEST
Ea)
DeviceNet Connector: Definition of Pins
PIN Signal Color Definition
1 V+ Red DC24V
2 H White Signal+
3S - Earth
4 L Blue Signal-
5V- Black 0V
5
4
3
2
1
M33583
