DEVICENET COMMUNICATION CARD
63-4528—04 78
DEVICENET COMMUNICATION CARD
Features
1. Based on the high-speed communication interface of Honeywell HSSP protocol, able to conduct immediate control to the
VFD.
2. Supports Group 2 only connection and polling I/O data exchange.
3. For I/O mapping, supports Max. 32 words of input and 32 words of output.
4. Supports EDS file configuration in DeviceNet configuration software.
5. Supports all baud rates on DeviceNet bus: 125kbps, 250kbps, 500kbps and extendable serial transmission speed mode.
6. Node address and serial transmission speed can be set up on VFD.
7. Power supplied from the VFD.

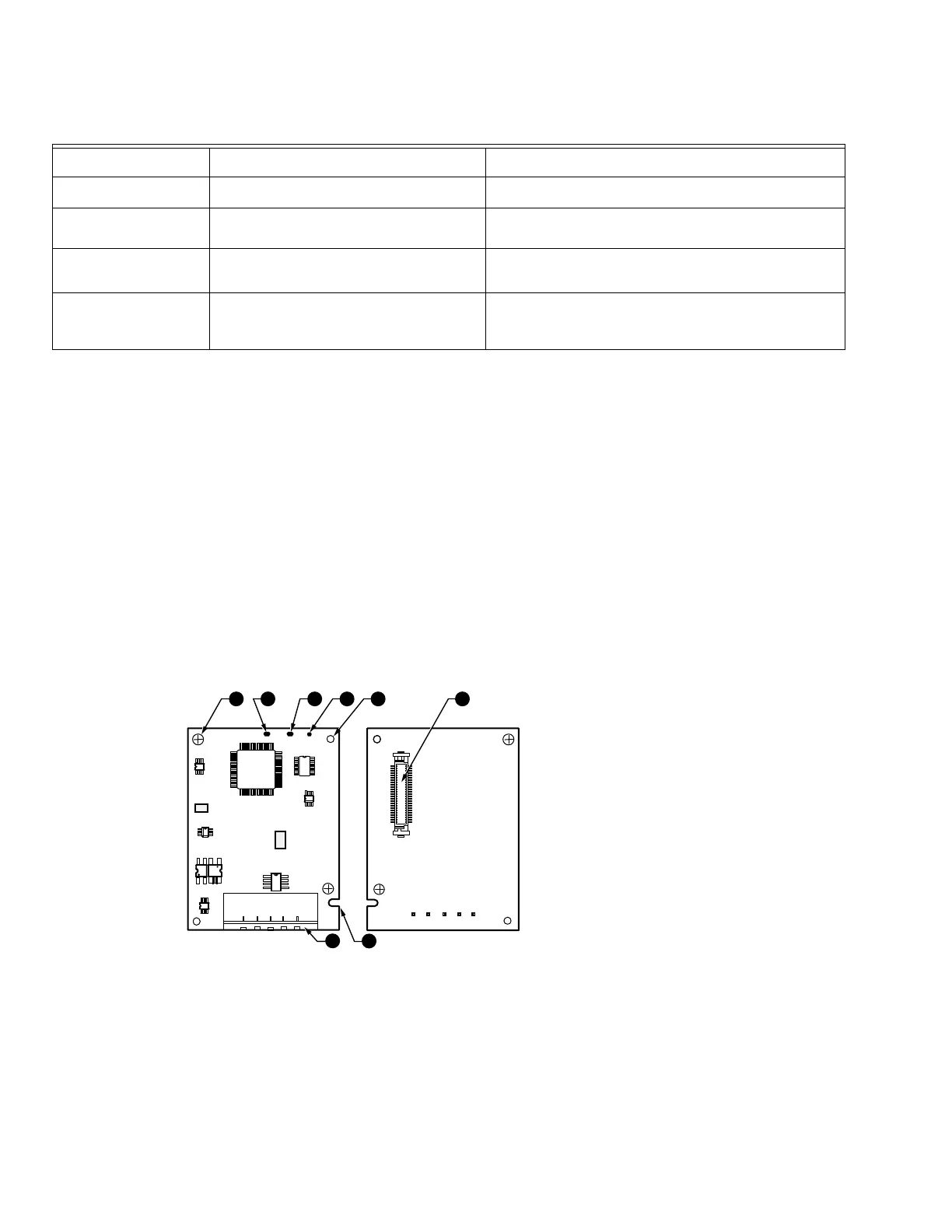

Product introduction
NET LED
LED status Indication Action
Green light on Normal status No action required
Red light on
PROFIBUS DP COMMUNICATION CARD
is not connected to PROFIBUS DP bus.
Connect PROFIBUS DP COMMUNICATION CARD to
PROFIBUS DP bus.
Red light flashes
Invalid PROFIBUS communication
address
Set the PROFIBUS address of PROFIBUS DP
COMMUNICATION CARD between 1 ~ 125 (decimal)
Orange light flashes
PROFIBUS DP COMMUNICATION CARD
fails to communication with VFD.
Switch off the power and check whether PROFIBUS DP
COMMUNICATION CARD is correctly and normally
connected to VFD.
1. NS indicator
2. MS indicator
3. POWER indicator
4. Positioning hole
5. DeviceNet connection port
6. Screw fixing hole
7. Fool-proof groove
8. VFD connection port
