Honeywell VFD CORE

ETHERNET/IP COMMUNICATION CARD
81 63-4528—04
ETHERNET/IP COMMUNICATION CARD
Features
1. Supports Modbus TCP and Ethernet/IP protocol
2. MDI/MDI-X auto-detect
3. Baud rate: 10/100Mbps auto-detect
4. VFD keypad/Ethernet configuration
5. Virtual serial port
Product Introduction
Specifications

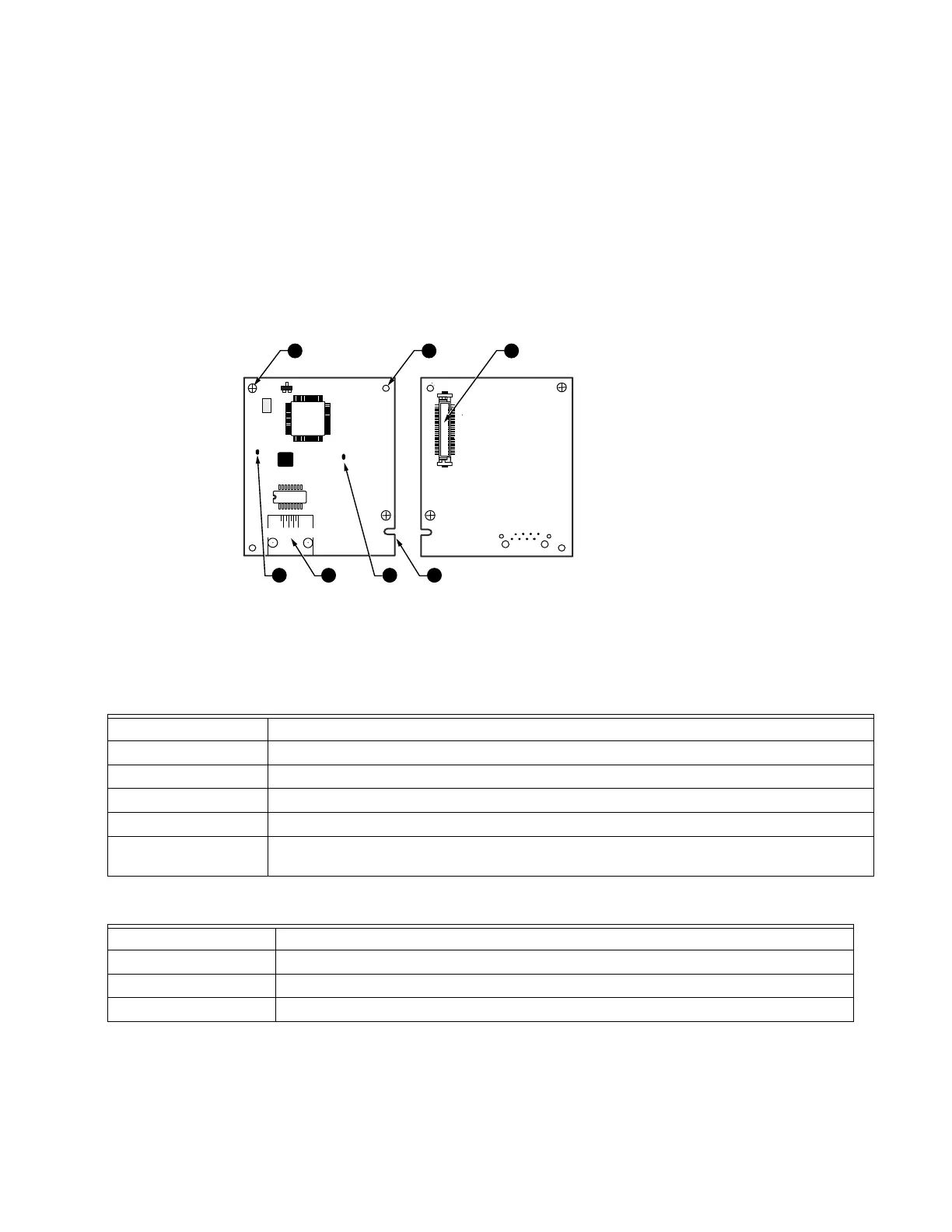

[Figure 1]
1. Screw fixing hole
2. Positioning hole
3. VFD connection port
4. LINK indicator
5. RJ-45 connection port
6. POWER indicator
7. Fool-proof groove
Network Interface
Interface RJ-45 with Auto MDI/MDIX
Number of ports 1 Port
Transmission method IEEE 802.3, IEEE 802.3u
Transmission cable Category 5e shielding 100M
Transmission speed 10/100 Mbps Auto-Detect
Network protocol
ICMP, IP, TCP, UDP, DHCP, HTTP, SMTP, MODBUS OVER TCP/IP, Ethernet/IP, Honeywell
Configuration
Electrical Specifications
Weight 25g
Insulation Voltage 500VDC
Power Consumption 0.8W
Power Supply Voltage 5VDC
