STAND KITS
Types
Free Standing Kit #46-46128
(Figure 13)
Kit Contains:
a. Stand .......................................................... Qty. 1
b. Apron ......................................................... Qty. 1
c. Screw, M3 x 6 mm ...................................... Qty. 2
d. Washer, #5 x .5 OD .................................... Qty. 2
e. Stand Anchor.............................................. Qty. 1
f. M3 x 20 mm Set Screw............................... Qty. 1
Optional
Hard Mount Accessory Kit #46-46351
(Figure 14)
This kit, used in conjunction with the stand kit
(#46-46128), can be used to hard mount (bolt)
the MS9500 to the countertop.
Kit Contains:
a. Screw, #8 Round Head .............................. Qty. 4
b. Base .......................................................... Qty. 1
Optional
Wall Mount Hanger Accessory Kit #46-46433
(Figure 15)
Kit Contains:
a. Screw #8 Round Head ............................... Qty. 2
b. Wall Mount Hanger ..................................... Qty. 1
Optional
Wall Mount Hanger Kit #46-46508
(Figure 16)
Kit Contains:
a. Wall Mount Hanger ..................................... Qty. 1
b. Wall Mount Base ....................................... Qty. 1
c. 4.8 x 13 mm, Self Tapping Screw .............. Qty. 2
d. Double-Sided Adhesive Tape .................... Qty. 1
e. #8 Wood Screw ......................................... Qty. 2
e.
d.
a.
b.
f.
c.

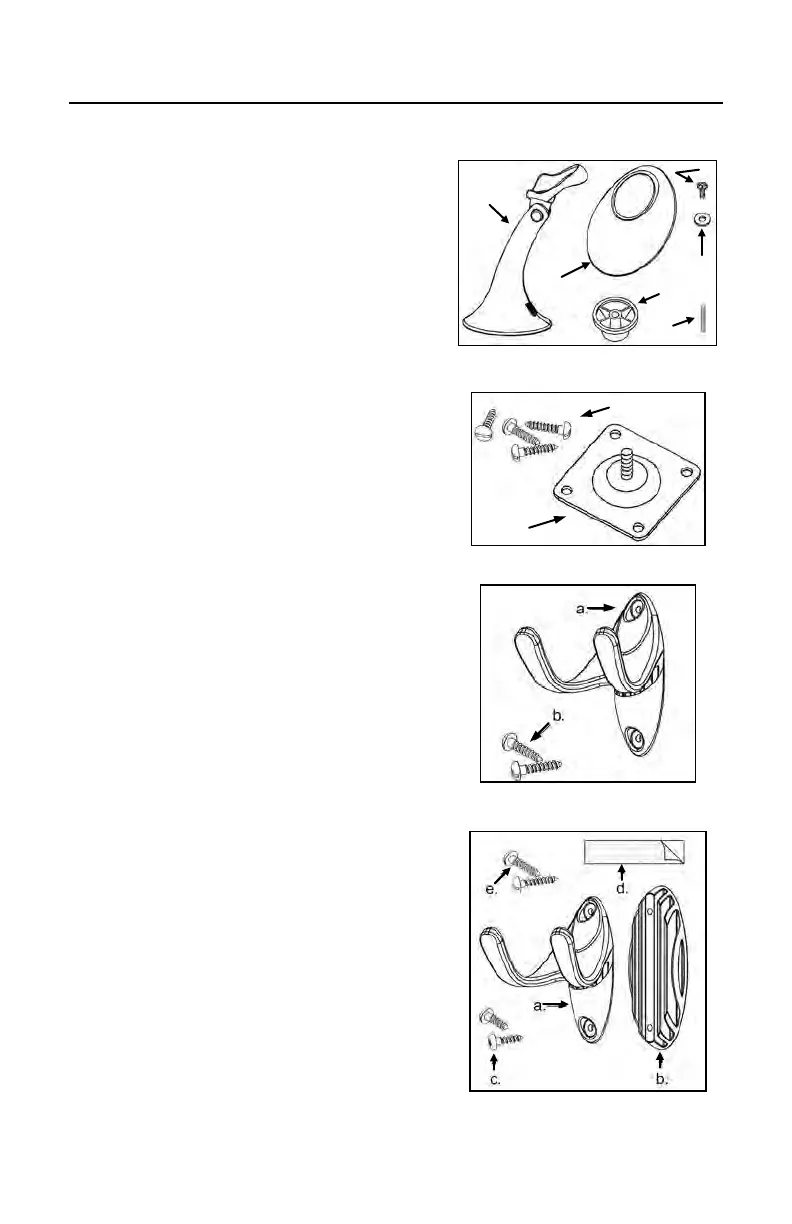

Figure 13.
a.
b
.
Figure 14.
Figure 15.
Figure 16.
